Chapter 3
Create an RSFieldbus Software Project
Create a New Strategy
This section explains how to create and maintain a control strategy. Each control
module has its own Strategy window. You can make change to a strategy in the
H1 and Process Cell windows.
Do these steps to initiate a control strategy.
1.

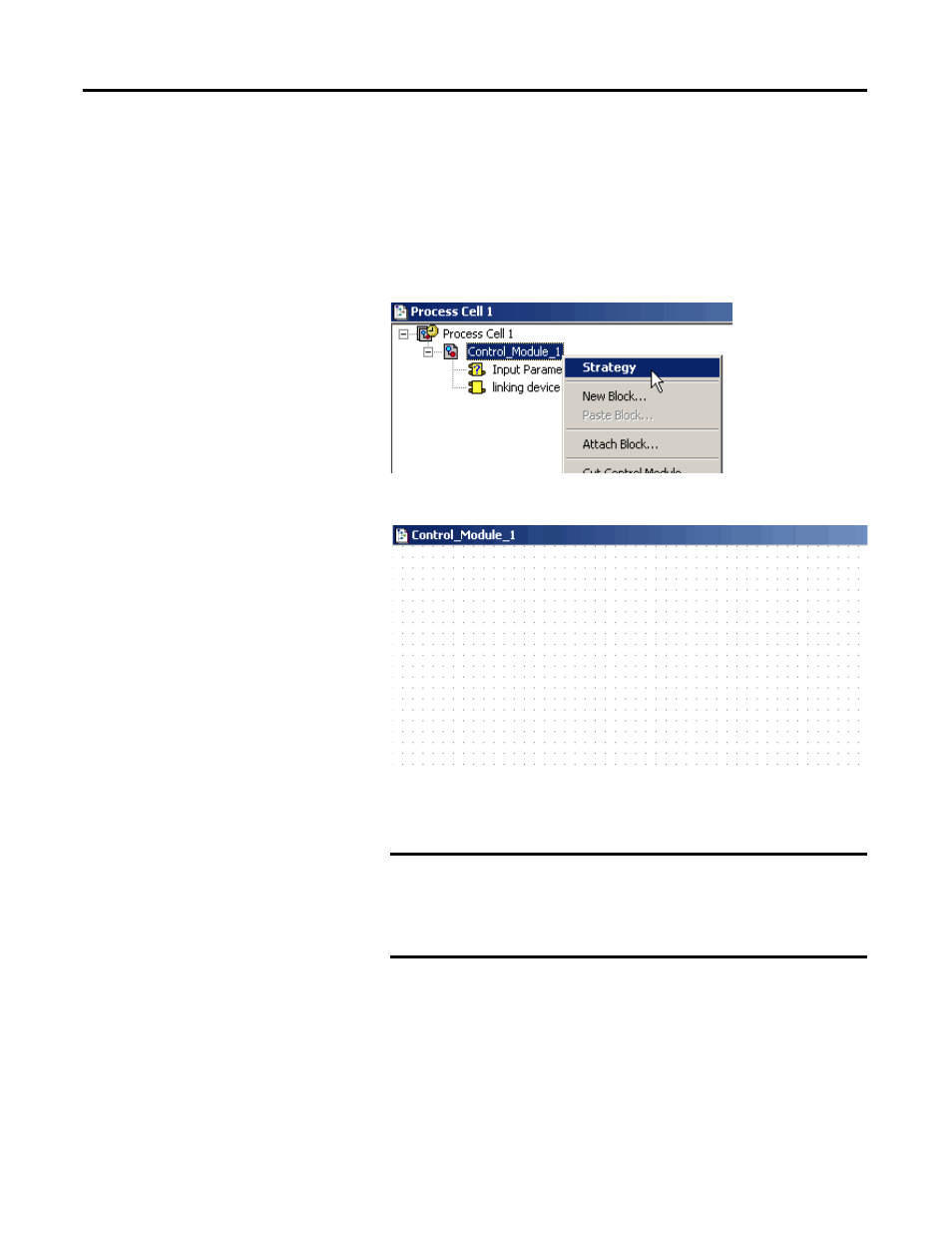

In the Process Cell window, right-click the control module icon and
choose Strategy.
The Strategy window appears.
The Strategy window is similar to graph paper to help you align the blocks
that are connected.
There are three ways to add blocks to the Strategy window:
•
Drag blocks to the Strategy window from the Process Cell window or
the Fieldbus (H1) window.
•
Create new blocks in the Strategy window.
•
Import a template.
IMPORTANT
To initially set the default shape for your new strategy blocks
(rectangle, rounded rectangle, ellipse), see the Strategy tab on
the Preferences dialog box under the ProjectFile menu. Once
blocks are added to the strategy, you cannot change them to a
different shape.
