Chapter 8 Device Web Pages
Navigate the Web Pages

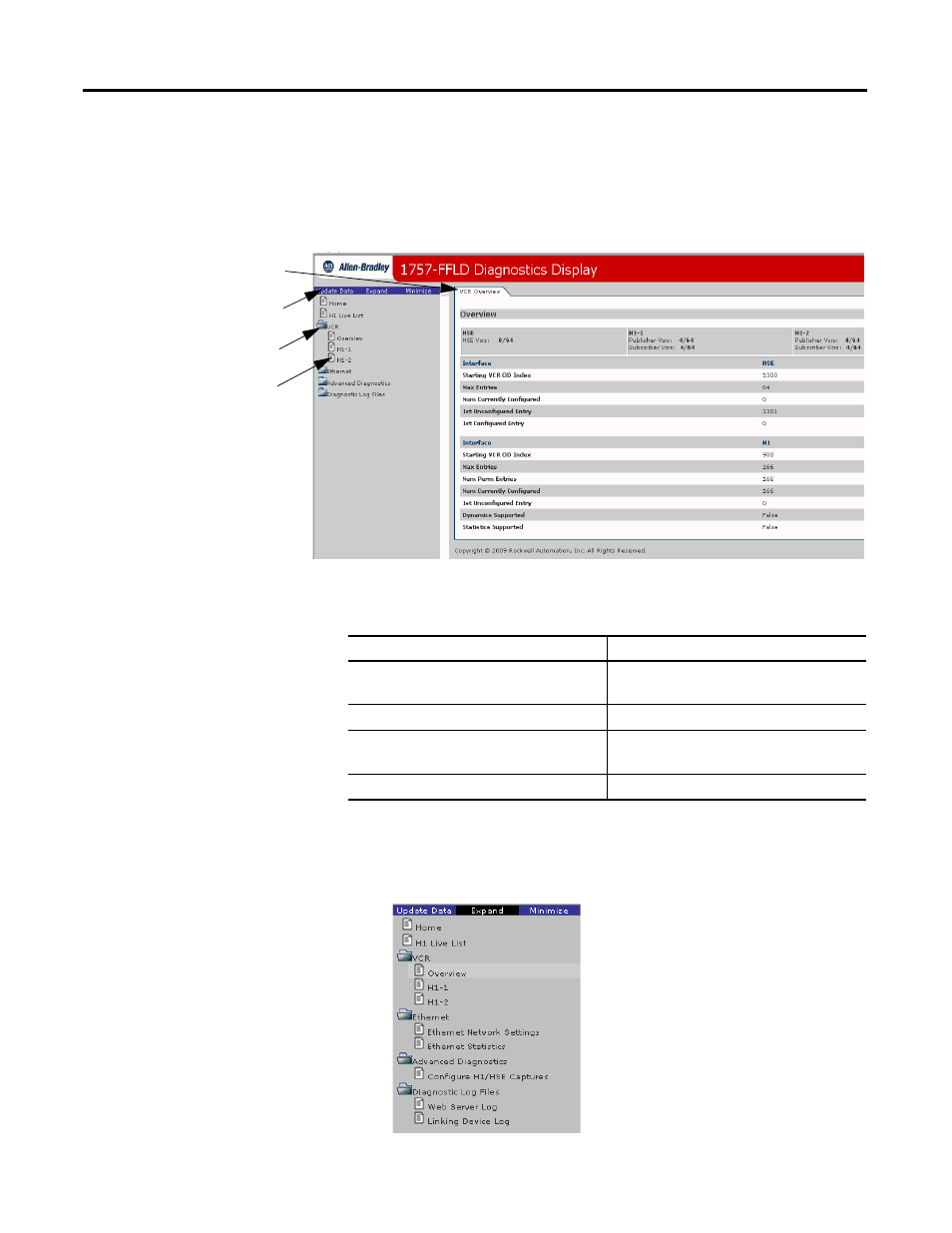

You navigate the web pages by using the navigation panel on the left of the
window. Some pages also include tabs that can be used to access pages in each
folder. Hidden pages do not contain this navigation.
Follow these steps to open and close folders.
1.
Click Expand in the upper, left-hand corner of the 1757-FFLD Diagnostic
Display dialog box to open all folders.
1
3
4
2
TIP
Examples in this section show the 1757-FFLD linking device, but the
procedures are the same for the 1757-FFLDC linking device.
Web Page Item
Description
1
Tabs across the top organize specific
information on each page
2
Updates live data on the VCR pages
3
Select folders to open and close additional
levels
4
Select a document to display a specific page
