136
Rockwell Automation Publication 1757-UM012A-EN-P - July 2011
Chapter 10 Advanced Diagnostics and Hidden Web Pages
Follow these steps to access the Capture page.
1.
On the 1757-FFLD Diagnostics Display page, click Advanced Diagnostics
in the left-side pane.
A sub-menu appears.
2.
Click Configure H1 Capture.

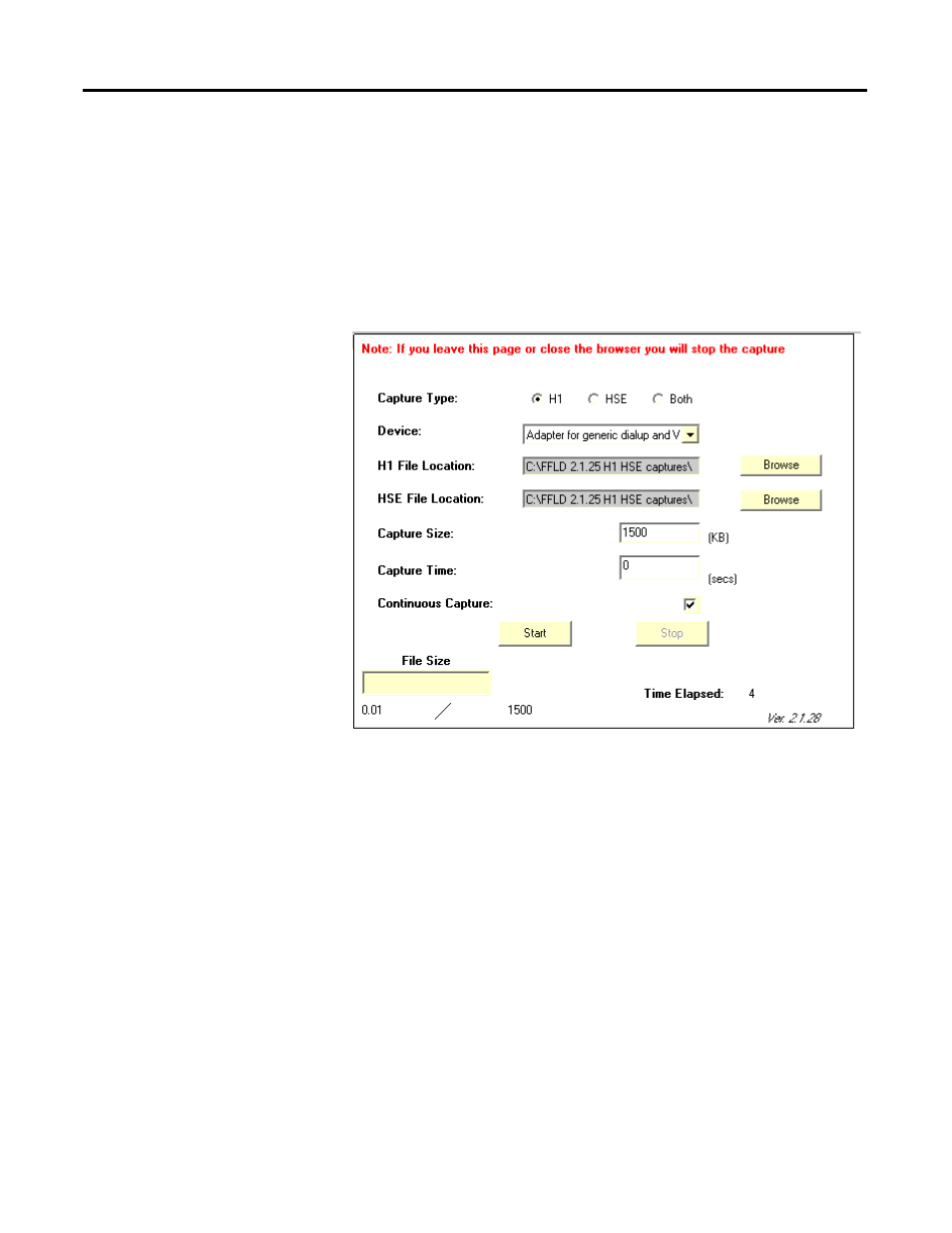

The Capture page appears.
The fields on the Capture page are described in the following pages.
Ver. 1.6.0
