Chapter 5 Create an RSLogix 5000 Software Project
7.
In the Module Definition box, click Change.

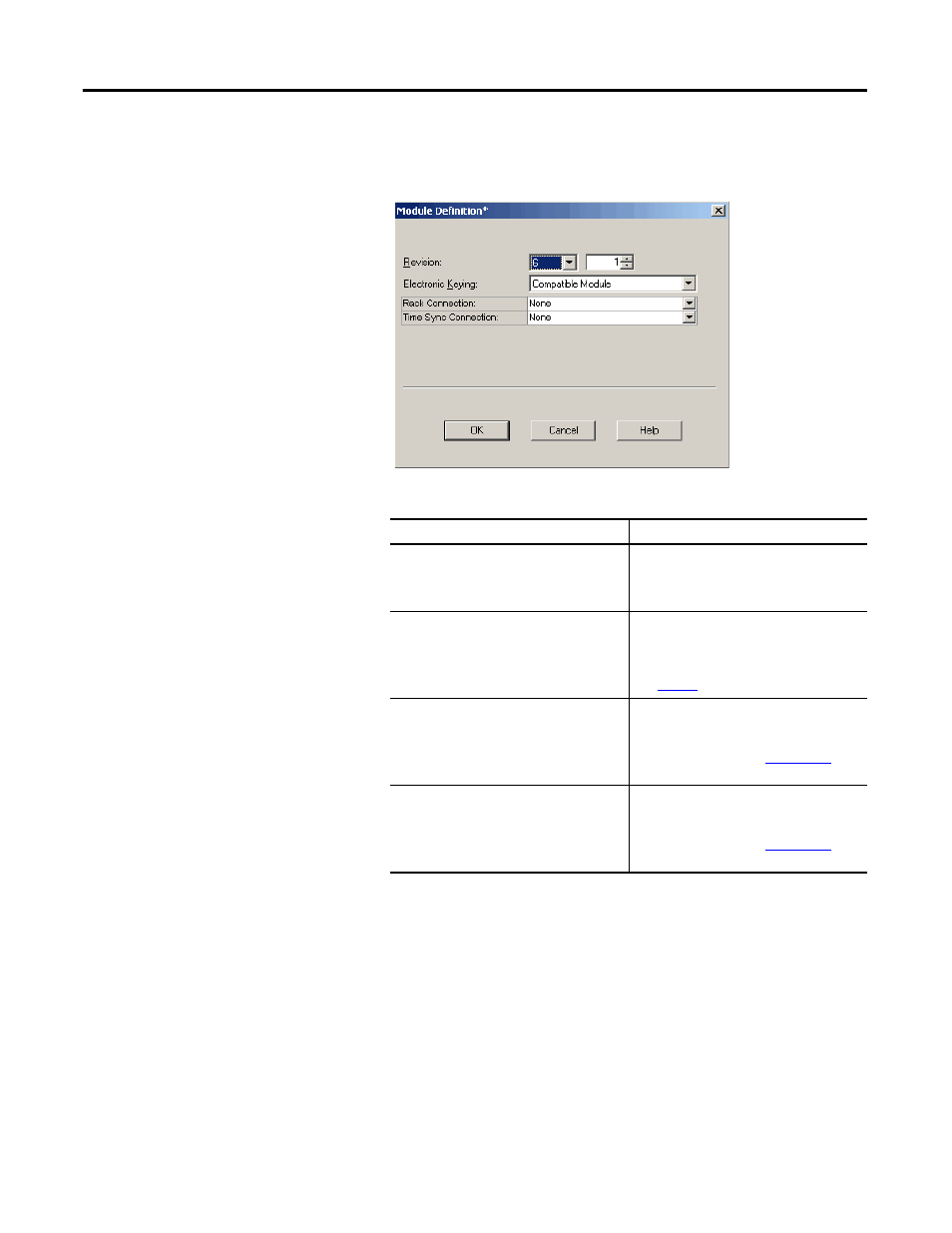

The Module Definition dialog box appears.
8.
Complete the module definition dialog box.
9.
Click OK.
Field
Description
Revision
Defaults both the Major Revision (first field)
and Minor Revision numbers. Choose the
appropriate revisions from the pull-down
menus, if necessary.
Electronic Keying
Use the default of Compatible Module or
choose Exact Match or Disable Keying from
the pull-down menu.
See
for details.
Rack Connection
Choose the rack connection.
See the ControlLogix Analog I/O Modules
User Manual, publ
,
for more information.
Time Sync Connection
Choose the time synchronization connection.
See the ControlLogix Analog I/O Modules
User Manual, publ
,
for more information.
