Chapter 4 Communication Connections

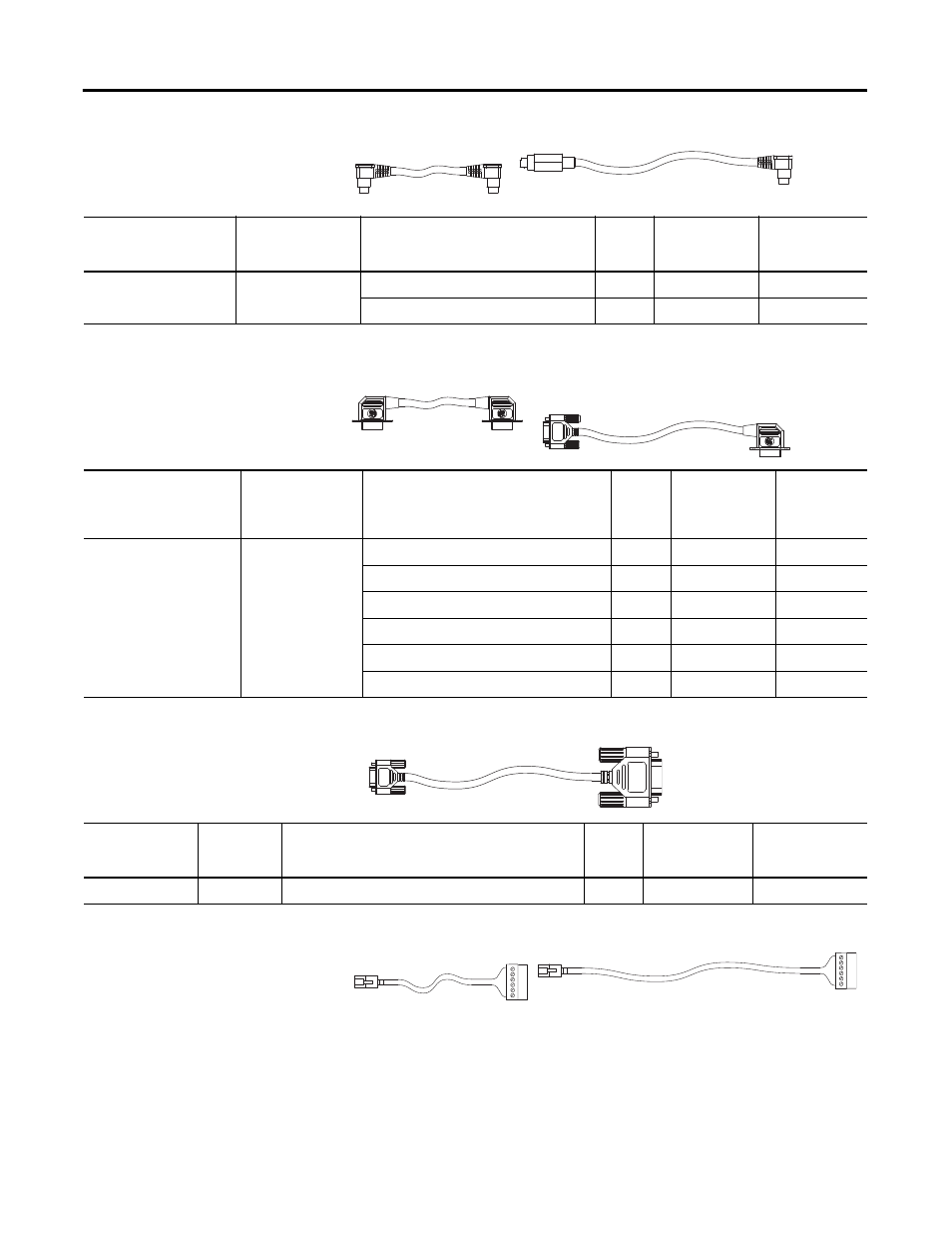

1761-CBL-HM02
(2)
1761-CBL-AM00
(2)
44601
Cable
Length
Connections from
to AIC+
External Power
Supply
Required
(1)
Power Selection
Switch Setting
1761-CBL-AM00
(2)
1761-CBL-HM02
(2)
45 cm (17.7 in.)
2 m (6.5 ft)
MicroLogix 1000, 1200, or 1500 ch 0
port 2
no
cable
to port 2 on another AIC+
port 2
yes
external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
(2)
Series C or later cables are required.
1761-CBL-AC00
1747-CP3
44602
Cable
Length
Connections from
to AIC+
External Power
Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
1747-CP3
1761-CBL-AC00
(1)
3 m (9.8 ft)
45 cm (17.7 in.)
SLC 5/03 or SLC 5/04 processor, channel 0
port 1
yes
external
PC COM port
port 1
yes
external
PanelView 550 through NULL modem adapter
port 1
yes
external
DTAM Plus / DTAM Micro™
port 1
yes
external
Port 1 on another AIC+
port 1
yes
external
MicroLogix 1400 ch 2
port 2
yes
external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
user-supplied cable
44603
Cable
Length
Connections from
to AIC+
External Power
Supply
Required
(1)
Power Selection
Switch Setting
(1)
straight 9-25 pin
—
modem or other communication device
port 1
yes
external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
1761-CBL-AS03
1761-CBL-AS09
44604
