Rockwell Automation 1766-Lxxxx MicroLogix 1400 Programmable Controllers User Manual User Manual
Page 264
224
Rockwell Automation Publication 1766-UM001H-EN-P - May 2014
Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)
This file number is used to define default variations in a response to a Class 0 poll
request.
The value of this parameter is N file only. Valid range is 0, 7, 9 to 255. Default
value is 0.
In RSLogix 500/RSLogix Micro software, when this parameter is configured
properly, you can see a DNP3 Default Variation Config File tree in Channel
Configuration.

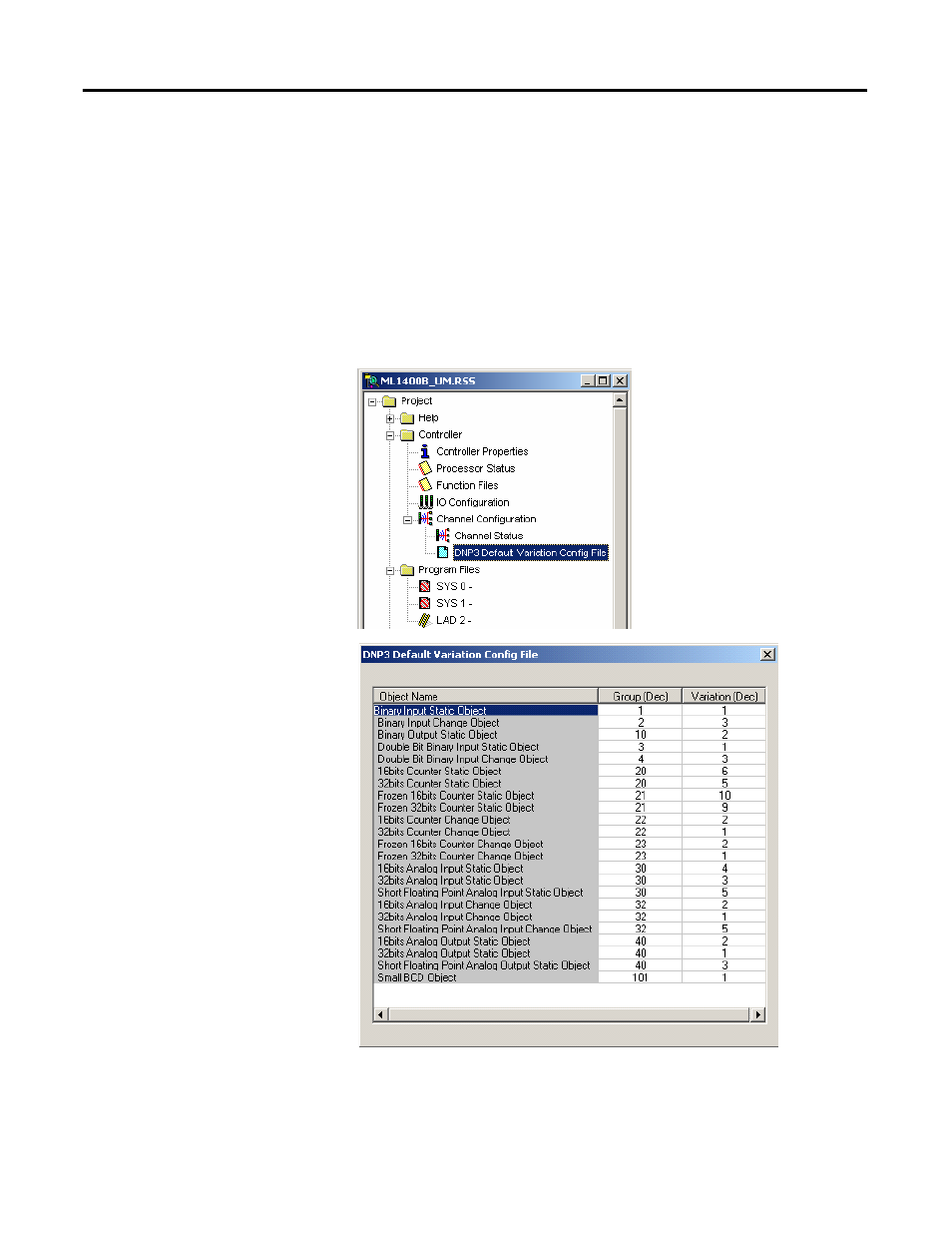

The following table shows the structure of the DNP3 Default Variation
Configuration File.
