Rockwell Automation Publication 1766-UM001H-EN-P - May 2014 3
Hardware Overview Chapter 1

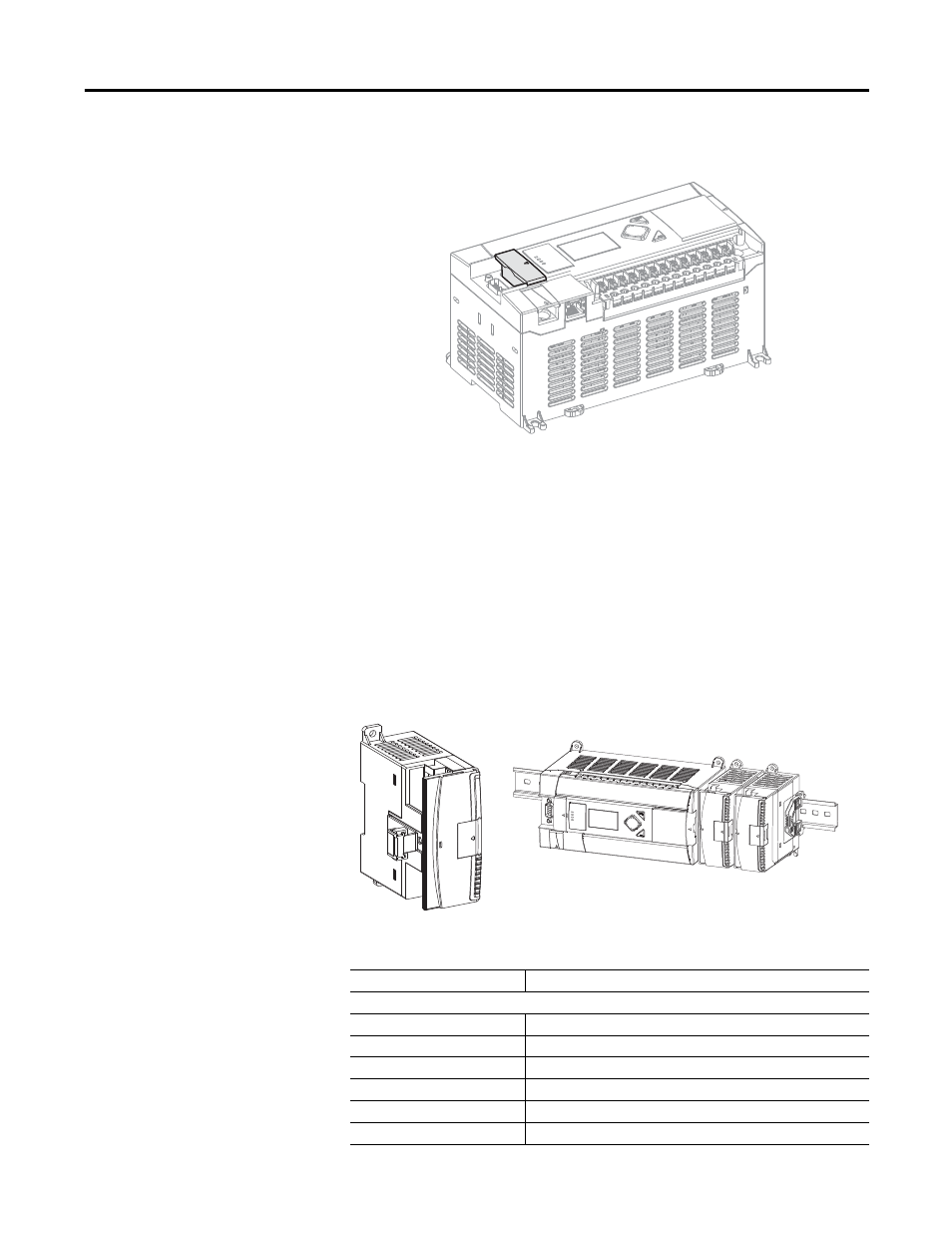

Figure 1 - 1766-MM1 Memory Module
1762 Expansion I/O
1762 expansion I/O can be connected to the MicroLogix 1400 controller, as
shown below.
Figure 2 - 1762 Expansion I/O
TIP A maximum of seven I/O modules, in any combination, can be
connected to a controller. See Appendix H to determine how much
heat a certain combination generates.
Expansion I/O
Catalog Number Description
Digital
1762-IA8 8-Point 120V AC Input Module
1762-IQ8 8-Point Sink/Source 24V DC Input Module
1762-IQ16 16-Point Sink/Source 24V DC Input Module
1762-IQ32T 32-Point Sink/Source 24V DC Input Module
1762-OA8 8-Point 120/240V AC Triac Output Module
1762-OB8 8-Point Sourcing 24V DC Output Module
Module
Memory
44536
1762 Expansion I/O 1762 Expansion I/O Connected to MicroLogix 1400 Controller
44563 44581
