20
Rockwell Automation Publication 1766-UM001H-EN-P - May 2014
Chapter 2 Install Your Controller

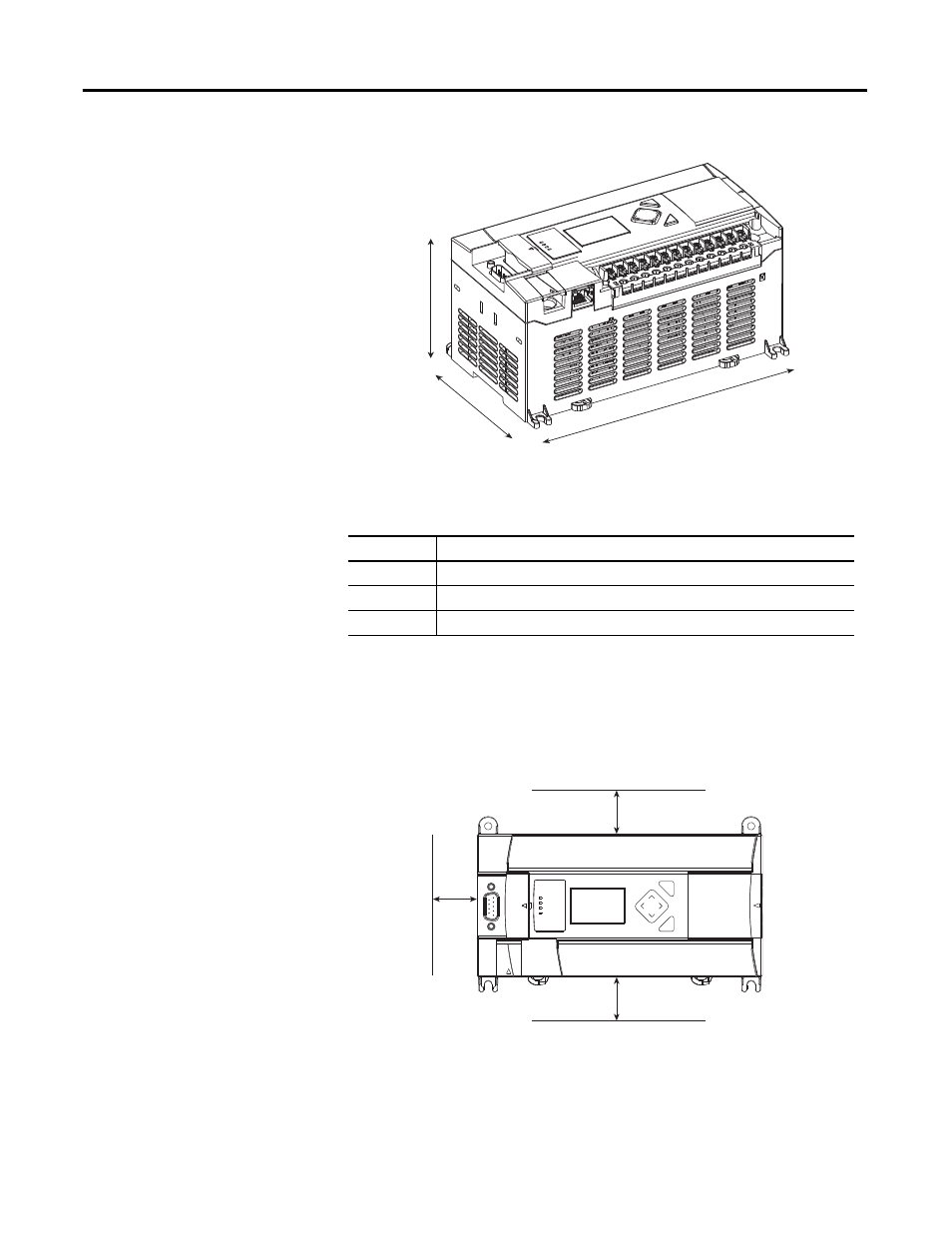

Controller Mounting
Dimensions
Controller and Expansion
I/O Spacing
The controller mounts horizontally, with the expansion I/O extending to the
right of the controller. Allow 50 mm (2 in.) of space on all sides of the controller
system for adequate ventilation. Maintain spacing from enclosure walls, wireways,
adjacent equipment, and so on, as shown below.
Mounting the Controller
MicroLogix 1400 controllers are suitable for use in an industrial environment
when installed in accordance with these instructions. Specifically, this equipment
Dimension
Measurement
A
90 mm (3.5 in.)
B
180 mm (7.087 in.)
C
87 mm (3.43 in.)
C
B
A
1766-L32BWA, 1766-L32AWA, 1766-L32BXB, 1766-L32BWAA,
1766-L32AWAA, 1766-L32BXBA
44516
ESC
OK
Top
Bottom
Side
44517
