Page 299

Rockwell Automation Publication 1766-UM001H-EN-P - May 2014
259
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

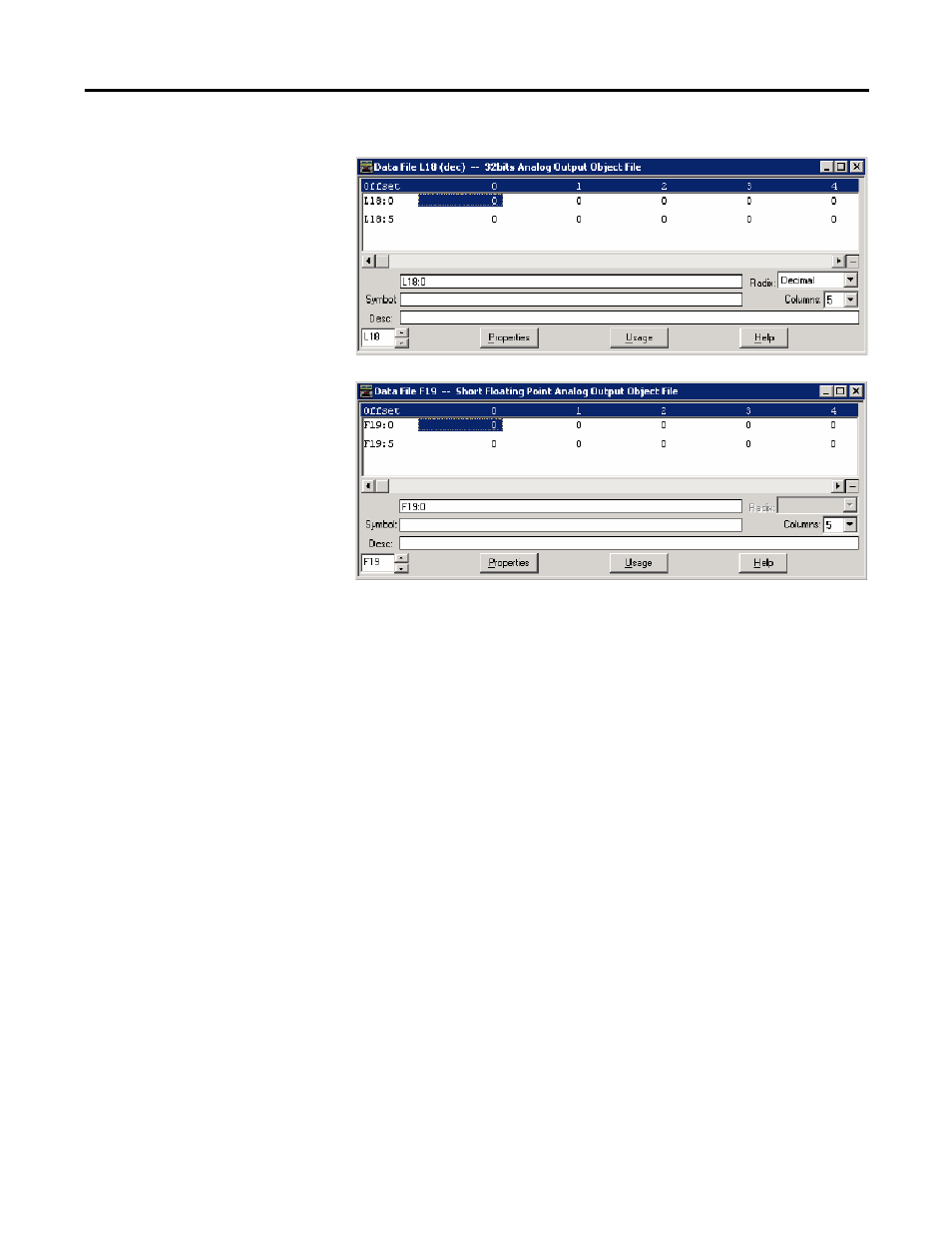

Analog Output Command - Control analog output block (AOB)
When the controller is in Non-Executing mode, the MicroLogix 1400 will not
accept an Analog Output Command. The MicroLogix 1400 returns a Control
Status Code 7 in the response. To access the objects 41(AOB), the controller
mode should be in Executing mode.
Note that Executing mode includes Run, Remote Run, Test Continuous Scan,
and Test Single Scan modes. Any other modes are Non-Executing modes.
DNP3 BCD Object
The supported object group and variations are as below.
Numeric Static Objects:
• g101v1 - Binary-Coded Decimal Integer - Small
Related Object File Number:
• Small BCD Object File Number
Related Configuration File Number:
• Small BCD Config File Number
