Diagnostics for ethernet channel (channel 1) – Rockwell Automation 1766-Lxxxx MicroLogix 1400 Programmable Controllers User Manual User Manual
Page 343

Rockwell Automation Publication 1766-UM001H-EN-P - May 2014
303
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

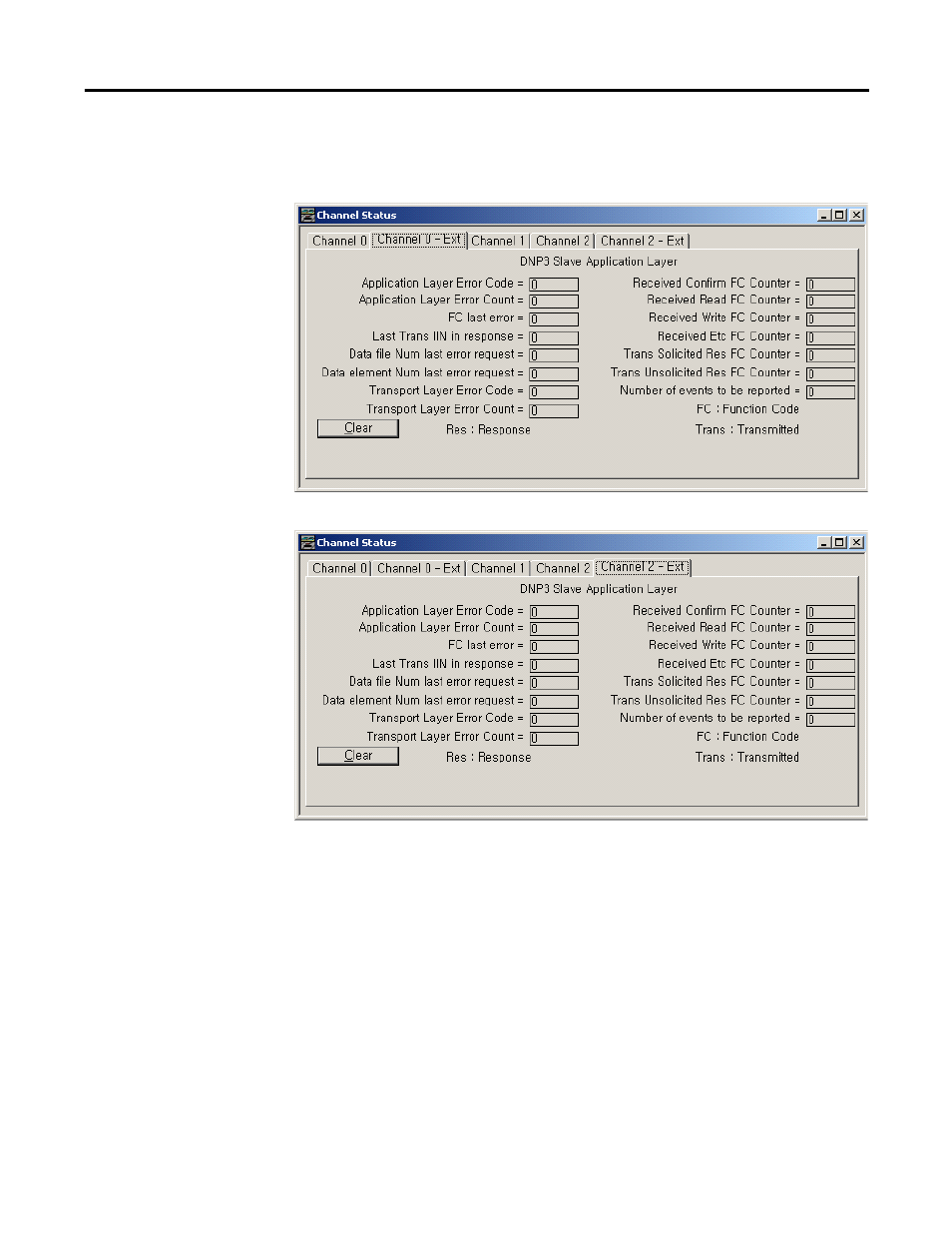

For the elements of the DNP3 Slave Application Layer diagnostic counter
CS0:55 to CS0:69 and CS2:55 to CS2:69, the counter values are available with
the structured display in RSLogix 500/RSLogix Micro software as below.
Diagnostics for Ethernet Channel (Channel 1)
This feature is supported only in MicroLogix 1400 Series B controllers.
Diagnostic Counters and Errors in DNP3 Slave subsystem for the Ethernet
channel are logged in the Data File. The data file is configured in the parameter
