CE Conformity C–3

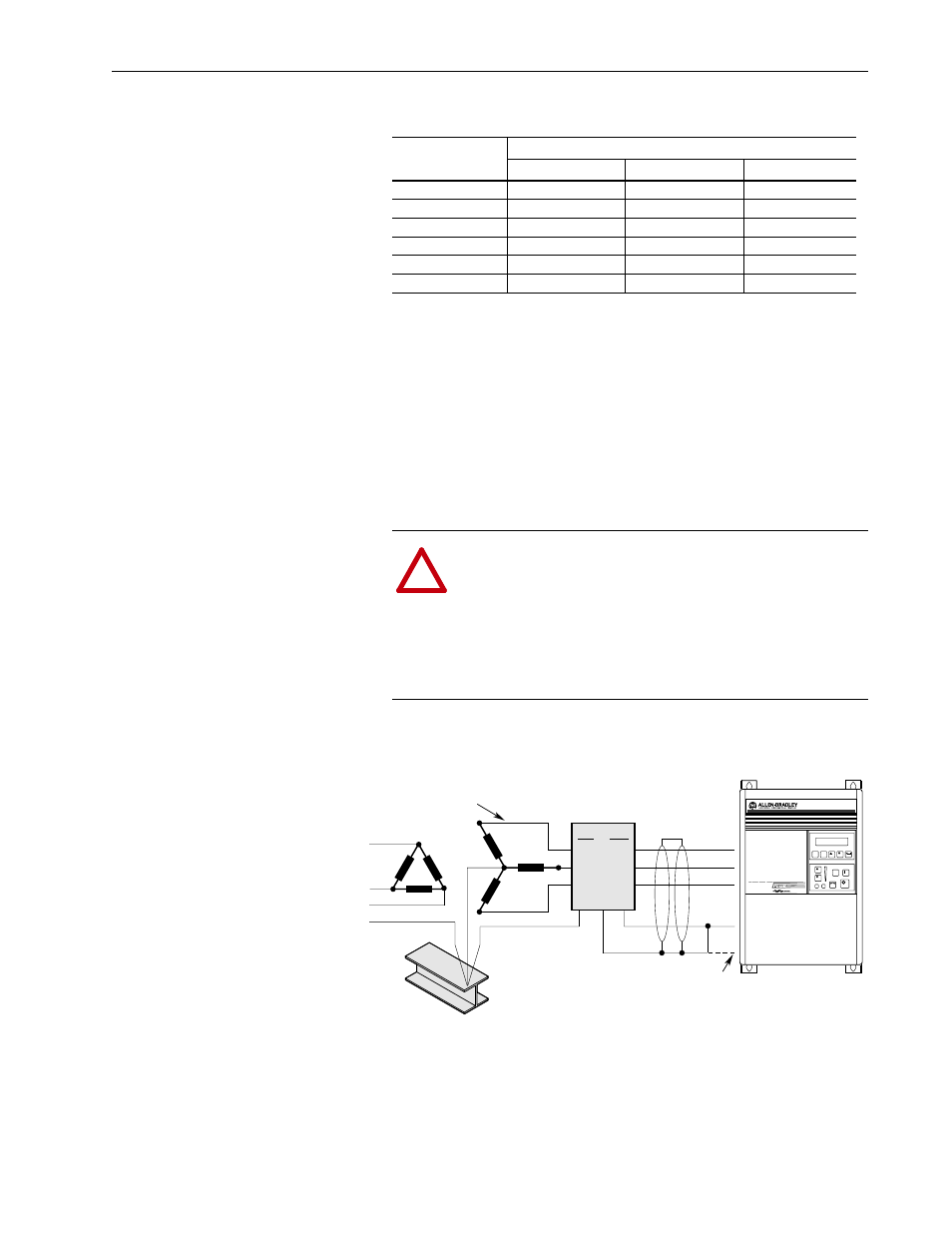

EMC Enclosure Kit Selection
RFI Filter Installation
Important: Refer to the instructions supplied with the filter for details.
The RFI filter must be connected between the incoming AC supply
line and the drive input terminals.
RFI Filter Leakage Current
The RFI filter may cause ground leakage currents. Therefore a solid
ground connection must be provided as shown below.
Electrical Configuration
Frame Reference
Enclosure Kit Catalog Number
200-240V Rating 380-480V Rating 500-600V Rating
A1, A2, A3 1336F-AE3 1336F-AE3 –
A4 1336F-AE2 1336F-AE2 1336F-AE2
B 1336F-AE4 1336F-AE4 1336F-AE4
C 1336F-AE5 1336F-AE5 1336F-AE5
D 1336F-AE6 1336F-AE6 1336F-AE6
E 1336F-AE7 1336F-AE7 1336F-AE7
!
ATTENTION: To guard against possible equipment
damage, RFI filters can only be used with AC supplies that
are nominally balanced and grounded with respect to
ground. In some installations, three-phase supplies are
occasionally connected in a 3-wire configuration with one
phase grounded (Grounded Delta). The filter must not be
used in Grounded Delta supplies.
JOG
ESC SEL
R (L1)
S (L2)
T (L3)
L1
Line
L2
L3
E
L1'
Load
L2'
L3'
E'
PE
Conduit/4-Wire Cable
RFI Filter
Shield Terminated in Cable
Clamp on A Frame Drives
Nearest
Building Structure Steel
