Page 180
B–6
Dimensions

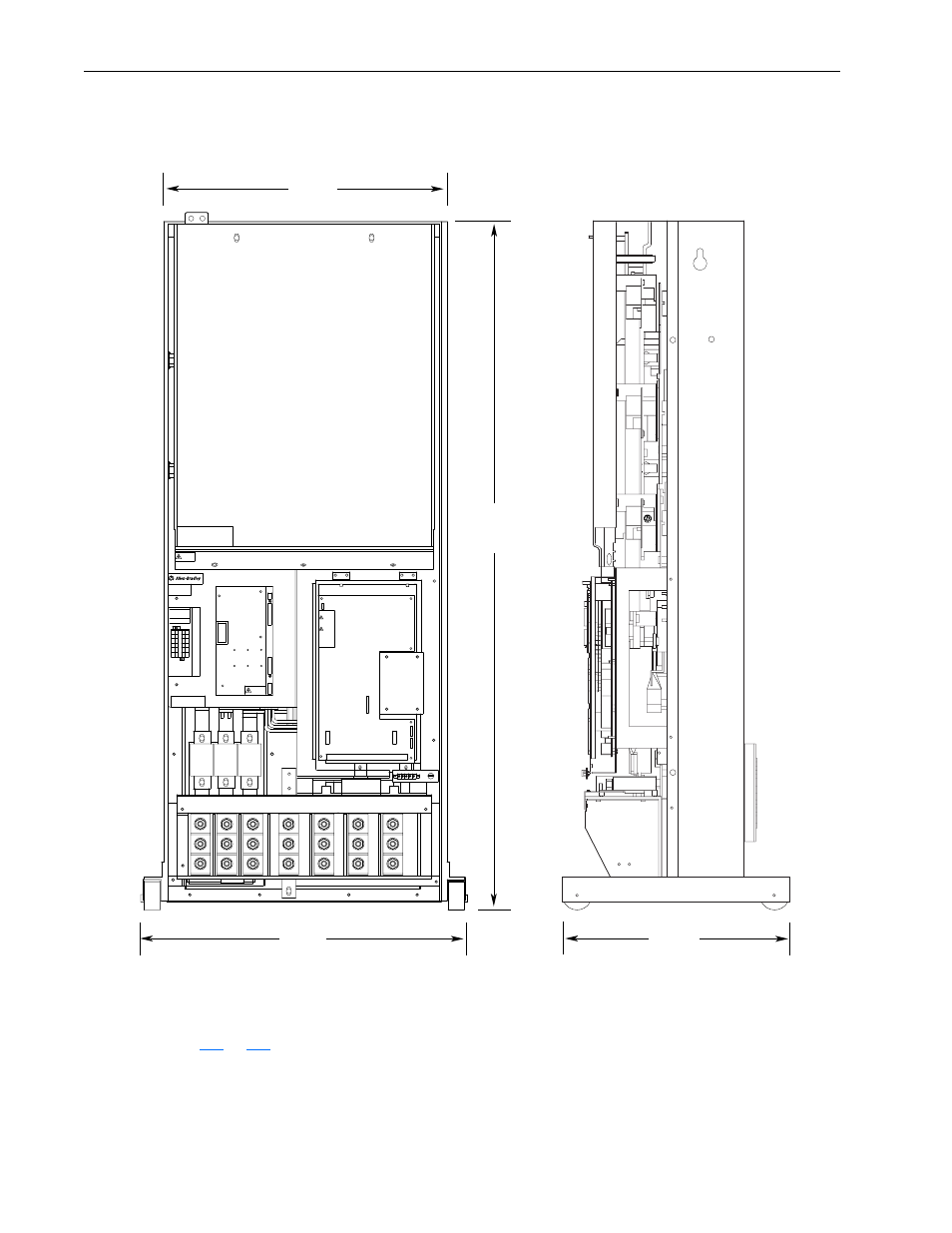

Open Dimensions - Frame F “Roll-In” Chassis
DANGER
DANGER
DANGER
DANGER
DANGER
DANGER
T-L3
R-L1
S-L2
W-M3
TE
U-M1
PE
V-M2
717.6
(28.25)
463.6
(18.25)
635.0
(25.00)
1543.3
(60.76)
All Dimensions in Millimeters and (Inches)
Notes:
1
Enclosure dimensions needed to accommodate the drive are 2286 (H) x 889 (W) x 508 (D) mm (90 x 35 x 20 in.), nominal.
2
A 1200 CFM (minimum) enclosure ventilating fan must be user supplied and installed.
3
Refer to pages
for drive and inductor mounting information.
