Chapter 2
Hardware Description
1 – 30 HP, 230VAC 2 – 60 HP, 460VAC
2-10
Main Control Board The Main Control Board (Figure 2.8) performs all control functions of the
1395 drive. Hardware located on the board is used to support operation of
the microprocessor firmware. The primary functions performed include:
•
Microbus interface.
•
Control Firmware
•
Analog signal interface
•
Develop gate firing signals sent to the PSI/Switcher Board

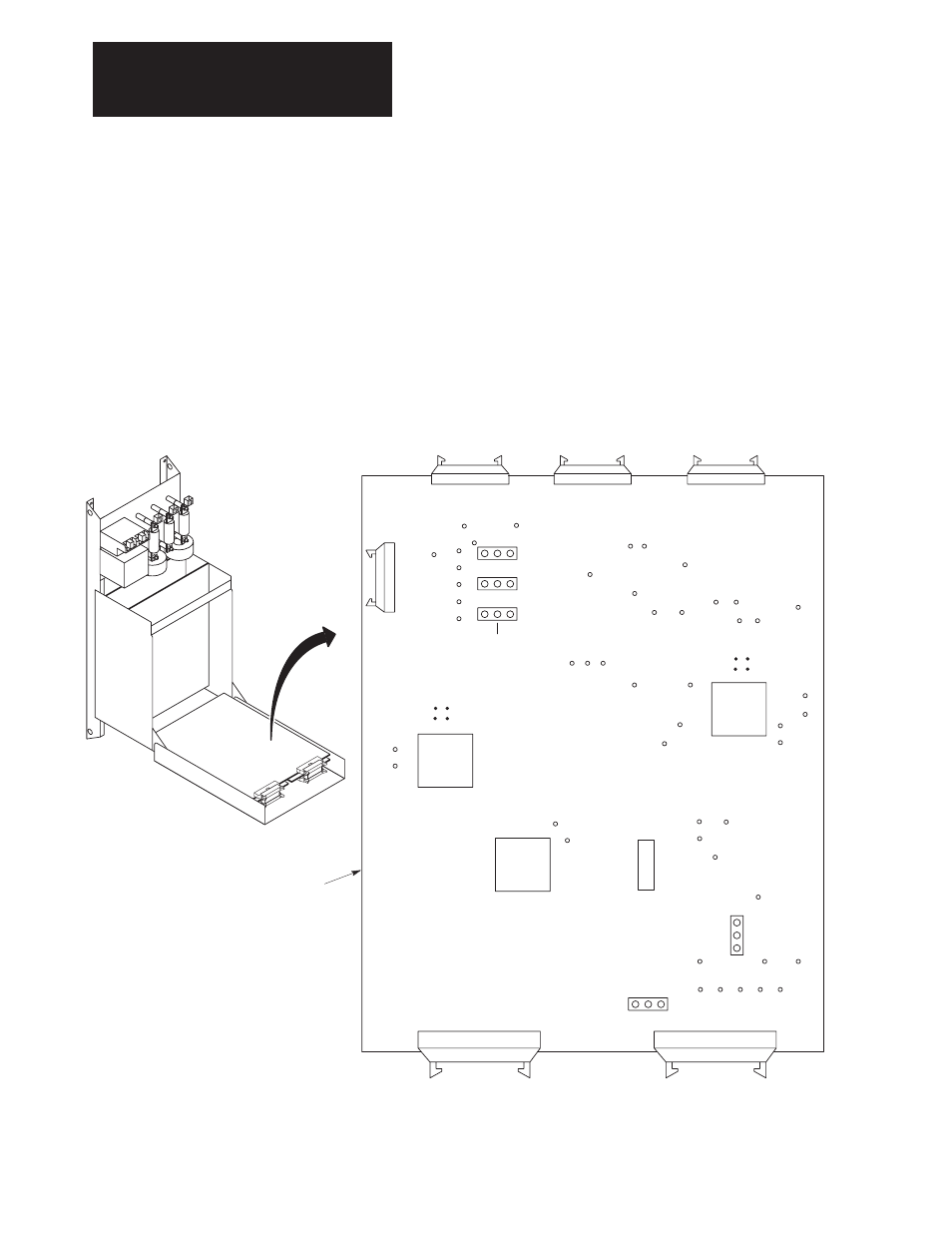

Figure 2.8
Main Control Board Hardware Location
AB0665A
Main Control
Board
J2 J4 J5
J10
J14
J6 J7
J9
J8
Connection to Power Connection to Connection To Power
Connection
Port A Port B
TP11 TP12
TP13
TP15
TP23
TP24
TP9 TP6
TP21
TP25
TP33
TP17 TP8 TP39
TP38 TP30
TP43
TP1
TP45
TP42
TP50
TP46
TP47 TP44
TP49
TP58
TP54
TP51
+5V –12V+12V DGND AGND
TP52 TP56TP55 TP57
ISO+12V ISO+5V IGND
TP53 TP58
TP20
TP41
TP19
TP10
TP20
CP
VP
SP
TP34
TP27 TP26
TP31 TP29
TP28
TP32
TP35
1
1
2
3
2 3
1 2 3
1 2 3
TP2 TP5
To
Encoder
Stage Interface Board Programming Terminal Stage Interface Board
(To Adapter Board) (To Adapter Board)
J15
1 2 3
UMC8
IMPORTANT: Do not install jumpers on
J12, J13, J15
Encoder
Voltage
Selection
5V 12V
J1
J12
1 2
3 4
J13
1 2
3 4
