Using Multi-Drive Mode

7-23

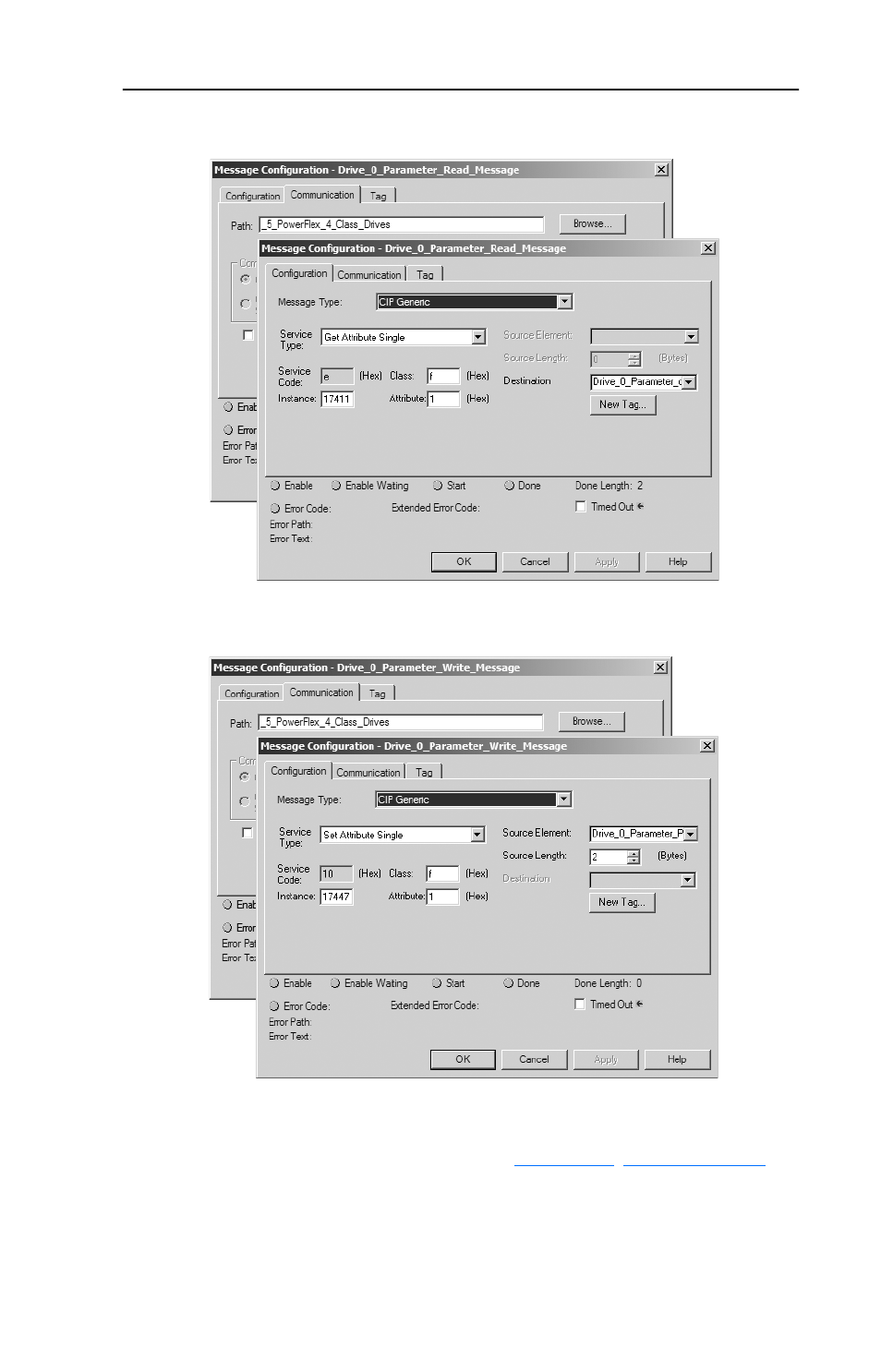

Figure 7.15 ControlLogix Parameter Read Message Configuration

Figure 7.16 ControlLogix Parameter Write Message Configuration

The Class Code is “ f ” for the CIP Parameter Object and the Attribute is
“1” to select the parameter value. See

for

more information. The Instance value is “17411” to access parameter
d003 - [Output Current] and “17447” to access parameter P039 - [Accel
Time 1].
