Configuring the I/O 4-11
5. Select Network > Enable Edits. If the bridge has a different I/O
configuration than the configuration now being saved, the Online /
Offline mismatch dialog box (
Figure 4.14 ) will appear.

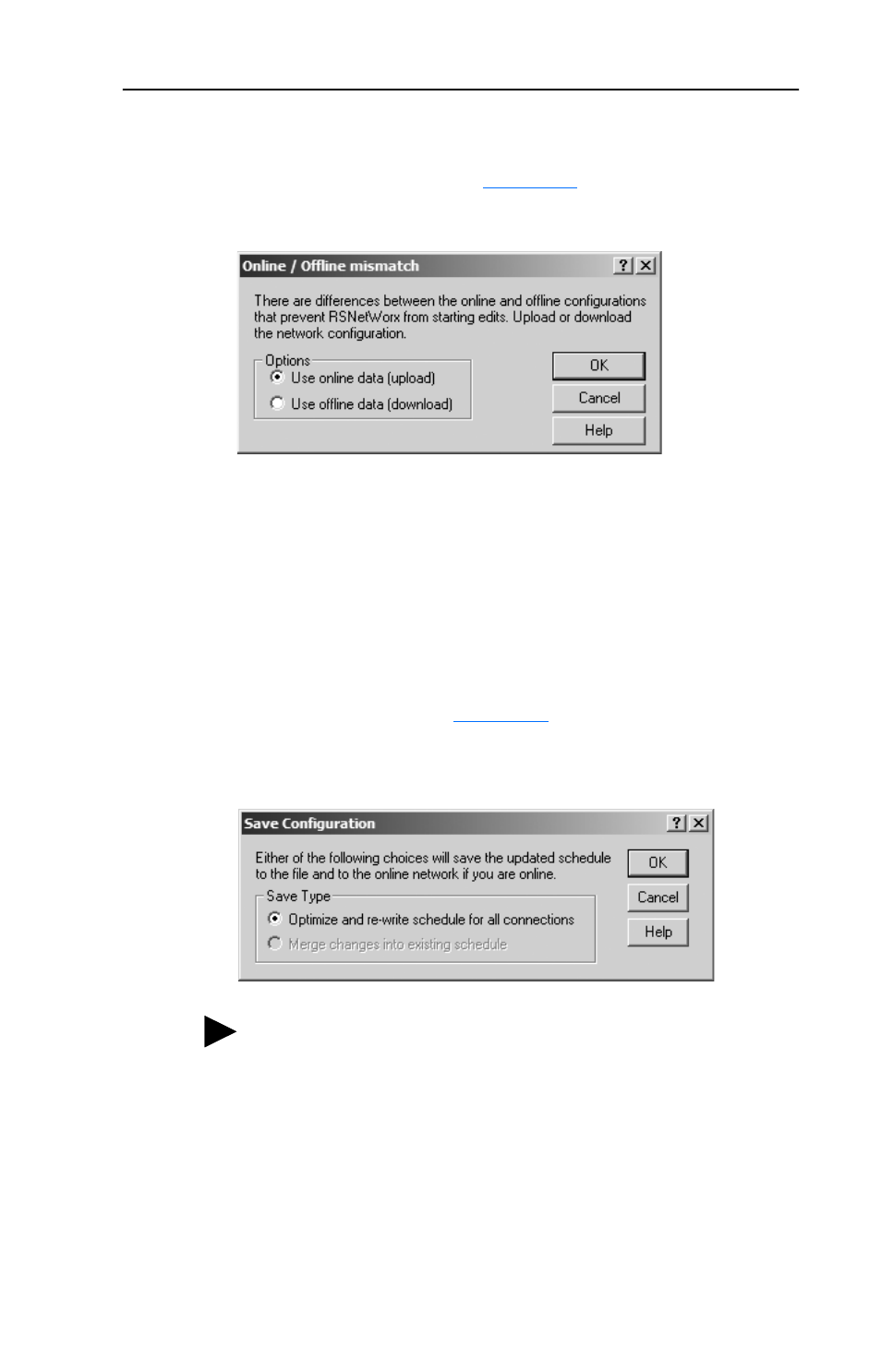

Figure 4.14 Online / Offline mismatch Dialog Box
When both radio button choices are available, use the preselected
default “Use online data (upload).” When this choice is unavailable
(grayed out), you must select “Use offline data (download).” Then
click OK.
6. Select File > Save to save the I/O configuration file to the computer.
If this is the first time that you saved the project, the Save As dialog
box appears. Navigate to a folder, type a file name, and click Save to
save the configuration to a file on your computer. The Save
Configuration dialog box (
Figure 4.15 ) appears. Then click OK to
download the I/O configuration to the bridge.
Figure 4.15 Save Configuration Dialog Box
TIP: If both Save Type choices are available, it is
recommended to select the “Optimize and re-write schedule
for all connections” radio button.
