4-14 Configuring the I/O
4. As the selected ControlNet path is browsed, RSNetWorx for
ControlNet creates a graphical representation of the devices on the
network (
Figure 4.19 ).

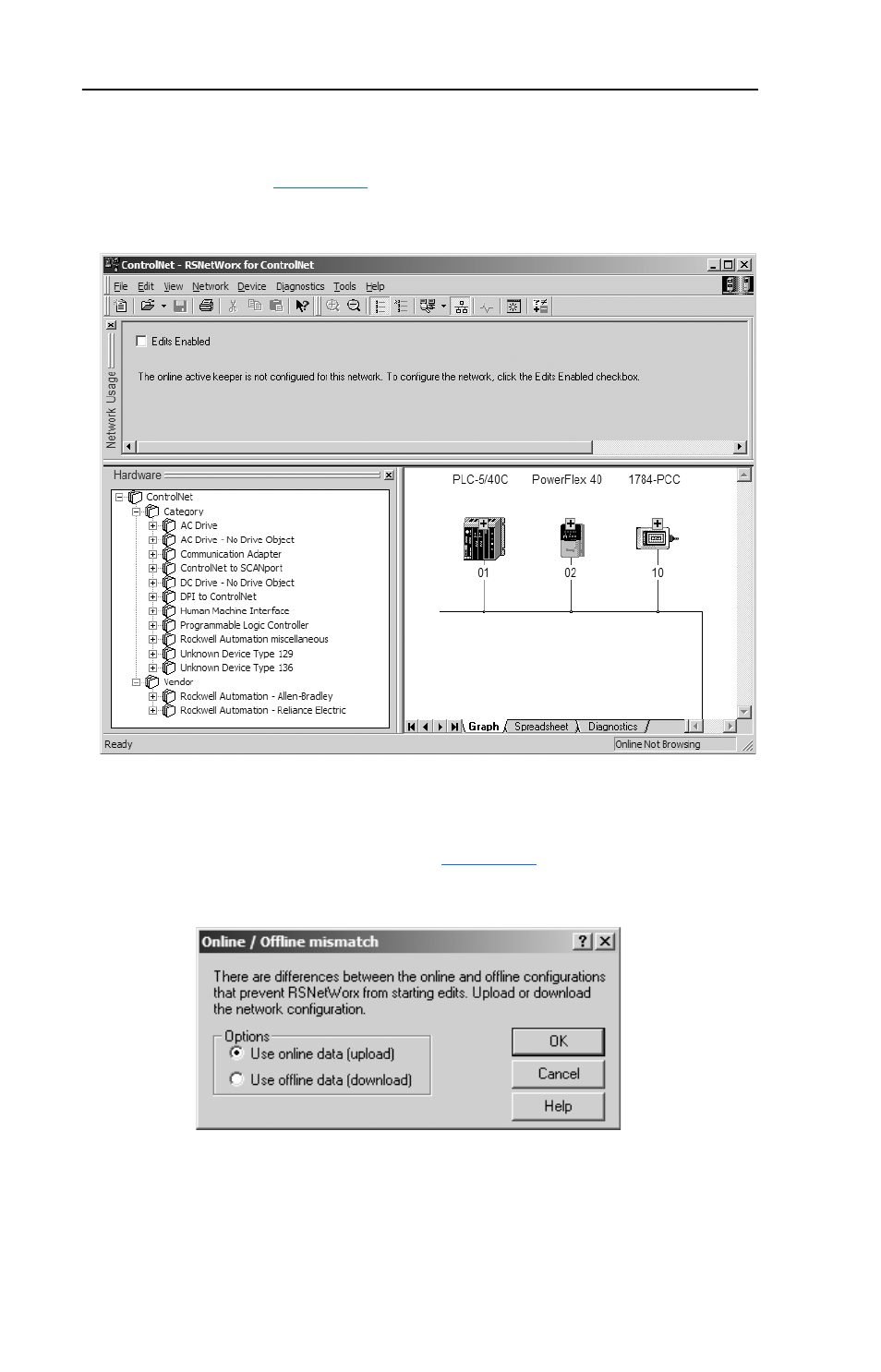

Figure 4.19 RSNetWorx for ControlNet Graph View Screen
5. Select Network > Enable Edits. If the scanner has a different I/O
configuration than the configuration now being saved, the Online /
Offline mismatch dialog box (
Figure 4.20 ) will appear.
Figure 4.20 Online / Offline mismatch Dialog Box
When both radio button choices are available, use the preselected
default “Use online data (upload).” When this choice is unavailable
(grayed out), you must select “Use offline data (download).” Then
click OK.
