Using Multi-Drive Mode 7-13

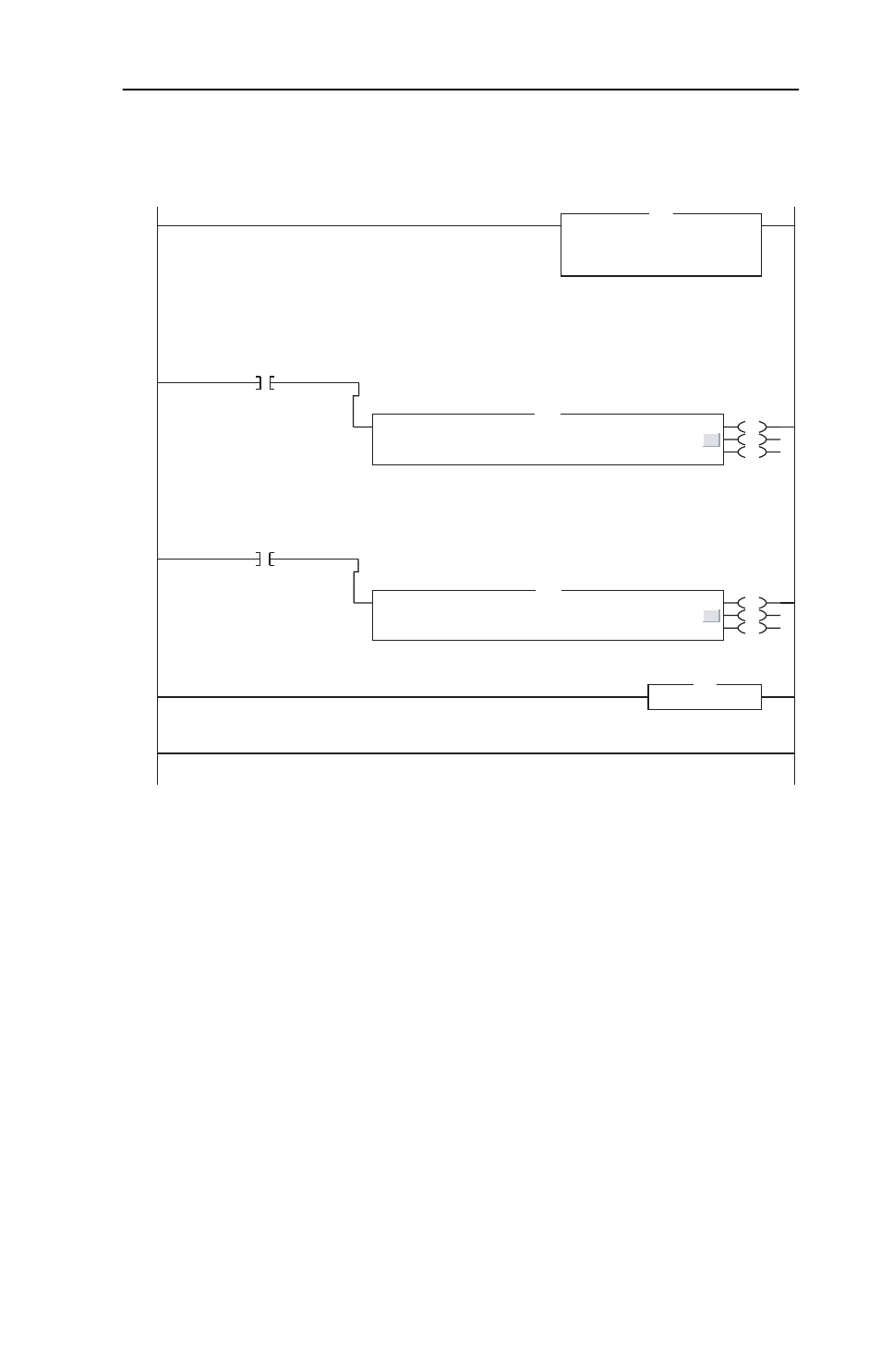

Figure 7.10 ControlLogix Drive 0 Control Subroutine (Continued)
13 Copy File
Source Drive_0_Speed_Reference
Dest Drive_Output_Image[1]
Length 1
COP
Explicit Messaging Example
Drive 0 parameters are accessed by adding 17408 decimal (4400 hex) to the desired parameter number. This example
reads data from Parameter d003 - [Output Current] by using an Instance of 17411 (17408 + 3).
14
Drive_0_Perform_Parameter_Read
EN
DN
ER
Type - CIP Generic
Message Control Drive_0_Parameter_Read_Message ...
MSG
Explicit Messaging Example
Drive 0 parameters are accessed by adding 17408 decimal (4400 hex) to the desired parameter number. This example
reads data from Parameter d003 - [Output Current] by using an Instance of 17411 (17408 + 3).
Drive 0 parameters are accessed by adding 17408 decimal (4400 hex) to the desired parameter number. This example
writes data to Parameter P039 - [Accel Time 1] by using an Instance of 17447 (17408 + 39).
15
Drive_0_Perform_Parameter_Write
EN
DN
ER
Type - CIP Generic
Message Control Drive_0_Parameter_Write_Message ...
MSG
Drive 0 parameters are accessed by adding 17408 decimal (4400 hex) to the desired parameter number. This example
writes data to Parameter P039 - [Accel Time 1] by using an Instance of 17447 (17408 + 39).
16 Return
RET
(End)
