‎Chapter 5 Configuring T H E E M 1 3 X S E R I E S
98 EM13x Series SMART MULTIFUNCTION METER
allows you to configure the Class 0 response by assigning ranges of
points to be polled via Class 0 requests.
To view or build a DNP Class 0 response message:
Select Protocol Setup from the Meter Setup menu and click on the
DNP Class 0 Points tab.
Select the object and variation type for a point range.
Specify the start point index and the number of points in the range.
Refer to the EM13X Series DNP3 Reference Guide for available data
points.
Repeat these steps for all point ranges you want to be included into the
Class 0 response.
Click Send to download your setup to the meter.
The factory-set Class 0 point ranges are shown in the picture below.

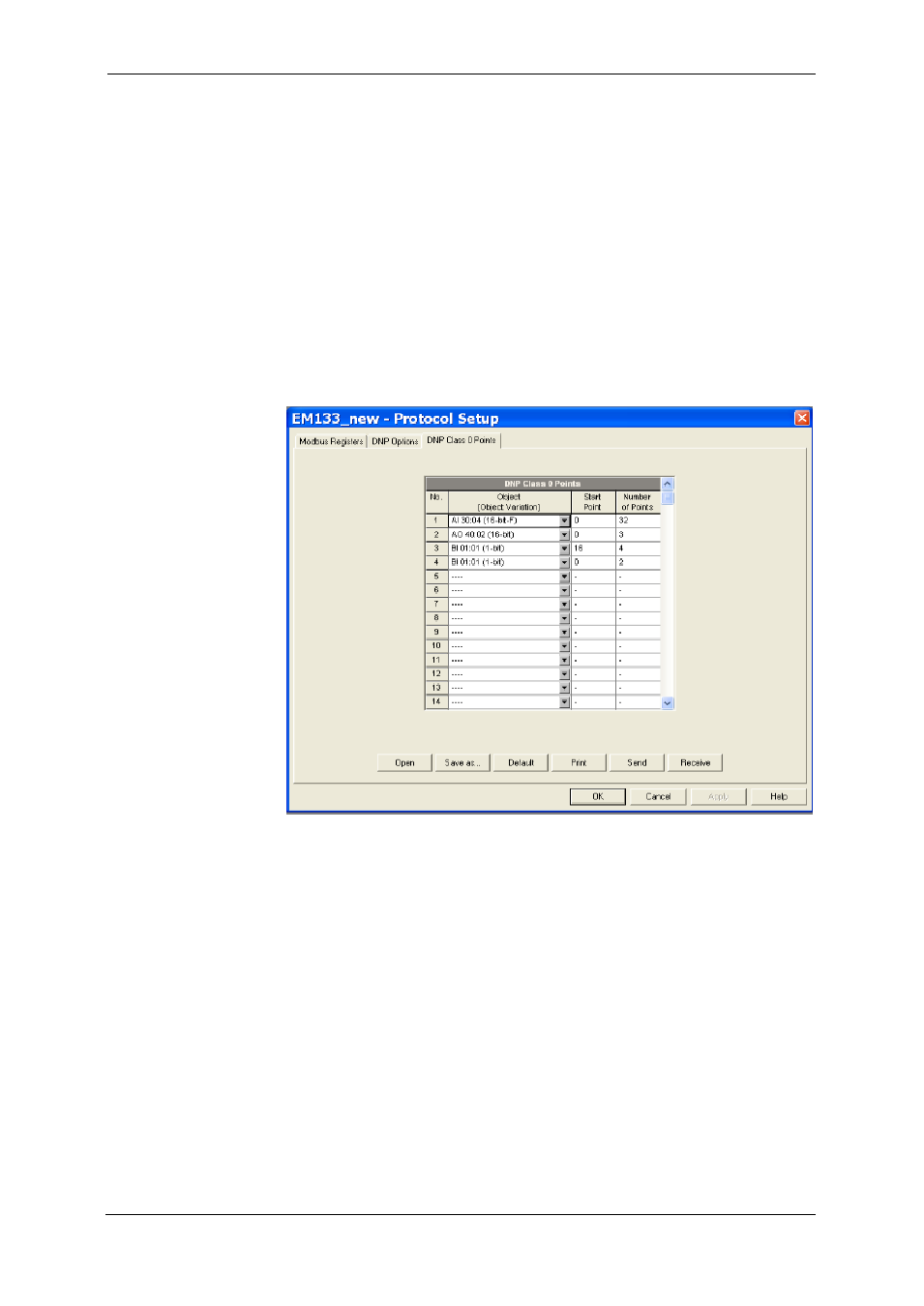

Figure ‎5-22: Protocol Setup Dialog Box – DNP Class 0 Points Tab
