‎Chapter 5 Configuring T H E E M 1 3 X S E R I E S
76 EM13x Series SMART MULTIFUNCTION METER
Generating Energy Pulses through Relay Outputs
To generate energy pulses through a relay output:
 Set a relay to either pulse, or KYZ mode, and then
select a polarity (active pulse edge) for energy pulses
and a pulse width.
 Select a source energy accumulator and the pulse rate
for your output
 Send your new setup to the meter
Configuring Analog Outputs
The meter can be ordered with four optional analog outputs with
options for 0-1mA, ±1mA, 0-20mA and 4-20mA current outputs.
Using PAS
Select General Setup from the Meter Setup menu, and then click on
the Analog Outputs tab.

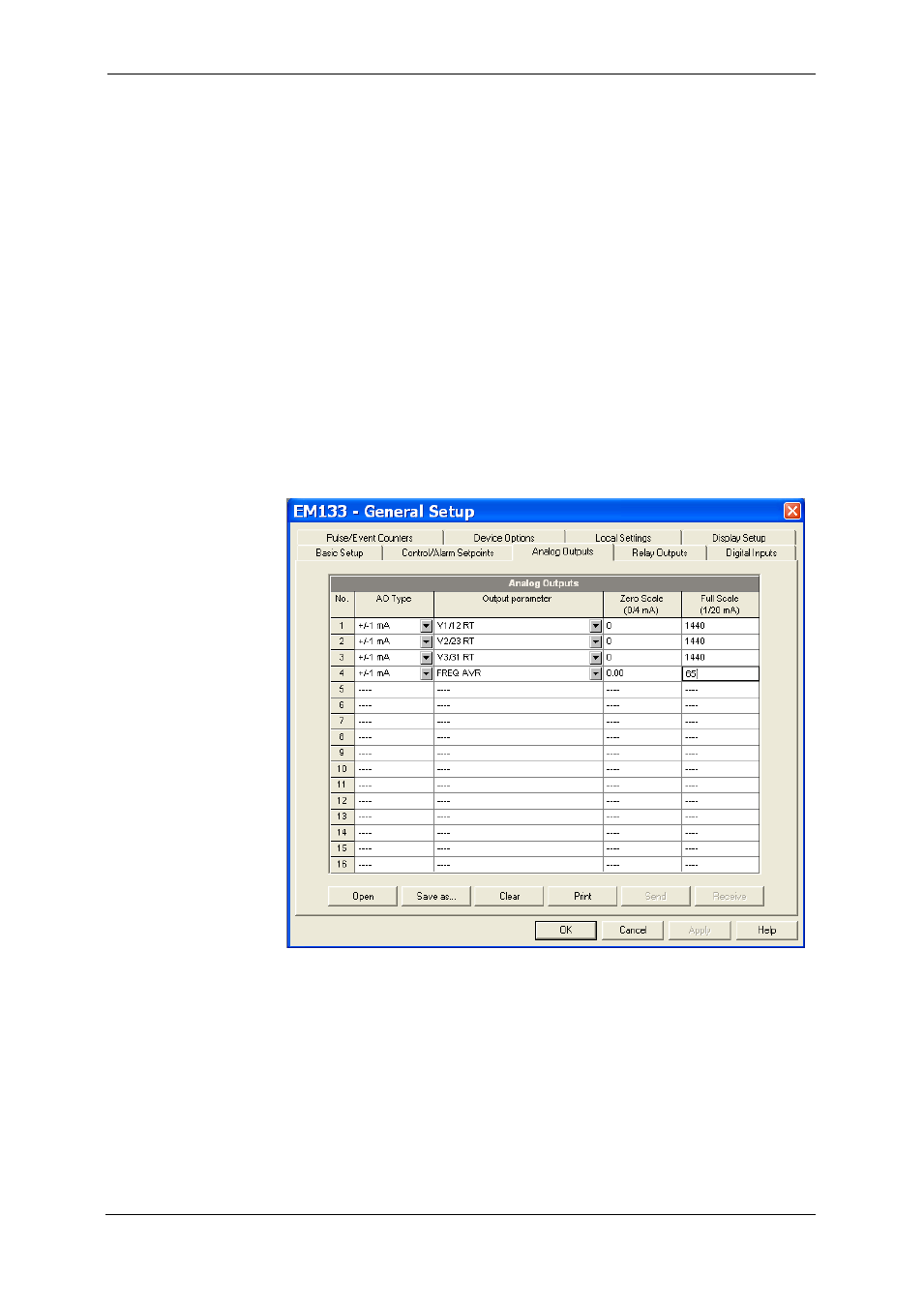

Figure ‎5-10: General Setup Dialog Box – Analog Outputs Tab
The available analog output options are described in Table 13.
