‎Chapter 3 Using F R O N T D I S P L A Y
56 EM13x Series SMART MULTIFUNCTION METER

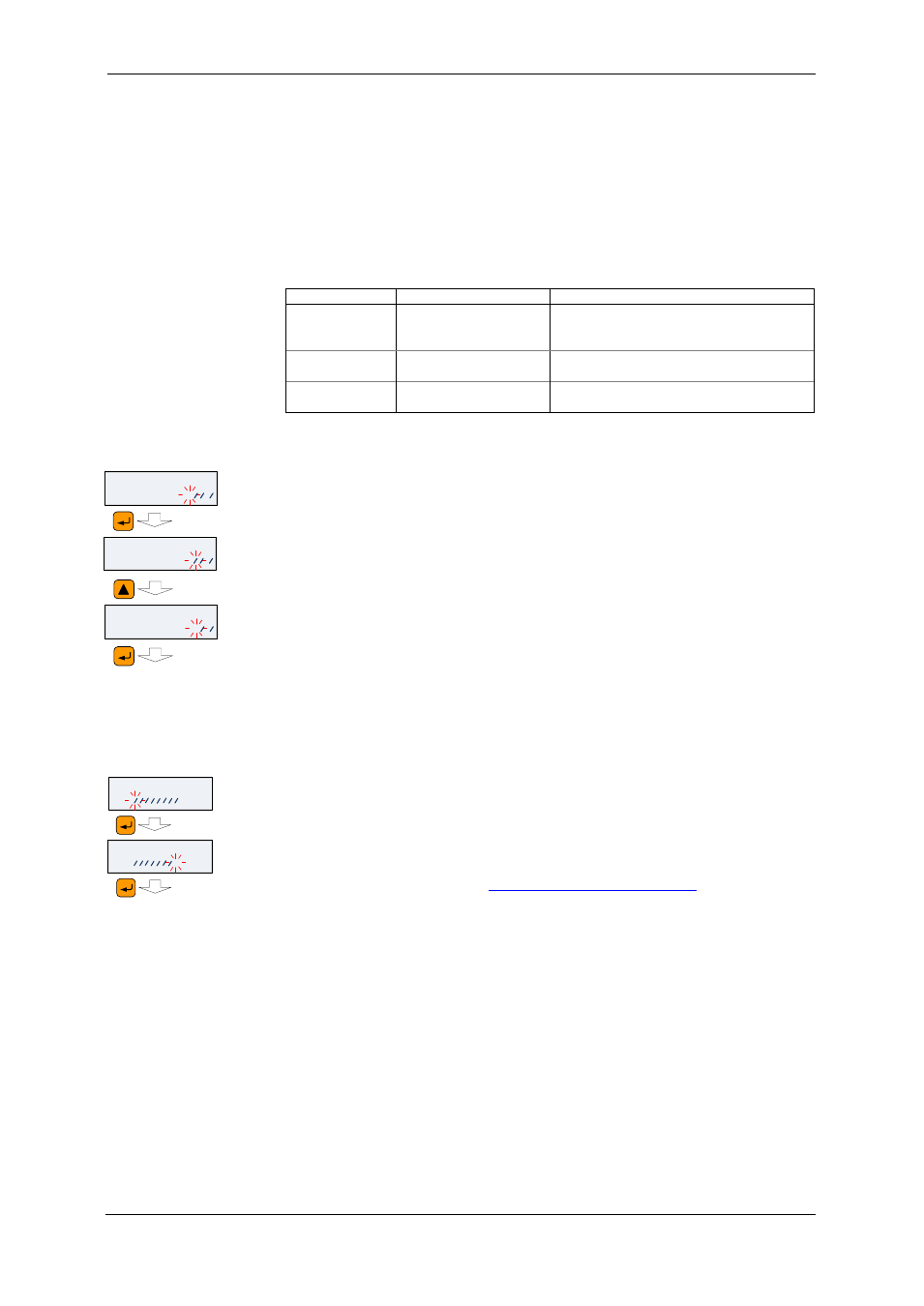

3.3 Programming Mode
To enter programming mode from the data display, press and hold the
SELECT/ENTER button for more than 5 seconds.
Navigation Buttons
The following table gives a summary of the button operations in
programming mode.
Button Press Operations
SCROLL Short press Scroll through a menu item list in a
highlighted window or increment a
highlighted digit in a numeric field
SELECT/ENTER Short press (less than
1 second) = SELECT
Highlight a menu window or a digit in a
numeric field
SELECT/ENTER Long press (1 to 2
seconds) = ENTER
Store the changed item or perform an
action indicated in a highlighted window
Entering Numeric Values
Whenever a numeric value is to be changed, use a short press on the
SELECT/ENTER button to highlight a desired digit, and then use the
SCROLL button to change the value of the highlighted digit. A
highlighted digit appears in inversed color. If you missed a digit, just
continue moving through the rest of digits until you reach the desired
place.
Once the number is set to the desired value, press and hold the
SELECT/ENTER button for 1-2 seconds to save your new setting.
To reject your changes and restore the previous value, use a short
press on the SELECT/ENTER button to return to the higher-level
window.
Password Security
The setup menus are secured by 8-digit user passwords. Every time
you enter programming mode, you are prompted for a correct
password. The meter is primarily shipped with all passwords preset to
9 at the factory.
It is recommended that you change the factory set passwords as fast
as possible to protect your setups and accumulated data from
unauthorized changes. See
Configuring Meter Passwords in Chapter 5
on how to change passwords in your meter.
Enter the password as you enter numeric values. As you move to the
next place, the digit entered is saved and then zeroed. If you missed a
digit, you should re-type all preceding digits before you reach the
missed place again.
Once the password is set to the desired value, press and hold the
SELECT/ENTER button for more than 1 second. If the password you
entered is correct, you move to the main device menu, otherwise you
return back to the data display.
Setup Menus and Access Rights
The EM13X Series setup is menu-driven. The meter provides 11 menus
that allow local accessing a limited number of meter setups and control
Basic PT Ratio
100.0
Basic PT Ratio
100.0
SHORT PRESS
Basic PT Ratio
150.0
LONG PRESS
Enter Password
00000000
SHORT PRESS
LONG PRESS
Enter Password
00000009
