‎Chapter 2 Installation

EM13x Series SMART MULTIFUNCTION METER

Wiring Diagrams

For AC input ratings, see

in Appendix A for

more details.

Table 2 presents the available wiring configurations in the meter.

Table 2: Wiring Configurations

Wiring Configuration

Setup Code

Figure

3-wire 2-element Delta direct connection using 2 CTs 3dir2

2-11

4-wire 3-element Wye direct connection using 3 CTs

4Ln3 or 4LL3 2-12

4-wire 3-element Wye connection using 3 PTs, 3 CTs

4Ln3 or 4LL3 2-13

3-wire 2-element Open Delta connection using 2 PTs,

2 CTs

3OP2

2-14

4-wire 2½-element Wye connection using 2 PTs, 3

CTs

3Ln3 or 3LL3 2-15

3-wire 2½-element Open Delta connection using 2

PTs, 3 CTs

3OP3

2-16

4-wire 3-element Delta direct connection using 3 CTs 4Ln3 or 4LL3 2-17
3-wire 2½-element Broken Delta connection using 2

PTs, 3 CTs

3bLn3 or

3bLL3

2-18

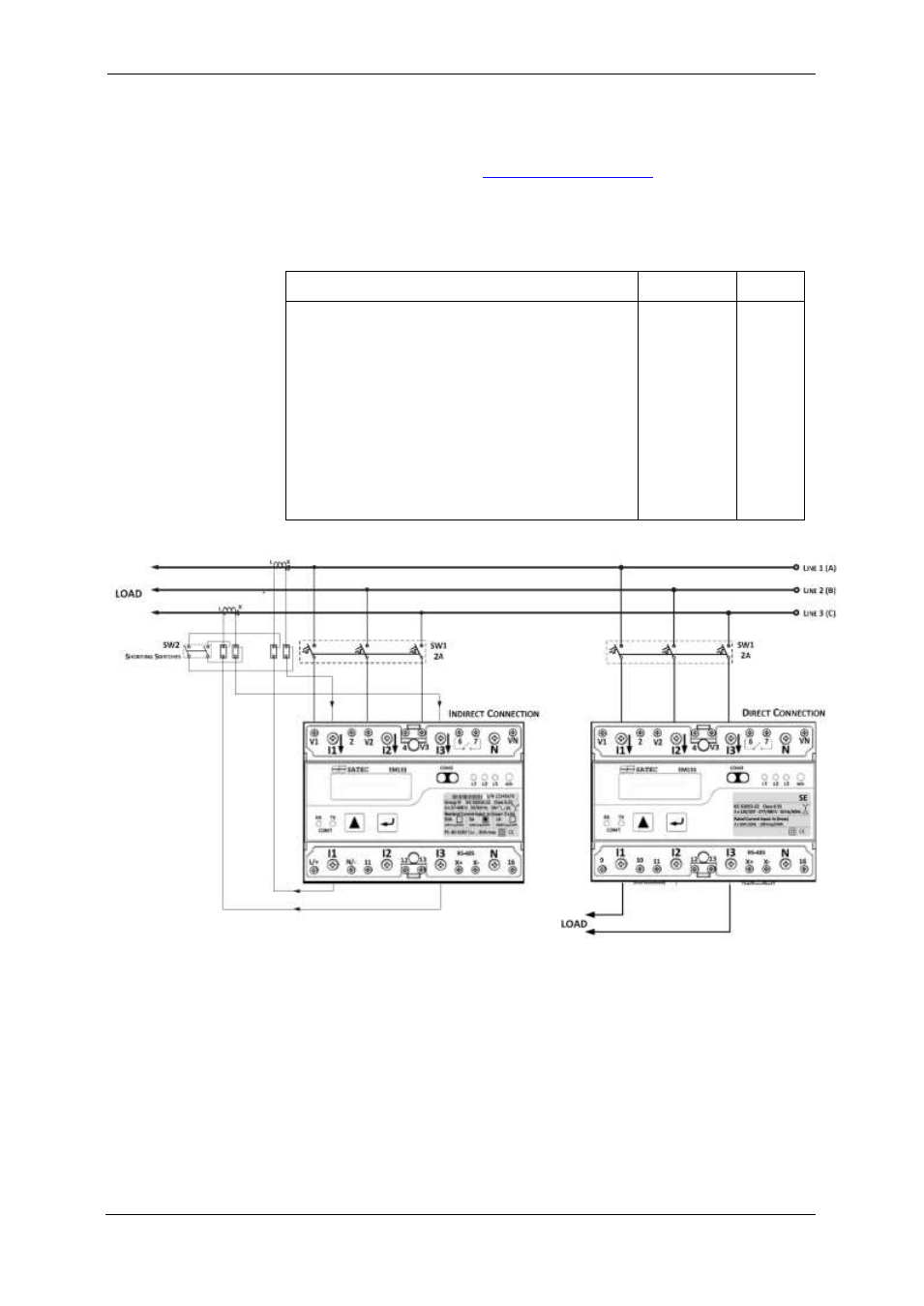

Figure ‎2-13 3-Wire 2-Element Delta Direct Connection Using 2 CTs (Wiring Mode = 3dir2)
