‎Chapter 5 Configuring T H E E M 1 3 X S E R I E S
EM13x Series SMART MULTIFUNCTION METER 87

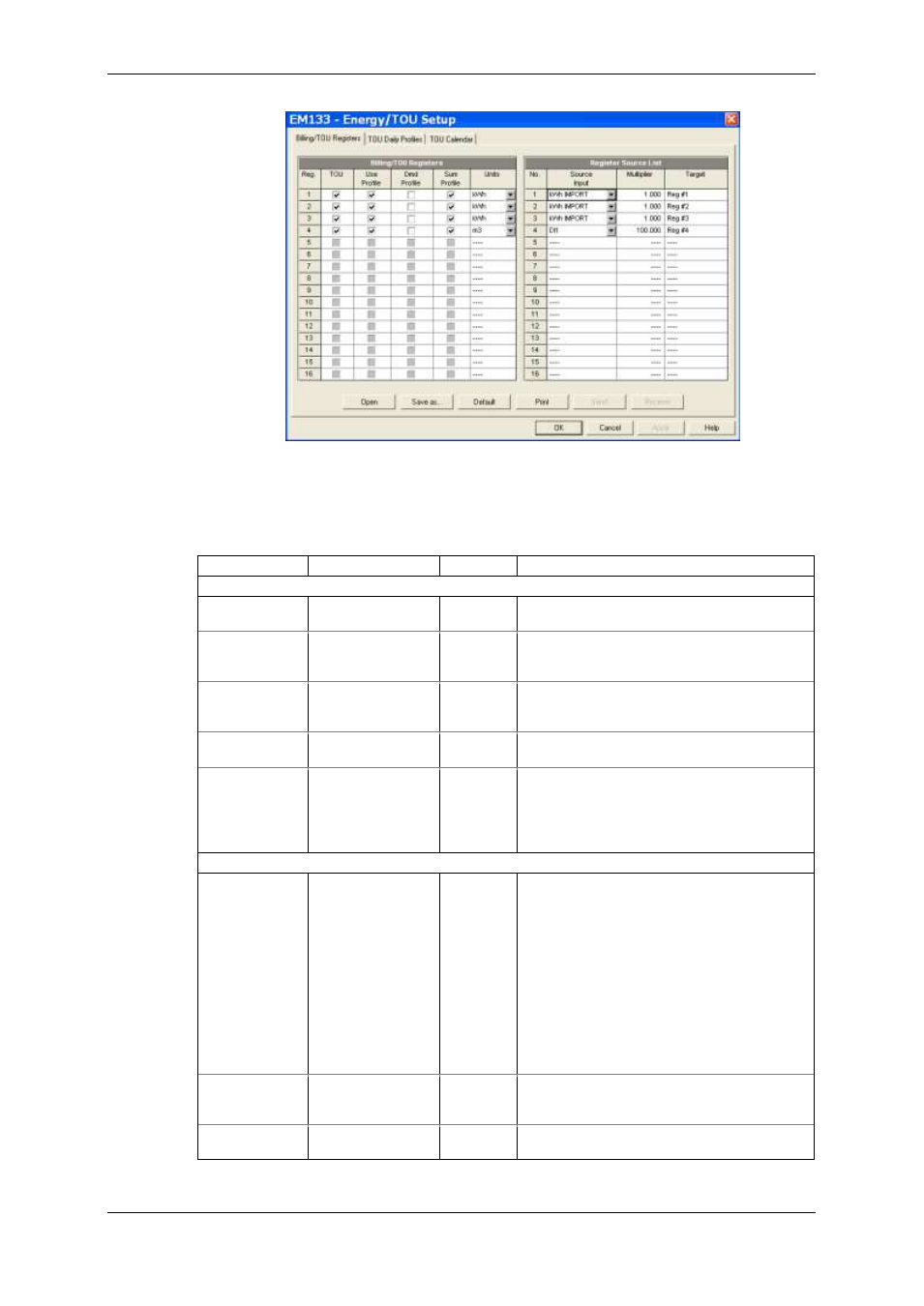

Figure ‎5-15: Energy/TOU Setup Dialog Box – Billing/TOU Registers tab
 Configure the register options according to the valid
parameters shown in Table 18.
Table 18: Billing/TOU Register Options
Parameter Options Default Description
Billing/TOU Registers
TOU Unchecked
Checked
Unchecked Links tariff registers to the selected energy
source
Use Profile Unchecked
Checked
Checked Enables recording energy registers in a daily
billing profile file (both total and tariff
registers if TOU is enabled).
Dmd Profile Unchecked
Checked
Unchecked Enables recording maximum demand
registers in a daily billing profile file (both
total and tariff registers if TOU is enabled)
Sum Profile Unchecked
Checked
Checked Enables recording total (summary) registers
in a daily billing profile file.
Units kWh, kvarh, kVAh,
m3, CF (cubic
foot), CCF
(hundred cubic
feet)
None The register measurement units. When a
register is linked to an internal energy
source, it is set automatically. When an
external pulse source is used, the user can
select a measurement unit for the register.
Register Source List
Source Input None
kWh Import
kWh Export
kvarh Import
kvarh Export
kvarh Q1-Q4
kVAh Total
kVAh Import
kVAh Export
kWh L1 Import
kWh L2 Import
kWh L3 Import
DI1-DI14
None Links an energy source to the register
Multiplier 0.001 to 100.000 1.000 The multiplication factor for the energy
source. Unchangeable for internal energy
sources.
Target Reg#1- Reg#4 None Defines the target billing register for the
energy source. It is set automatically.
