‎Chapter 5 Configuring T H E E M 1 3 X S E R I E S

EM13x Series SMART MULTIFUNCTION METER

61

Chapter 5 Configuring the EM13X

Series

This chapter describes how to configure the EM13X Series for your
particular environment and application from the front display and via
PAS. To access your meter configuration options via PAS, you should
create a site database for your device as shown in Chapter 4.

5.1 Configuring Communications
Setting Up Serial Communication Ports

Using the Front Display

Select COM1 through COM3 from the main menu. See

Viewing and

Changing Setup Options

in Chapter 3 for information on navigating in

menus.

See the table below for available communication options.

Using PAS

Select Communications Setup from the Meter Setup menu, and then
click on the Serial Ports Setup tab. In the Port box, select the desired
device port.

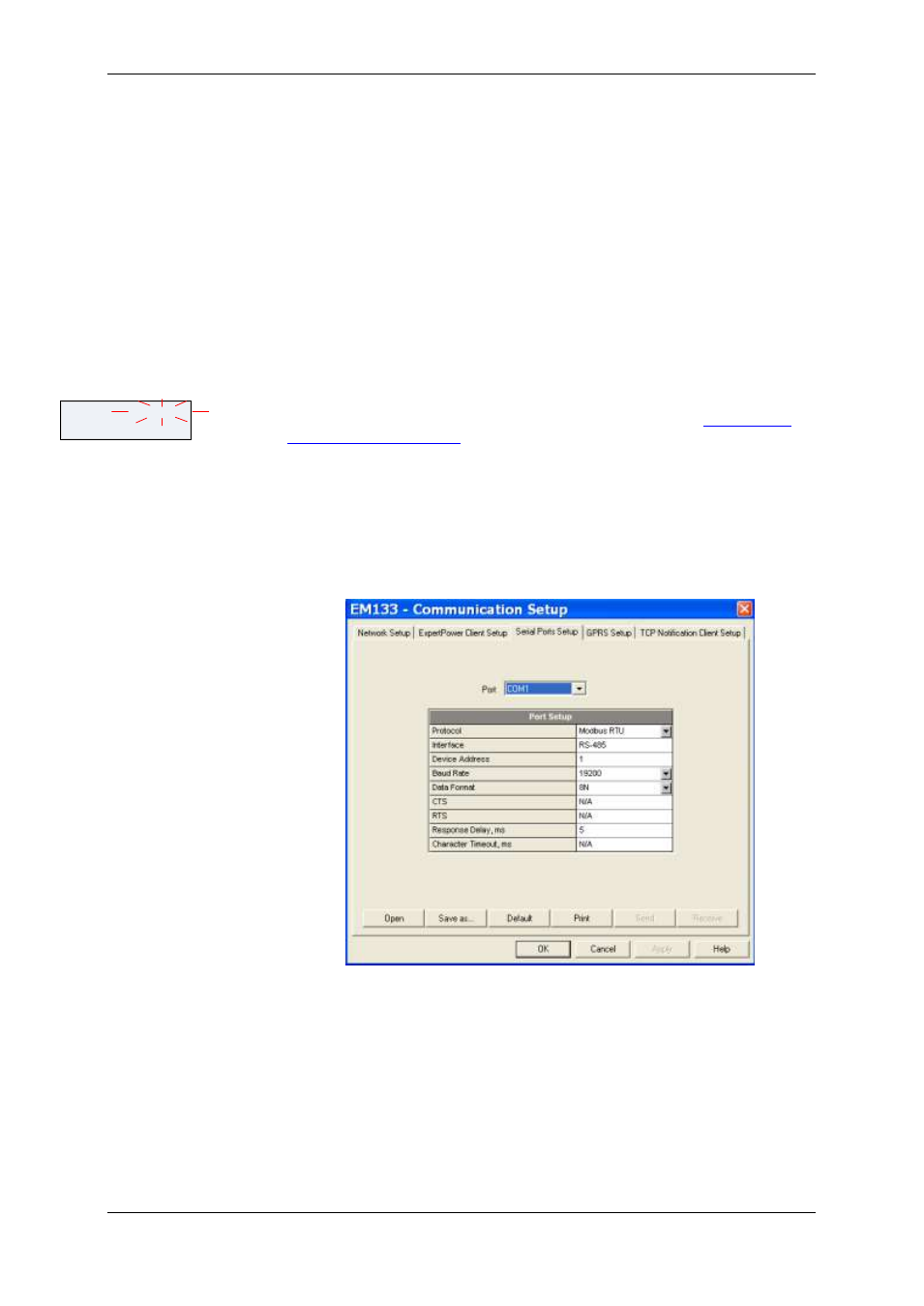

Figure ‎5-1: Communication Setup Dialog Box – Serial Ports Setup Tab

COM1 Protocol
Modbus RTU
