‎Chapter 6 Device C O N T R O L A N D U P G R A D I N G

102

EM13x Series SMART MULTIFUNCTION METER

Using PAS

Ensure that the On-line button on the PAS toolbar is checked, select
Device Control from the Monitor menu, and then click on the Device
Diagnostics
tab.

See

Device Diagnostic Codes

in Appendix G for the list of diagnostic

codes and their meaning.

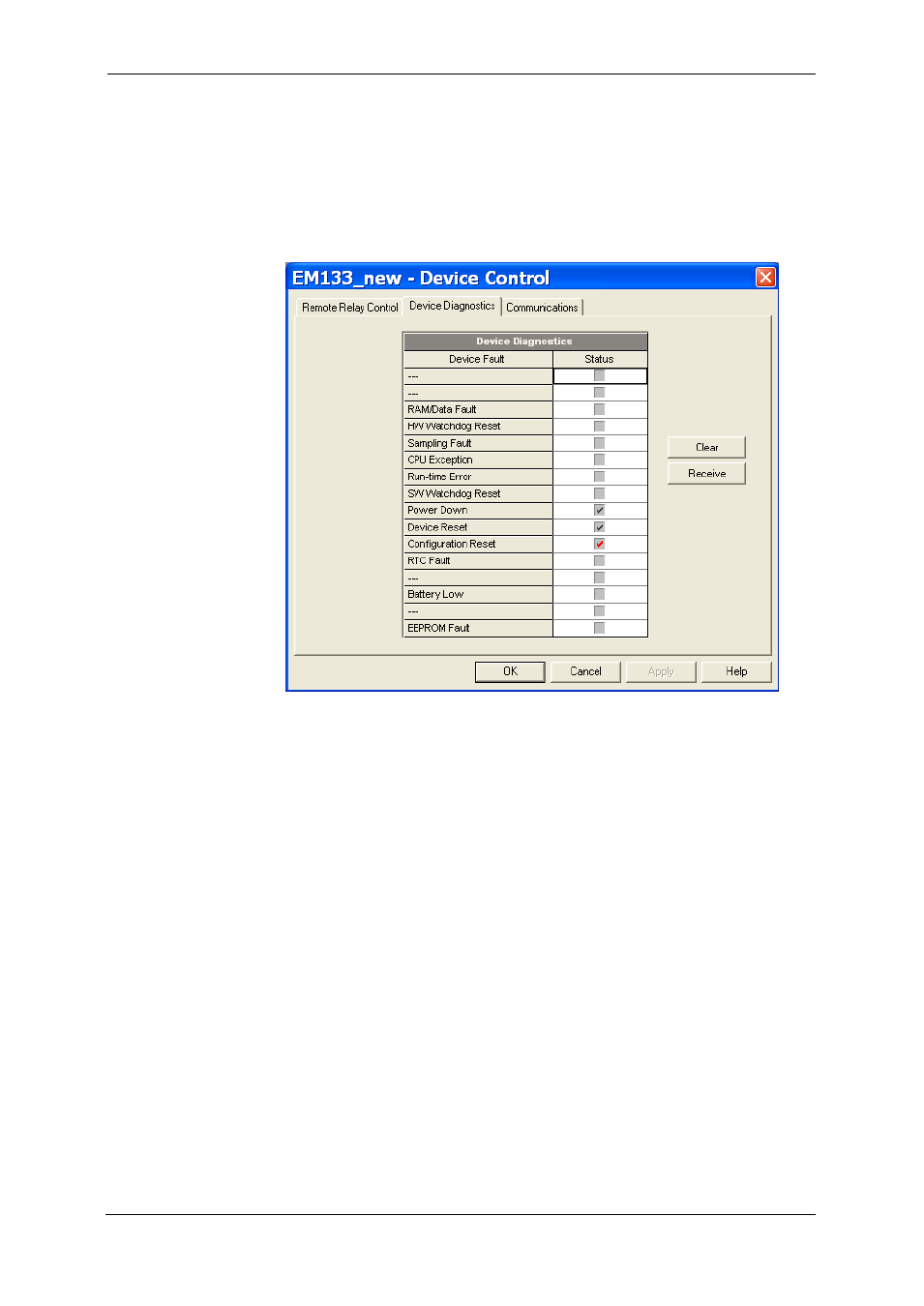

Figure ‎6-4: Device Control Dialog Box – Device Diagnostics Tab

To clear the device diagnostics events, click on Clear.

6.4 Viewing Communication Status and Statistics

Ensure that the On-line button on the PAS toolbar is checked, select
Device Control from the Monitor menu, and then click on the
Communications tab.
