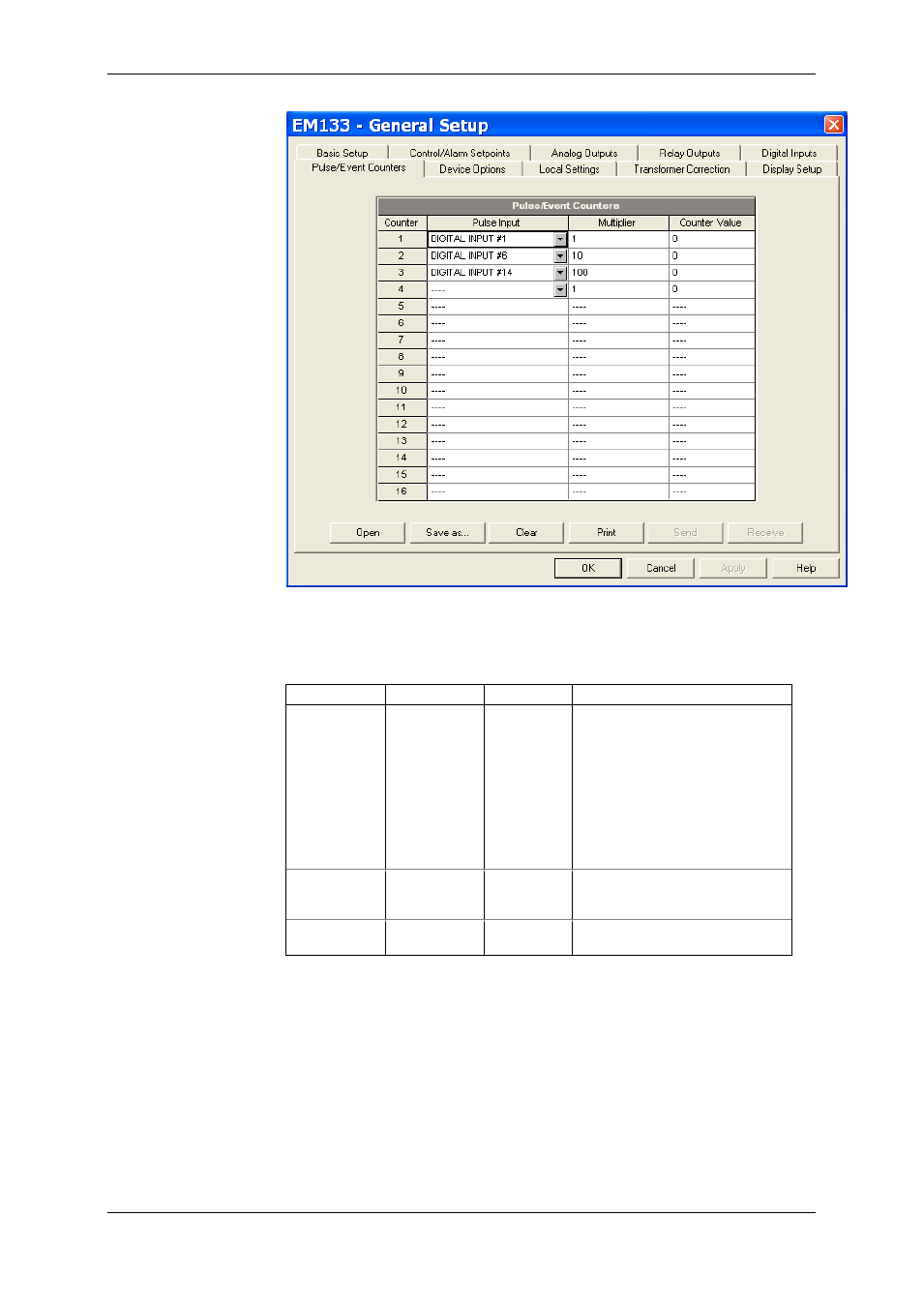

Figure ‎5-11: General Setup Dialog Box – Pulse/Event Counters
Table 14 lists available counter options.
Table 14: Counter Options
Option Range Default Description
Pulse Input None,
DI1
DI2
DI3
DI4
DI5
DI6
DI7
---
DI14
None Links a digital input to the
counter
Multiplier 1-9999 1 The value added to the counter
when a pulse is detected on the
pulse source input
Counter Value Displays the present counter
contents
You can preset a counter to a required value or clear it without
affecting the counter setup.
To preset or clear a counter:
 Click the Online button on the PAS toolbar before
accessing the setup dialog box.
 Type in the required value into the Counter Value field
 Click Send
