‎Chapter 3 Using F R O N T D I S P L A Y
EM13x Series SMART MULTIFUNCTION METER 57

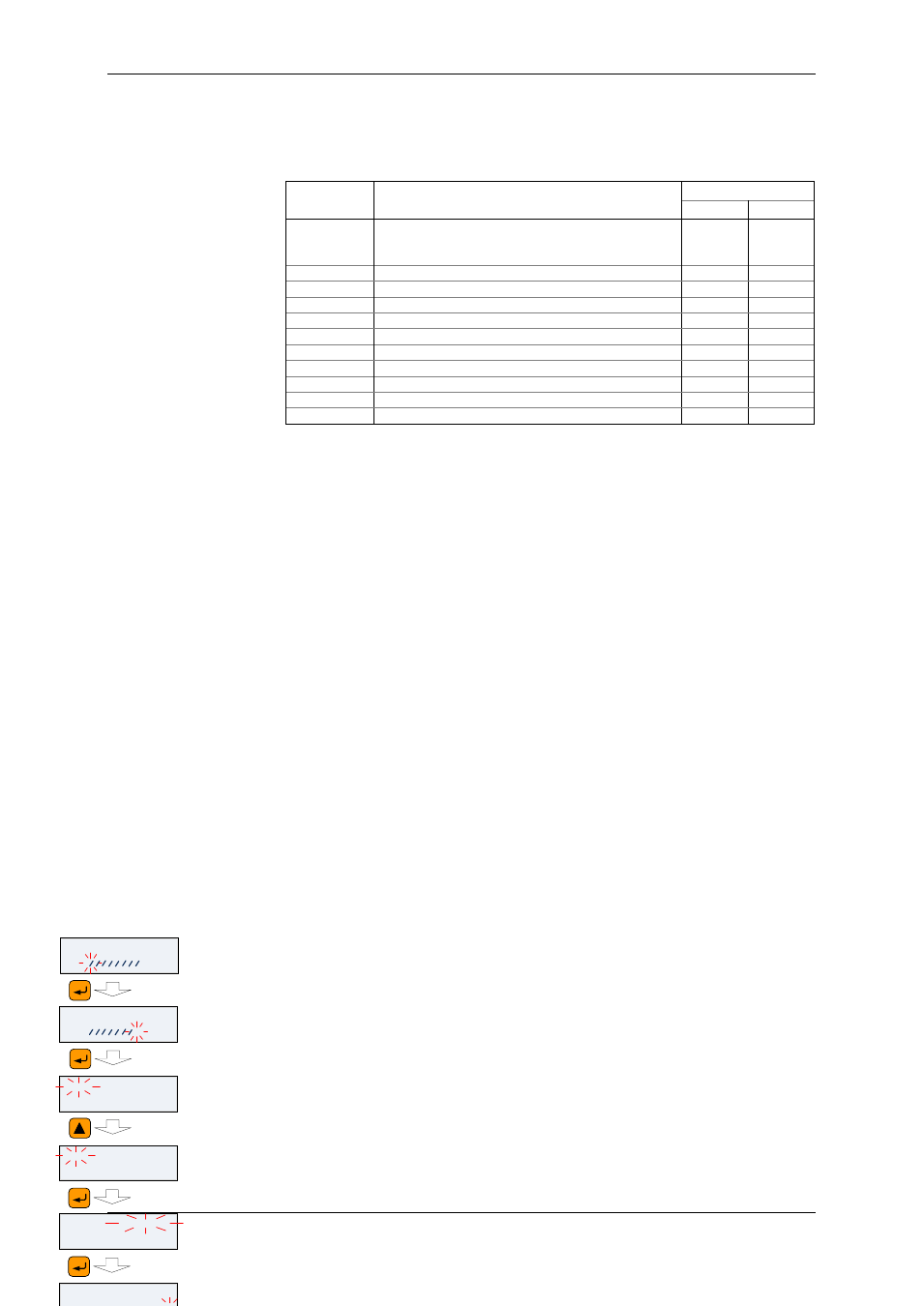

functions listed in the following table. Access to particular menus is
granted depending on the security level of the password you entered.
Menu
Label
Menu Function Security Level
View Change
Reset Reset of billing and engineering maximum
demands, device diagnostics, meter and failure
counters
Low See
Table
below
RTC RTC clock setup Low Low
Basic Basic device setup Low High
Options Device options setup Low High
COM1 COM1 serial port setup Low Medium
COM2 COM2 serial port setup Low Medium
COM3 COM3 serial port setup Low Medium
Local Local settings Low Medium
Disp Display setup Low Low
Access Meter passwords setup High High
Loader Launches flash download via a local serial port Medium Medium
Access to the RESET menu entries is allowed depending on your
security level.
If your security level does not allow access to a menu, it will not be
listed in the main menu list, and you will not be able to highlight menu
items that you are not allowed to change, but you can still view their
present settings.
Viewing and Changing Setup Options
Once you entered a correct password you are moved to the main
meter menu.
The main menu has two windows: the left window displays a submenu
list, while the right window is an assisting Exit window that allows easy
returning back to the data display. A currently active menu item is
highlighted by flashing.
To select a desired menu entry from the menu list:
If the left window is not highlighted yet, highlight it by briefly pressing
the SELECT/ENTER button.
Use the SCROLL button to scroll through the menu list until the desired
menu entry appears
Press the SELECT/ENTER button for more than 1 second to enter the
selected submenu.
Once you entered a submenu, the left window is still showing the menu
name, while the upper-right window represent a submenu options list,
and the lower-right window indicates the present option value.
To select an option you want to view or change:
Use the SCROLL button to scroll through the option list until the
desired option’s name appears in the window.
To change the selected option’s value:
Press the SELECT/ENTER button briefly to highlight the lower-right
window.
Enter Password
00000000
SHORT PRESS
LONG PRESS
Enter Password
00000009
Reset Exit
Disp Exit
SCROLL until
Disp menu
LONG PRESS
Disp Autoscroll
5
SHORT PRESS
Disp Autoscroll
5
LONG PRESS
SCROLL
Disp Autoscroll
Disabled
Disp Autoscroll
Disabled
LONG PRESS
Disp Exit
SHORT PRESS
Disp Exit
LONG PRESS
10:57:00 NORM
22/09/2011 T1 -
