4ao module - analog outputs – SATEC EM132-133 Manual User Manual
Page 35
Chapter 2 Installation
EM13x Series SMART MULTIFUNCTION METER
35

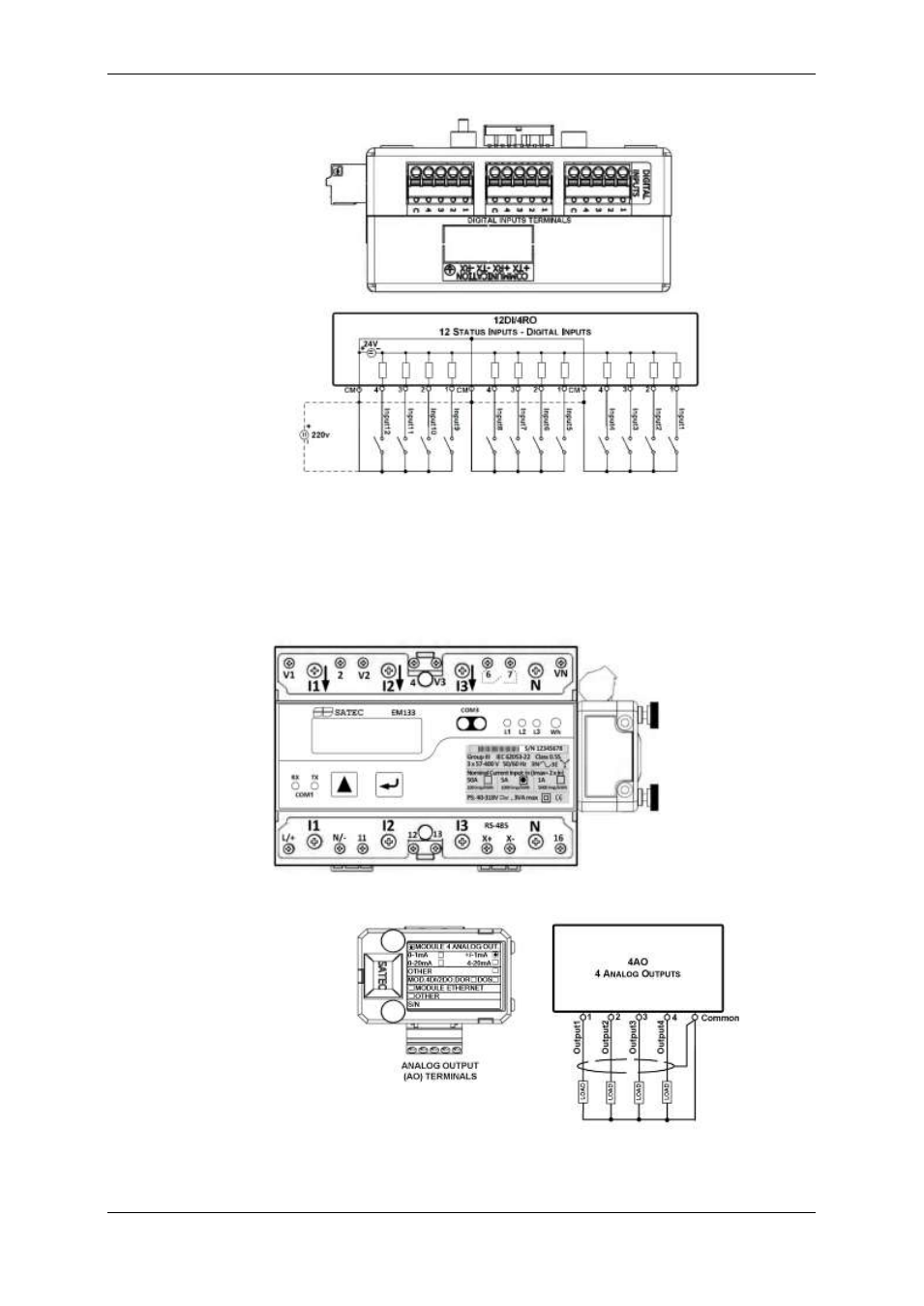

Figure 2-29 12 Digital Input Connection
4AO Module - Analog Outputs
The 4AO module has four optically isolated analog outputs with an
internal power supply and current output options of 0-20 mA and 4-20
mA (current loop load of up to 500 Ohm), 0-1 mA and ±1 mA (2mA
100% overload, current loop load of up to 5 kOhm).
Figure 2-30 4AO Module Assembly
Figure 2-31 Analog Output Connection
