4 EM13x Series SMART MULTIFUNCTION METER
To mount the EM13X Series on flat surface:
 Locate the EM13X Series on the surface to
 Push up the DIN rail brackets to lock the EM13X Series
on the rail.
Connecting the EM13X Series Unit
 Ensure that all incoming power sources are OFF.
 Check that you have the appropriate power supply.
 For direct connection, connect to CT wires through the
meter CT terminals. Observe the arrow that indicates
the current direction.
 In case of a retrofit application or high current external
SATEC CT (or Split Core) where each external CT ends
with two wires:
 Connect the wire to the meter current termination
screws.
 Connect the measured voltage inputs
 Connect COM1 – RS-485 communication port
 In case of EM132/133 model with Aux. Power supply
connect the Power Supply inputs using 1.5
mm
2 /14AWG-dedicated wires.

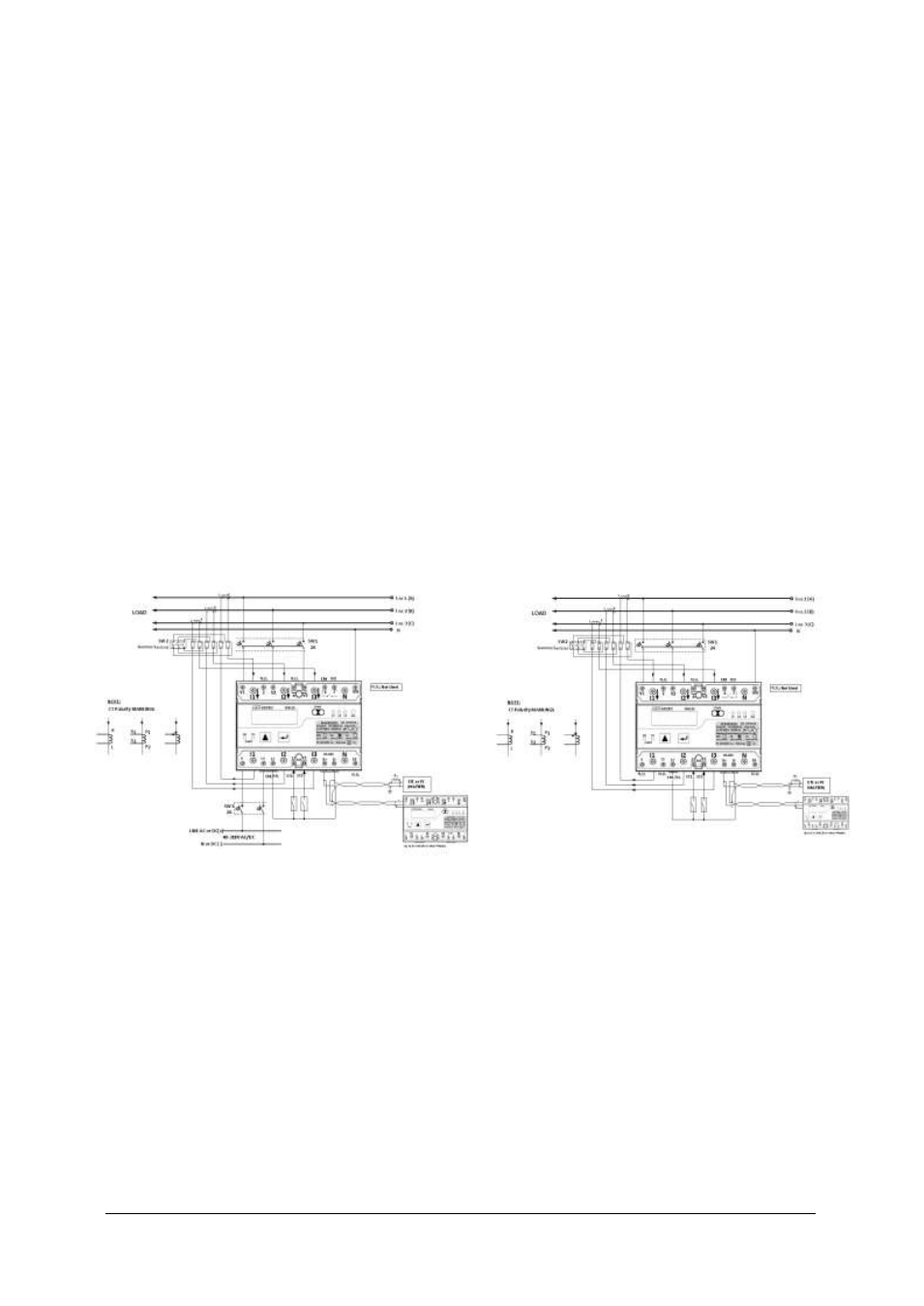

Common Wiring Mode: EM13x and EM13x-SE 4LL3 or 4Ln3
