‎Chapter 7 Monitoring M E T E R S
EM13x Series SMART MULTIFUNCTION METER 113

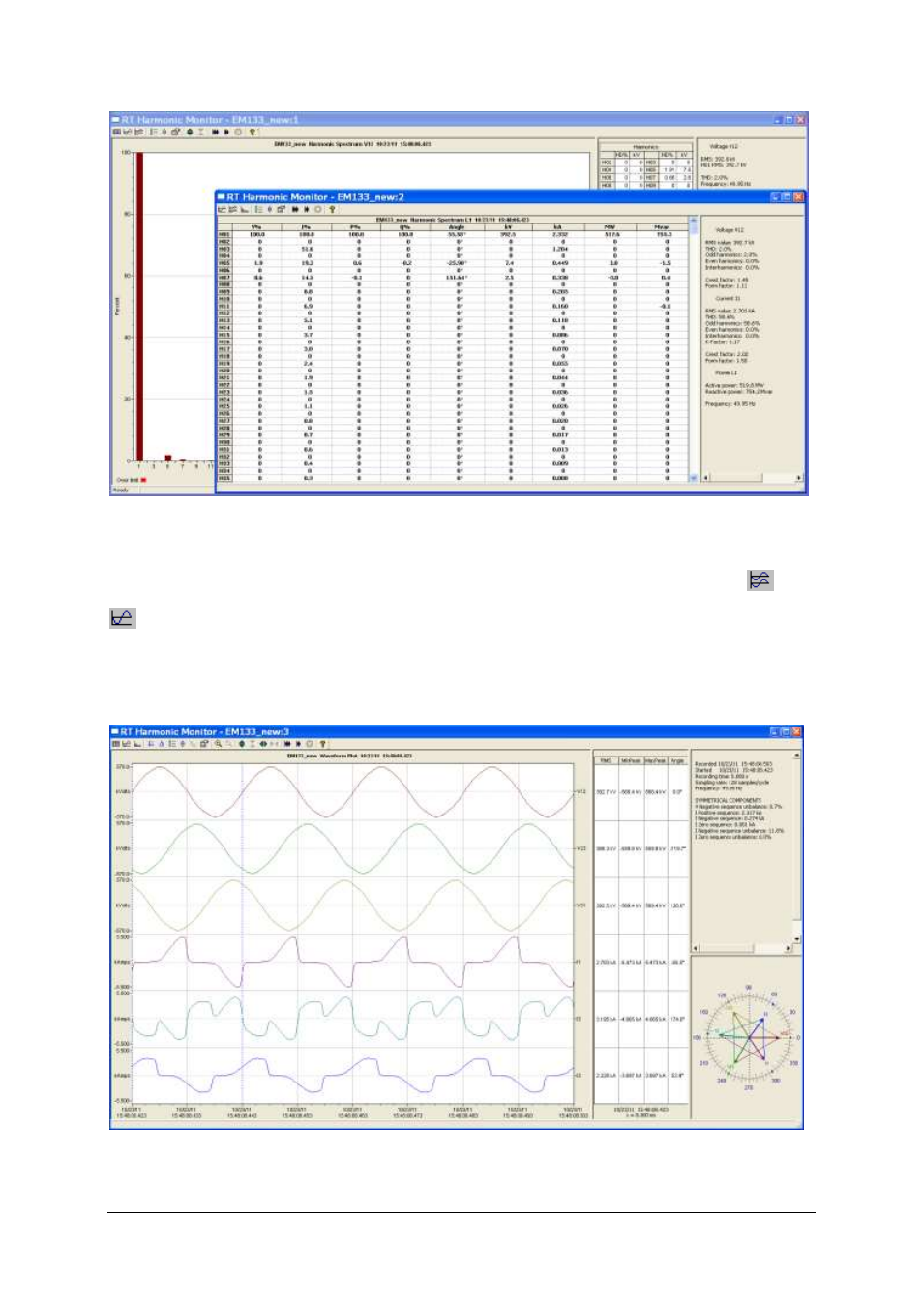

Figure ‎7-5: RT Harmonic Monitor – Spectrum Table
Viewing Synthesized Waveforms
To view the synthesize waveforms based on the sampled harmonic spectrum, click on the
button on the local toolbar to view non-overlapped voltage and current waveforms, or click on the
button to view them overlapped.
PAS shows a pair of 4-cycle voltage and current synthesized AC waveforms for a single phase.
To select the channels you want to view, click with the right mouse button on the waveform
window, select “Channels...”, check the channels for the phase you want displayed, and then click
OK.
Figure ‎7-6: RT Harmonic Monitor – Synthesized Waveforms
