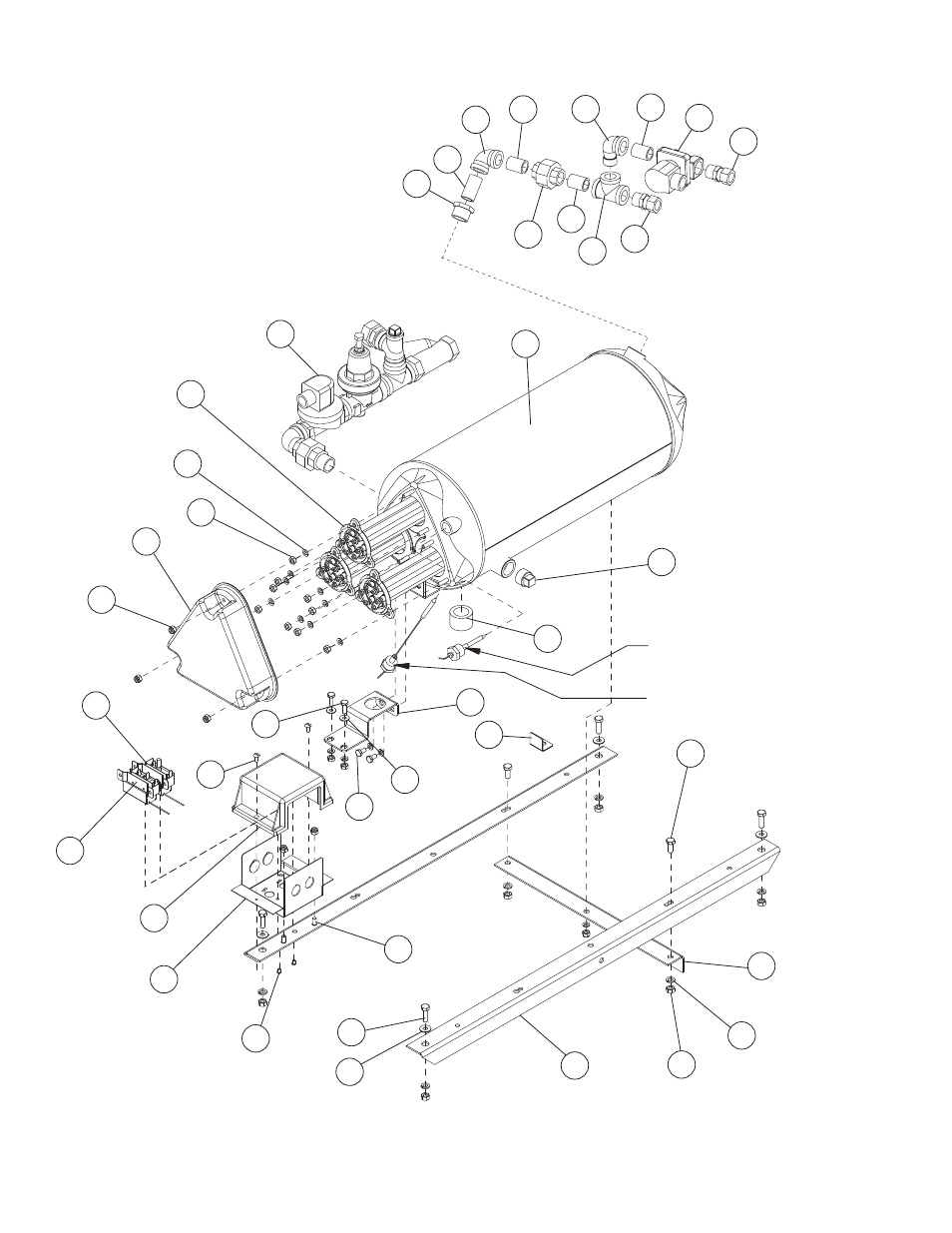

Electric Booster Installation

1

2

3

4

5

6

7

8

9

10

11

15

16

17

18

19

20

21

23

24

25

26

27

13

12

14

22

28

29

36

36

30

31

32

32

32

33

34

35

37

High Limit Thermostat

Control Thermostat

R-L Shown
