Joining the Sections
Installation
Installation

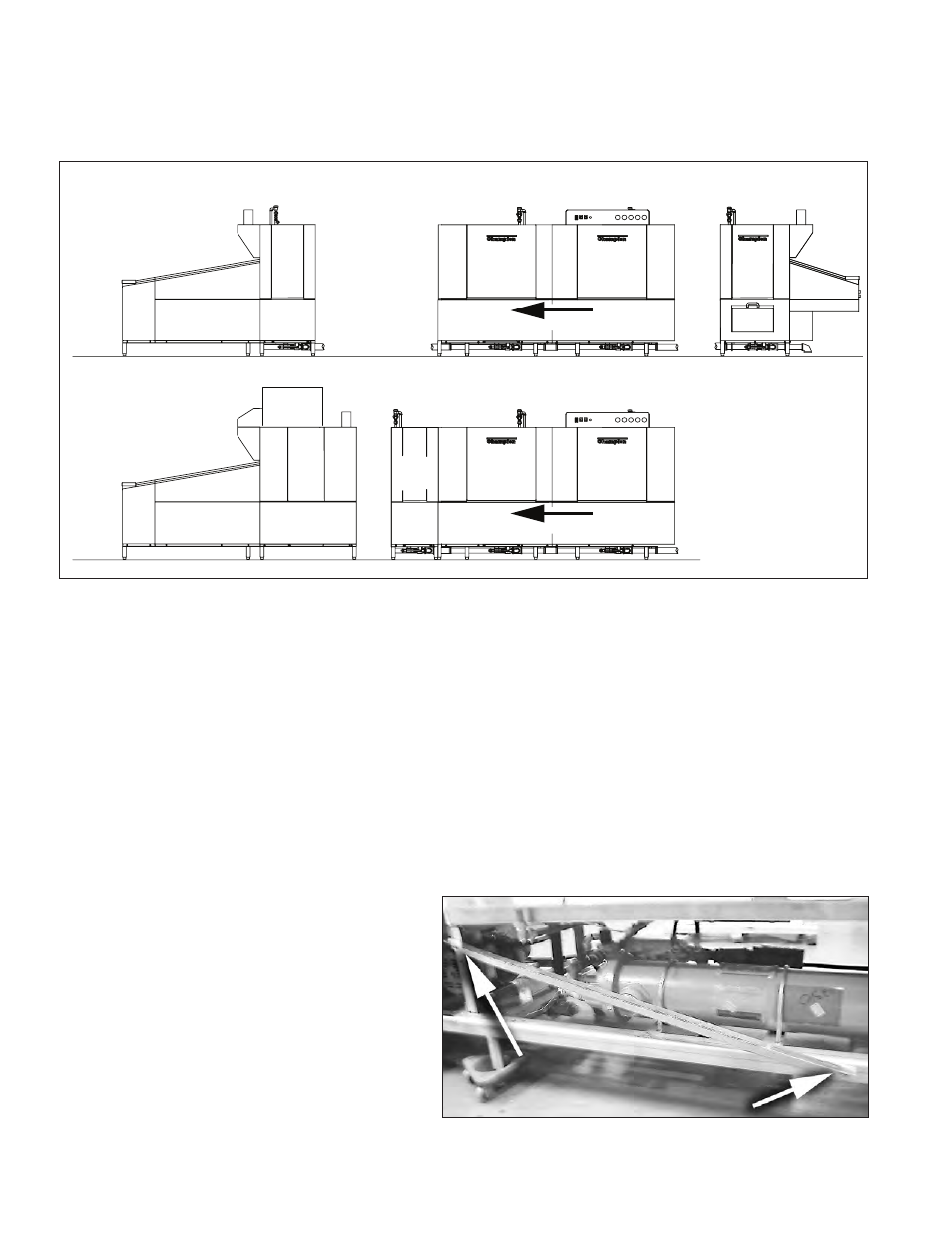

Refer to the illustration above.
The dishwasher is broken into sections for shipping and then reassembled at the installation site. The
main section of the dishwasher is the Wash/Rinse Section (C) which is made up of the wash tank and the
power rinse tank. The Load Section (A) contains the prewash tank and the
Unload Section (B) usually contains the quad rinse tank.
If the dishwasher has an Optional Blower Dryer Section then the quad rinse tank is shipped with the
Wash/Rinse Section (C).
The instructions on the following pages explains how to join the machine sections.
Remove the shipping braces.
C
Wash/Rinse
Direction of Travel
A
Load
B
Unload
Quad
Rinse
Power
Rinse
Wash
C
Wash/Rinse
Direction of Travel
B
Unload
Blower
Dryer
Quad
Rinse
Power
Rinse
Wash
Pre-
Wash
Right-to-Left
Configuration
Shown
The dishwasher is shipped in sections and reassembled at the installation site.
