Plumbing Connections
E
F
G

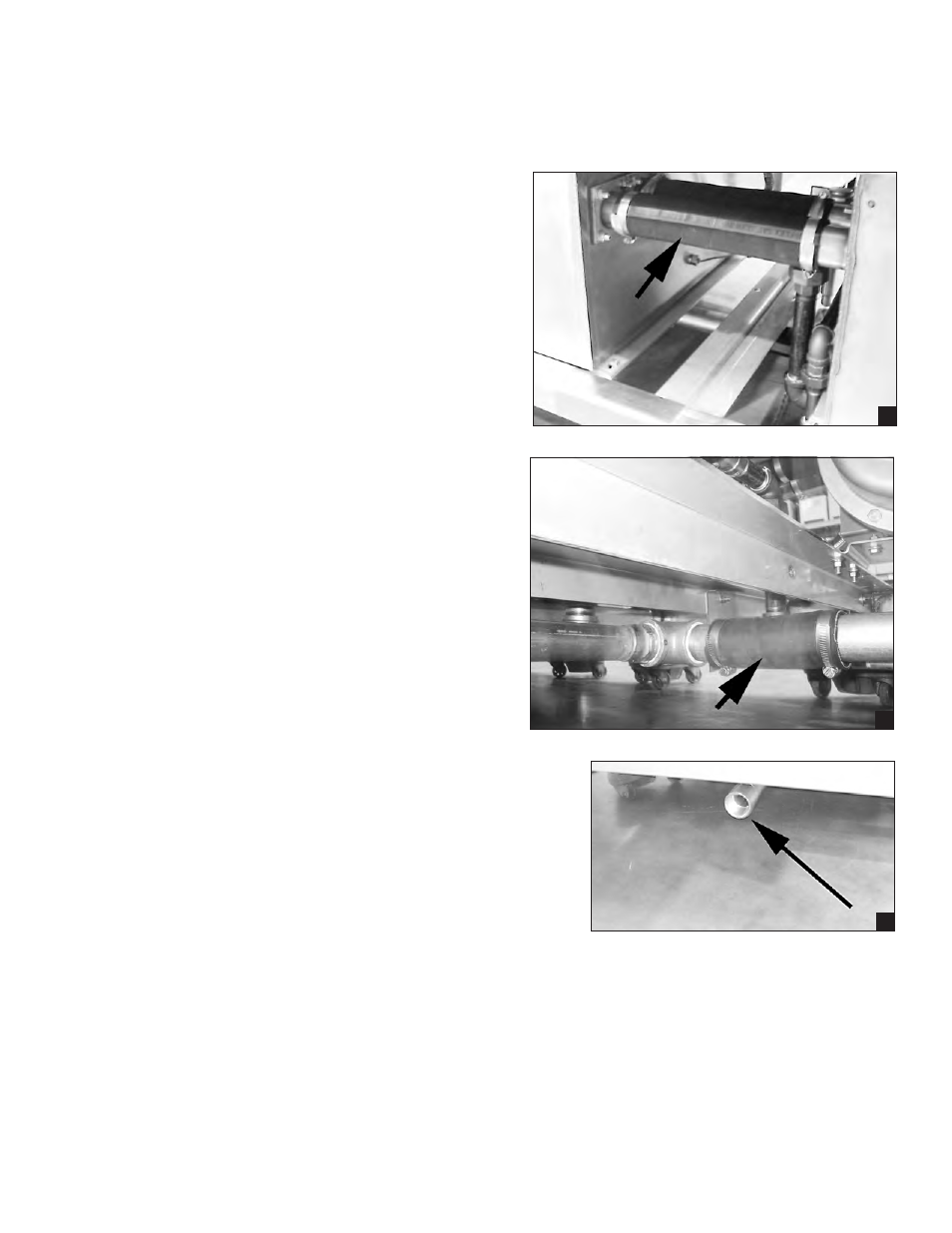

8. Connect the cross-flow piping between
the tank sections using the rubber hoses
supplied. Make sure that all hose clamps
are tight and secure as shown in (E).
9. Make sure all drain fittings are tight then
connect the drain trunk sections using
the rubber hoses supplied as shown in (F).
10. Connect the dishwasher drain outlet piping
located underneath the load-end of the
dishwasher. The dishwasher drain line
is a 2" NPT connection as shown in (G).
11. Check the water and drain connections
during the initial start-up of the dishwasher
to ensure that supply and drain piping
does not leak.
12. The building drain system must be of
sufficient size and capacity to allow the
dishwasher to drain completely without
restriction.
13. Make sure that the dishwasher drains
properly during the initial start-up.
14. Make sure that any foreign material is
removed from inside, on top of, and
underneath the dishwasher when the
plumbing and drain connections are
complete.
