33
Operation
1. Make sure the upper and lower auxiliary
rinse spray pipe gaskets are in place.
The square-shaped pipe gasket is installed
first and the round o-ring second.
2. Position the spray pipe so the rinse
nozzles point toward 10 o'clock.
3. Push the rinse pipe forward.
4. Turn the auxiliary rinse pipe clockwise
1/4 turn to lock it in place.
Note:
The final rinse pipes are permanently
installed and do not require assembly.
Operation

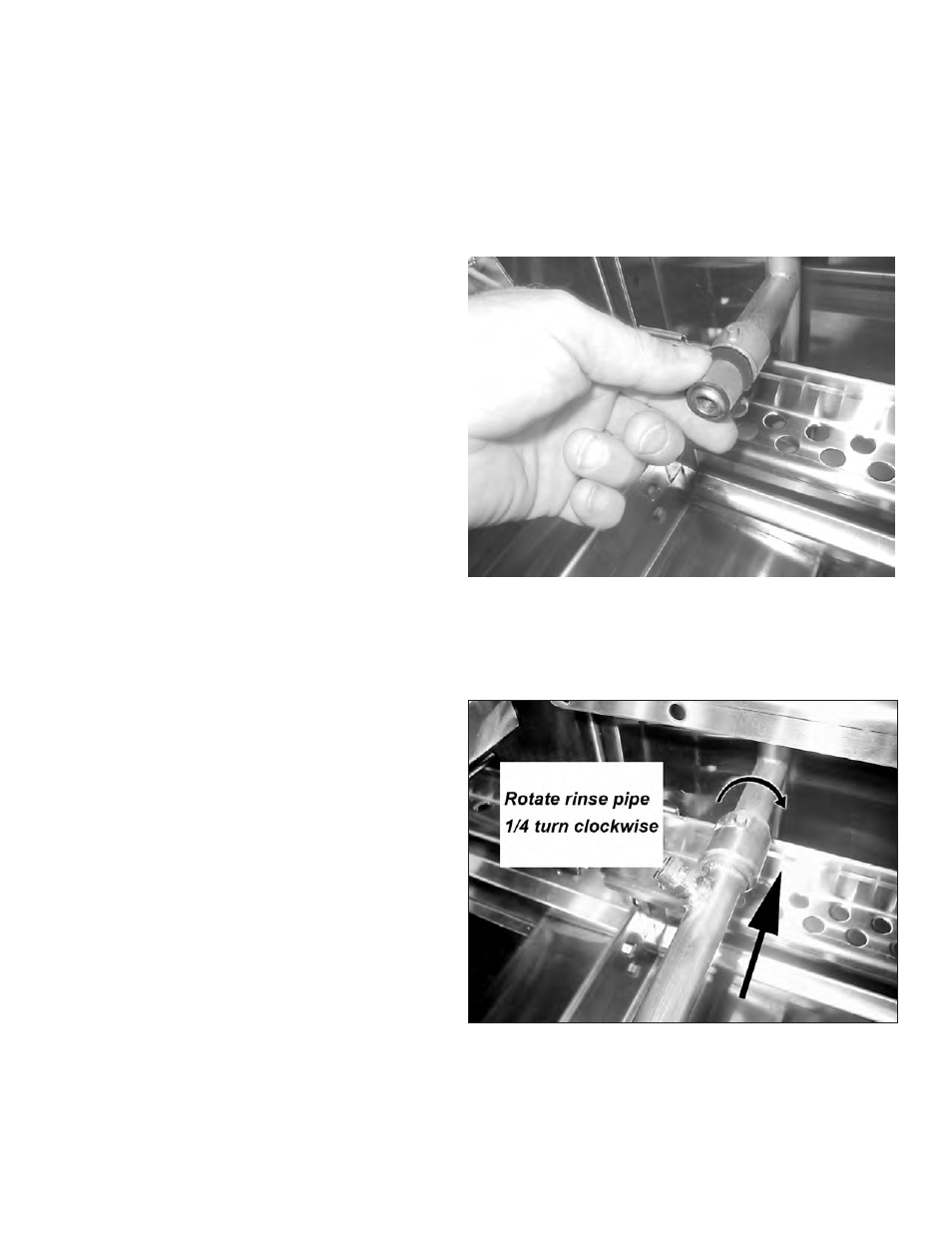

There are 2 removable auxiliary rinse spray pipes in the auxiliary rinse section.
The square-shaped gasket is installed first and the round o-ring
is installed second.
Push the auxiliary rinse arm forward, then rotate the arm
clockwise 1/4 turn to lock it in place.
Installing Spray Arm Assemblies Auxiliary Rinse Spray Pipes
