12
Installation
Installation
Baffles

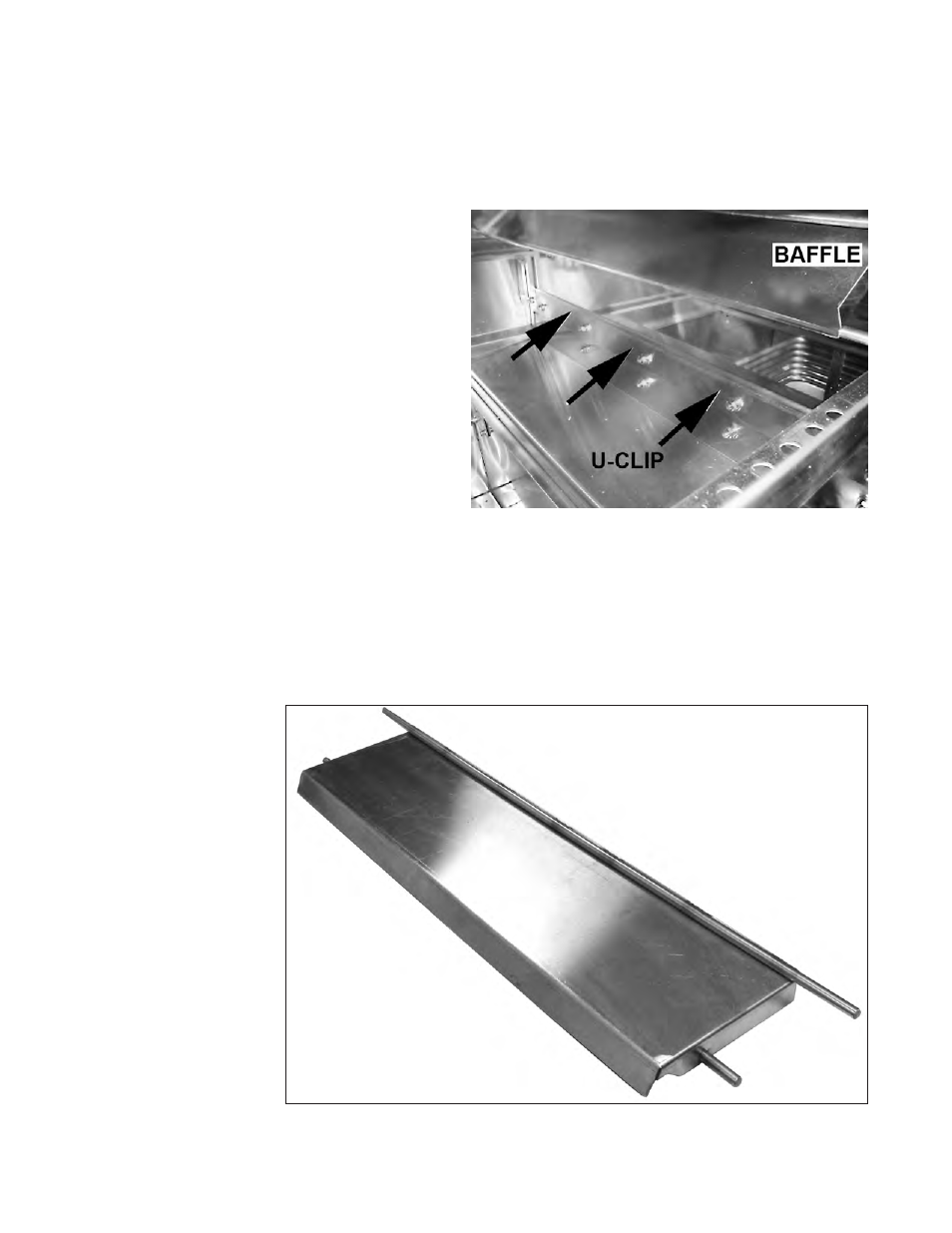

Refer to the photos to the right and below.
The right-hand photo shows a U-clip installed on
the section joint.
Above the U-clip is tank baffle which redirects
water flow back into the proper tank.
Baffles are installed in the dishwasher prior to
shipment.
1. Each section joint has a set of two baffles,
one on each side of the section joint.
2. After the U-clips are installed on the section
joint, check that the baffles are installed
correctly.
3. The baffles should angle downward so that
water is deflected into the tank directly
below the baffle.
4. Make sure that the baffles move freely
without binding.
U-clip installed on section joint with baffle shown above.
Tank Baffle shown outside the dishwasher prior to installation at the factory.
