10
Installation
Installation

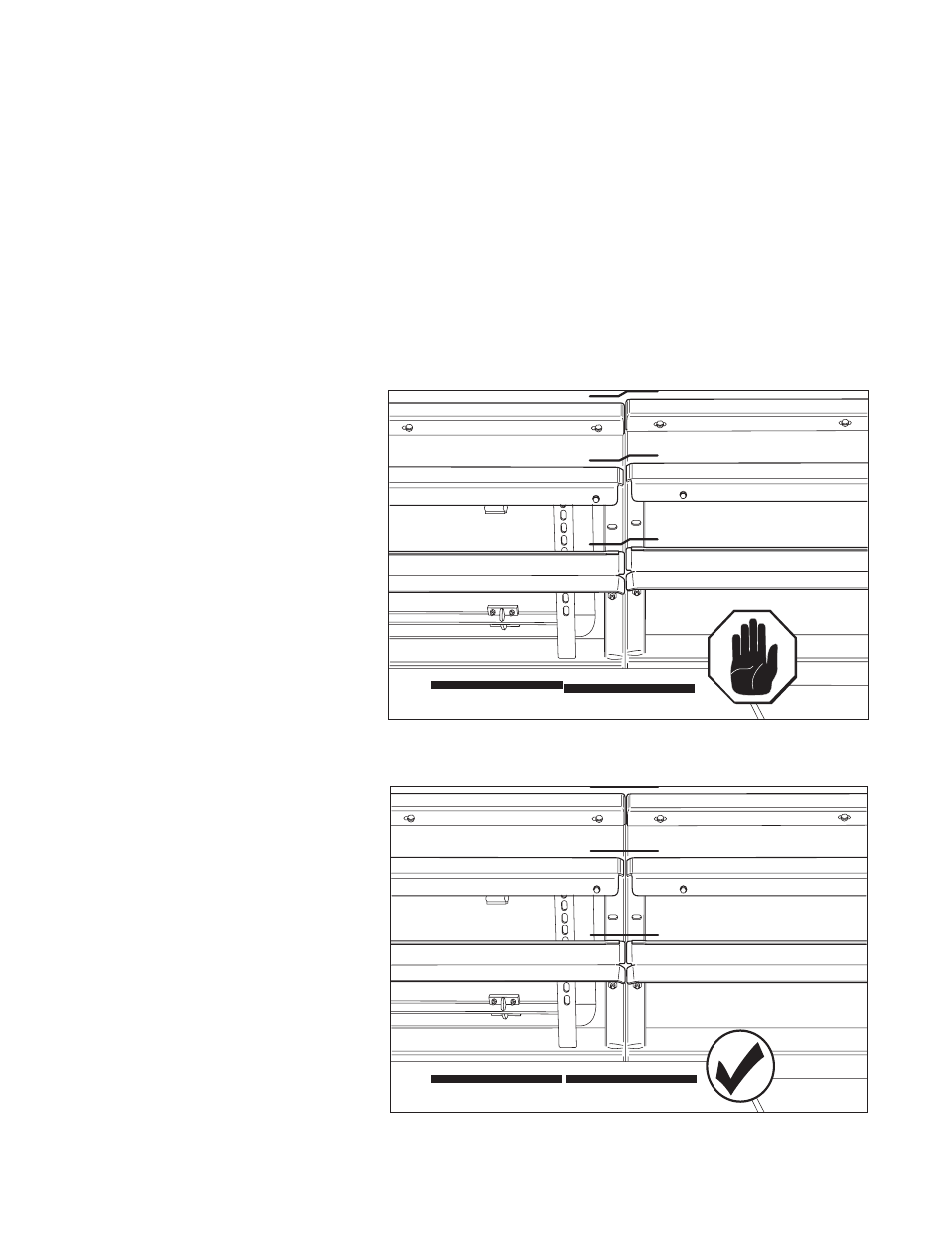

Tracks are Level
Tracks are not Level
Track Alignment
1. There are upper and lower
conveyor belt tracks.
2. Check the alignment of both sets
of tracks between each section
of the dishwasher.
3. Refer to the illustrations to the
right and verify the tracks are
level as shown.
4. Re-level the dishwasher sections
until the tracks are level.
5. Recheck the level of the conveyor
belt tracks.
6. Make any final adjustments by
loosening the track mounting and
adjusting as necessary.
7. The tracks must be aligned and
level before installing the
conveyor belt.
The conveyor belt is supported by tracks inside each section of the dishwasher. These tracks must be
level when the sections are joined. If the tracks are not level then the level of the joined sections should
be re-checked and adjusted so that the tracks are level. The track mounting bolts may be loosened and
a small amount if adjustment can be made. Make sure the dishwasher sections are level before adjusting
the mounting of the tracks.
