Operation, Installing spray arm assemblies (continued) – CHAMPION EEUCCW8 User Manual
Page 40
32
Operation
Operation
Locking
Slot
Locking
Slot
Release
Locks
Upper Spray Arm Assembly
Tab
prevents
spray arm
from
dropping
Tab
prevents
spray arm
from
dropping
Release
Lock
Upper Spray Arm Assembly
Locking Slot
Locking
Slot
Lock
the
Release

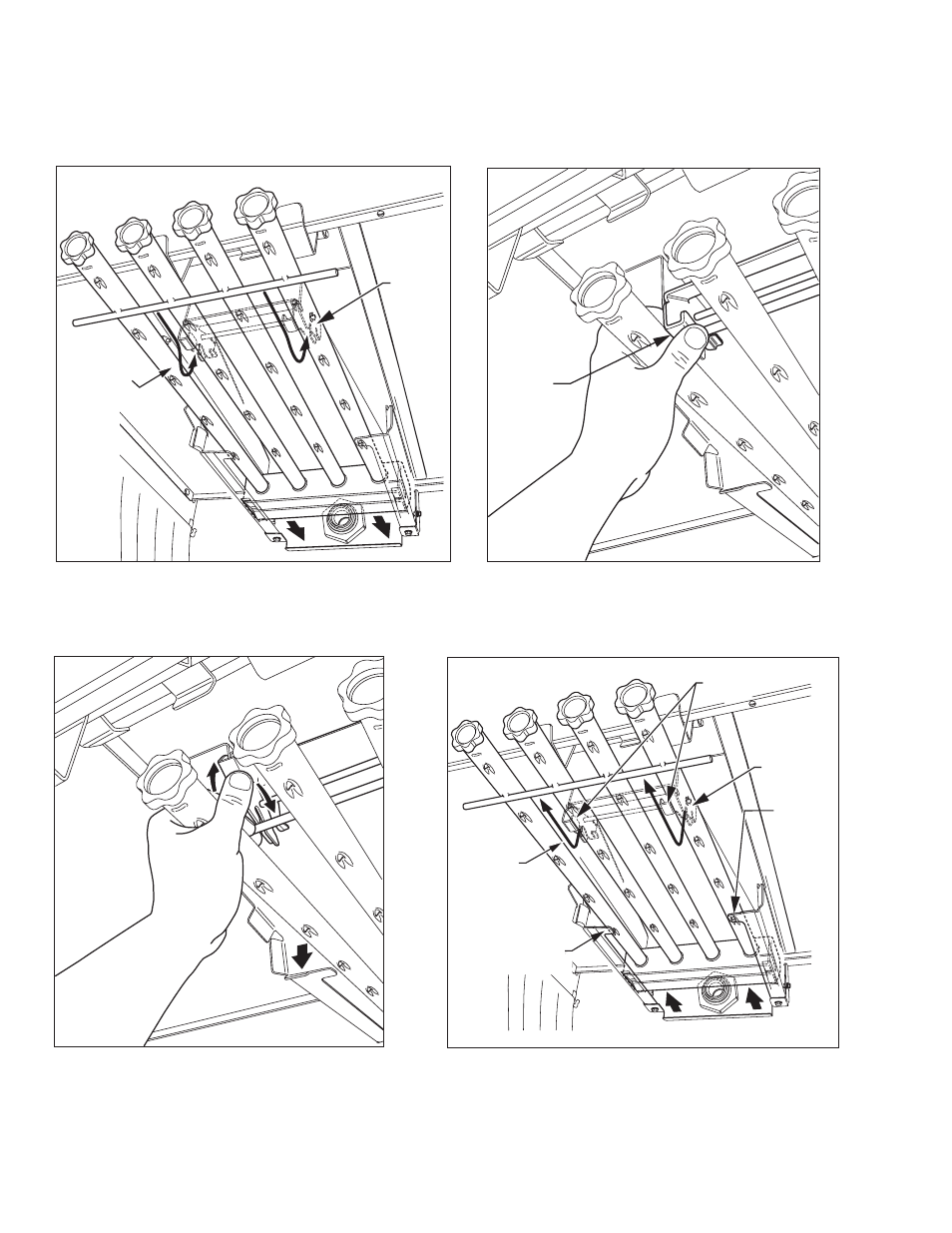

Push the Upper spray arm assembly into place.
Push the spray arm release down to lock the spray
arm assembly.
Push the release up to unlock the spray arm
assembly.
Pull the spray arm assembly out of the dishwasher.
Installing Spray Arm Assemblies (continued)
