Section Joint U-clips
1. Make sure the dishwasher hood and base
section joints have a section gasket
installed.
2. If the gasket is missing, then the sections
must be broken, a gasket installed, siliconed
and the sections bolted and leveled again.

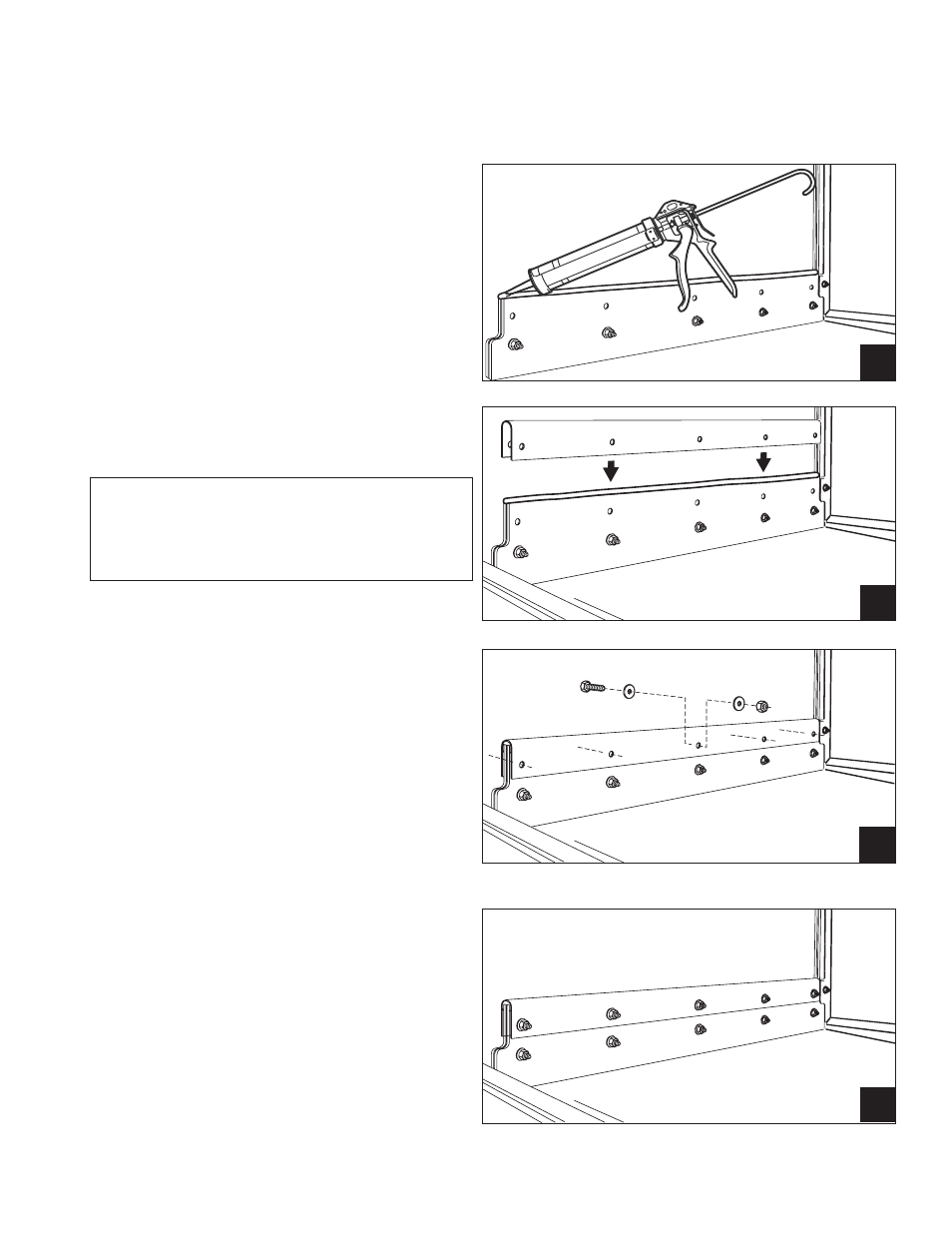

3. Refer to the illustrations to the right.
Apply a 1/2"/12mm bead of silicon at the
section seam.
4. Slide the U-clip over the seam and align
the bolt holes between the seam and the
U-clip.
5. Bolt the U-clip using 5/16-18 x 1"
bolts, washers and locknuts included in
the hardware kit.
6. Wipe any excess silicon that may have
squeezed out of the U-clip joint.
7. The U-clip is P/N 329758.
When the dishwasher sections and the tracks are
level then the dishwasher section joints inside the
dishwasher must be capped by a u-clip that is
specifically designed to seal the joints and prevent
water leaks between the dishwasher sections.
ATTENTION
The dishwasher section U-clips cannot be
installed before the section gaskets are
installed and the sections bolted together.
