13
Installation
Installation

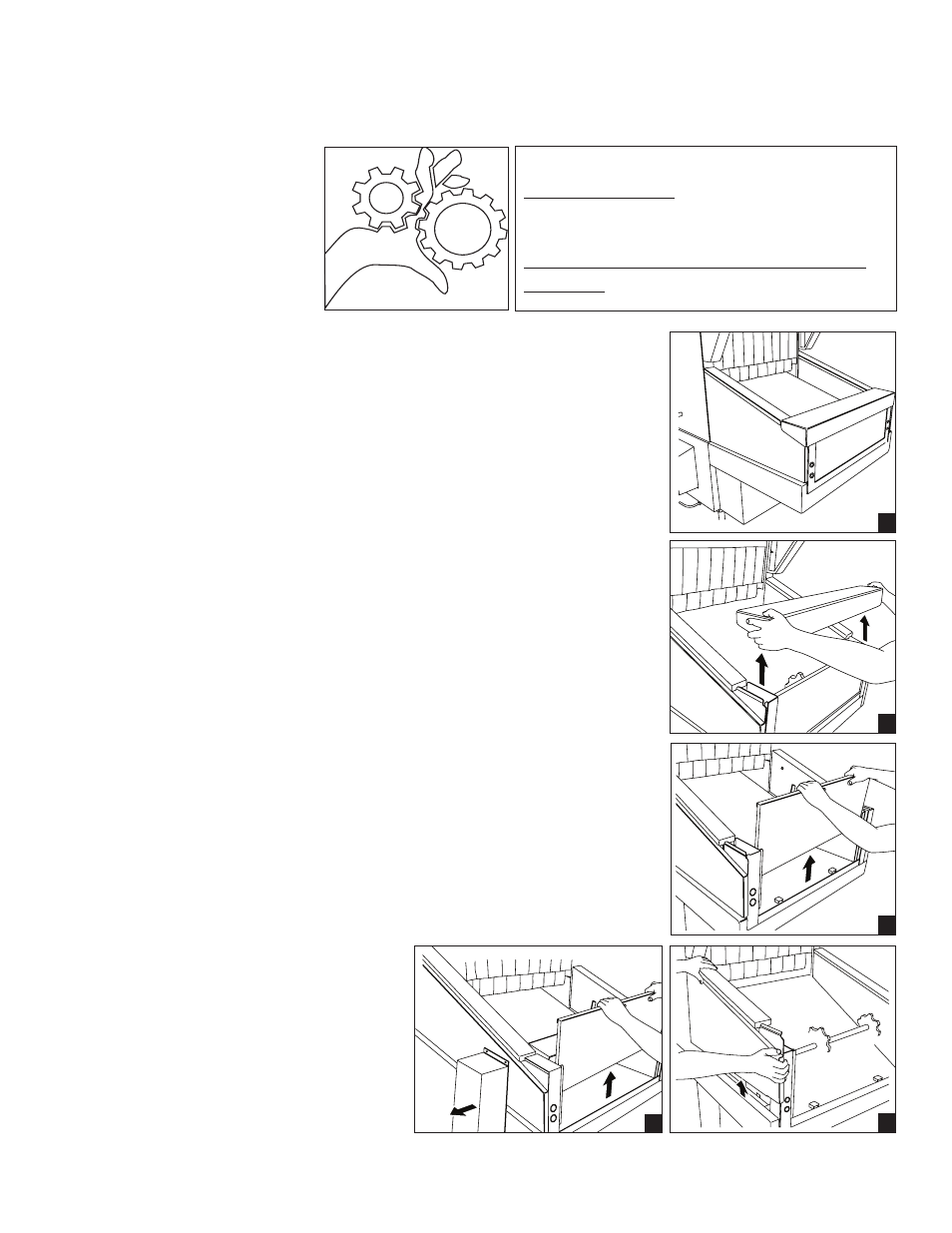

Assembling the Conveyor Belt
1
2
3
5
WARNING:
Moving Conveyor Parts may cause INJURY OR DEATH.
Keep hands and clothing clear of the conveyor when the
conveyor is moving.
USE EXTREME CAUTION WHEN THE CONVEYOR
IS MOVING.
1. Start at the unload end of the machine and note
the location of the top and side panels
2. Lift the top panel straight up and off the end of
load section.
3. Lift the end panel straight up. Note the guides
on the sides of the hood as you lift the end
panel up and off.
4. Lift the side panels of of the right and left sides
of the dishwasher load end.
5. Moving to the unload end of the dishwasher,
lift the end panel straight up and off the end
of the machine. Remove the bolts holding the
rectangular cover protecting the drive gear
assembly. Pull the cover off of the dishwasher.
6. Set the panels and covers aside and retain the
mounting hardware.
The load and the unload sections of the dishwasher
are equipped with removable panels which need to
be removed prior to assembling the conveyor belt.
4
