Installation
Installation
Plumbing Connections
1. The specific water requirements for the
installation of the dishwasher are listed on
the Plumbing and Electrical Diagram (P& E)
that was provided prior to the installation.
2. It is recommended that the Installation
Supervisor inspects the position, level and
alignment of the piping prior to making the
connections.

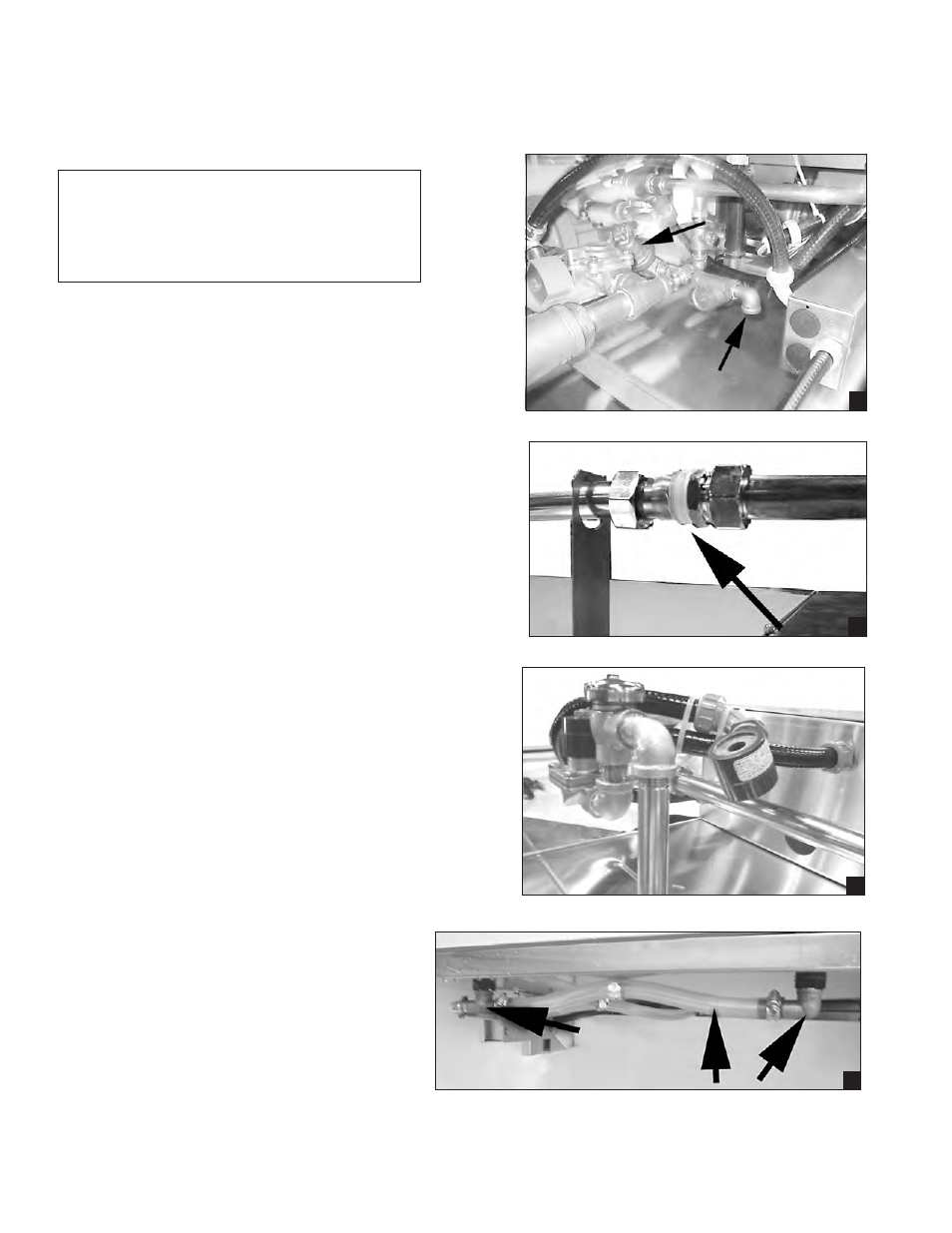

3. The main water supply connection is located
underneath the unload section of the
dishwasher adjacent to the pressure regulating
valve (PRV) as shown in (A).
4. The PRV must be adjusted to provide a
flowing pressure of between
20-22 PSI / 138-152 kPa.
5. Tighten the dishwasher fill piping compression
fittings located on the top of the dishwasher.
Use Teflon tape on the threads to ensure a
water-tight joint as shown in (B).
6. Remove the shipping ties that hold the fill water
solenoid valve coils and mount the coils on the
solenoid valve stems as shown in (C).
7. Assemble the flushing nozzle piping located
on the load-end of the dishwasher making sure
that the nozzles point towards the dishwasher
entrance as shown in (D).
ATTENTION
Plumbing connections should be made by
qualified personnel who will follow all local
plumbing, safety, and sanitary codes and
regulations.
