23
Installation
Optional Blower-Dryer Installation
1. The blower dryer comes in electric or
steam.
2. It ships on a separate pallet.
The vent cowl and mounting hardware are
included in the
accessories box and hardware
kit.
3. Lift the blower dryer off the pallet
with a forklift and place on the
end of the unload section.
4. If a forklift is not available, then
four (4) men are needed to lift
and install the unit manually.
5. Bolt the blower dryer in place using the
5/16-18 X 3/4" bolts, flat washers, and lock
washers from the hardware kit.
6. Fasten the vent cowl on the discharge end
of the blower dryer using the 1/4-20 plain
nuts, flat washers, and lock washers from
the hardware kit.

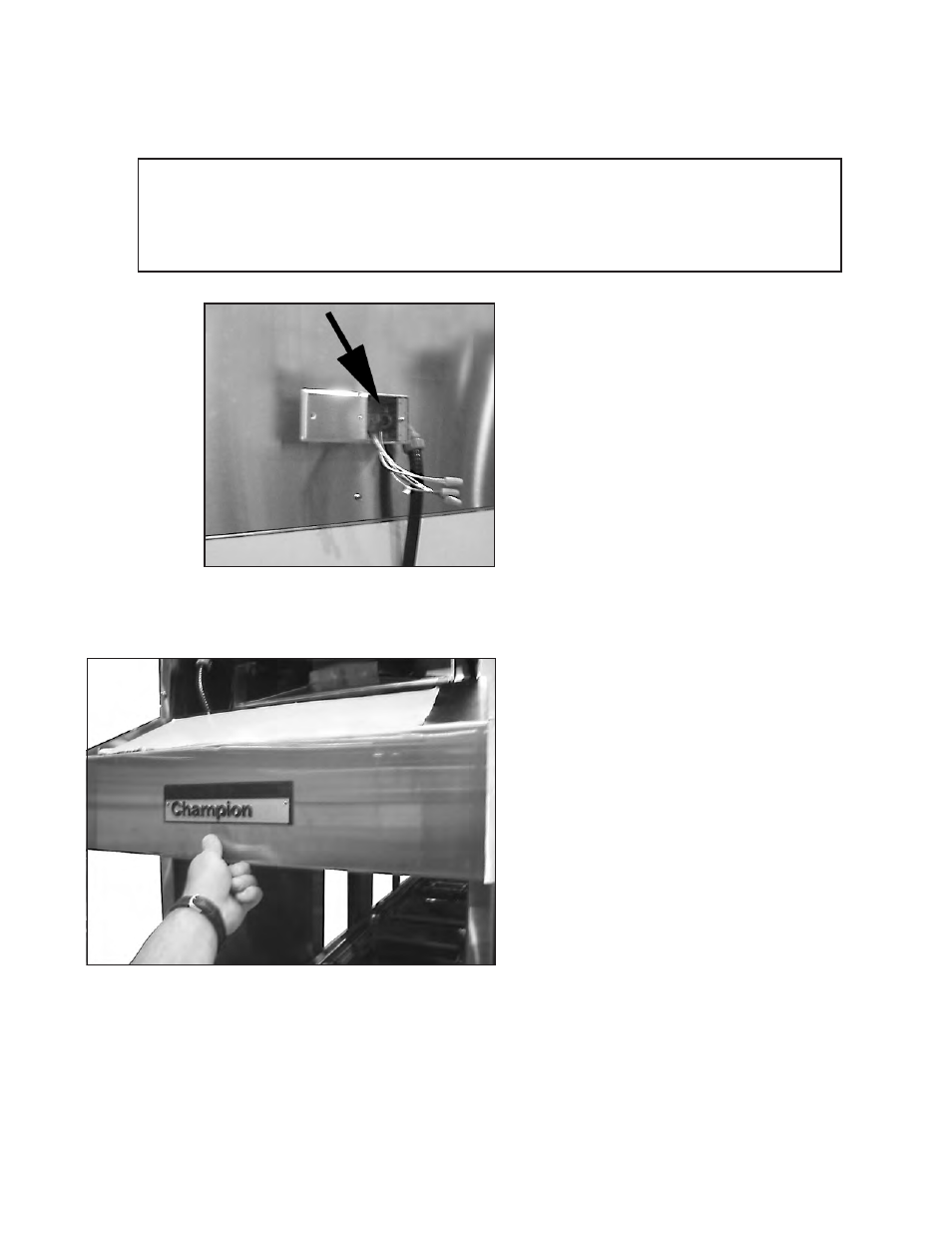

7. Connect the flex-tite conduit to the junction
box located at the rear of the dishwasher.
8. Match wire numbers in the junction box
and connect with wire nuts.
9. Close the junction box.
10. Install the cowl to the end of the
blower dryer.
FOR COMPLETE BLOWER-DRYER INSTALLATION INSTRUCTIONS
REFER TO THE BLOWER-DRYER SERVICE MANUAL, P/N 114316,
SHIPPED WITH THE BLOWER-DRYER ASSEMBLY
