16
Installation
Installation
1. Locate the conveyor belt drive assembly located
at the unload end of the dishwasher.

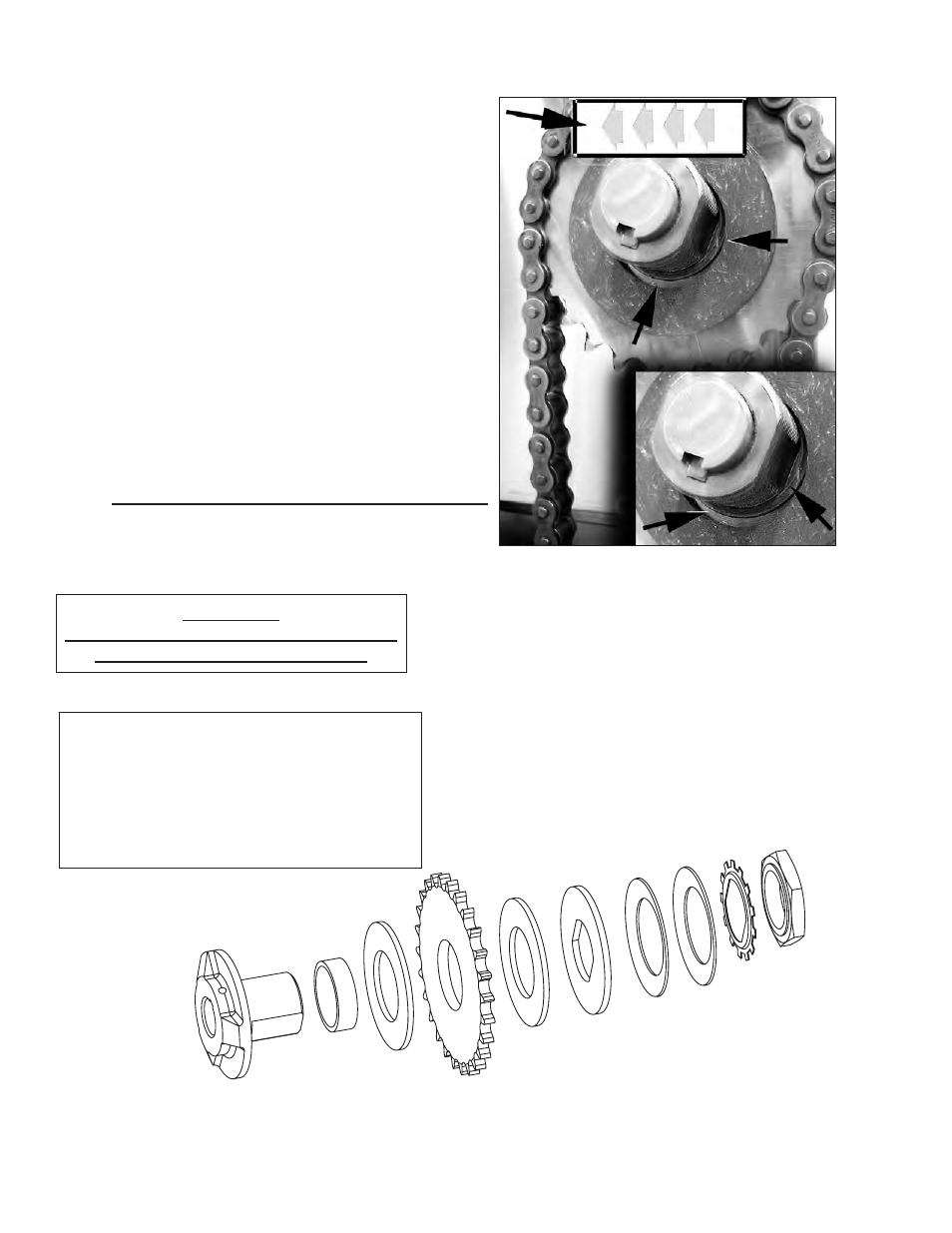

2. Refer to the photos on the right and note the
arrangement of the drive clutch components.
3. Locate the clutch kit included in the hardware
kit and install the components as shown in the
illustration below. Tighten the clutch retaining
nut.
4. Proper clutch adjustment is correct if a 185lbs.
person can stall the belt when safely pulling
against the moving conveyor belt.
5. NEVER LUBRICATE THE CLUTCH ASSEMBLY.
Adjusting the Conveyor Belt Clutch
ATTENTION
The ID of first clutch disk is larger than
the bore of the drive shaft.
Make sure the first disk rests on the shoulder
of the drive shaft to ensure correct clutch
assembly.
ATTENTION
CHECK THE BELT TENSION IN 3 WEEKS
AND RE-ADJUST AS REQUIRED.
