Operation
Operation
The top-mounted control panel contains the Power ON/OFF switch, mode selector switches and indicator
lights, stop switch and digital display temperature meters. The function of these controls are:
A Power Switch -
Turns power On and Off.
B Mode Switches and Indicators
Changes the conveyor speed and the wash system for 3 modes of operation:
Energy Saver Mode
Normal Mode
Fast Mode
C Stop Switch
Stops the conveyor.
D Digital Temperature Display Meters -
Displays the temperature in each wash tank and the temperature of the final rinse water.

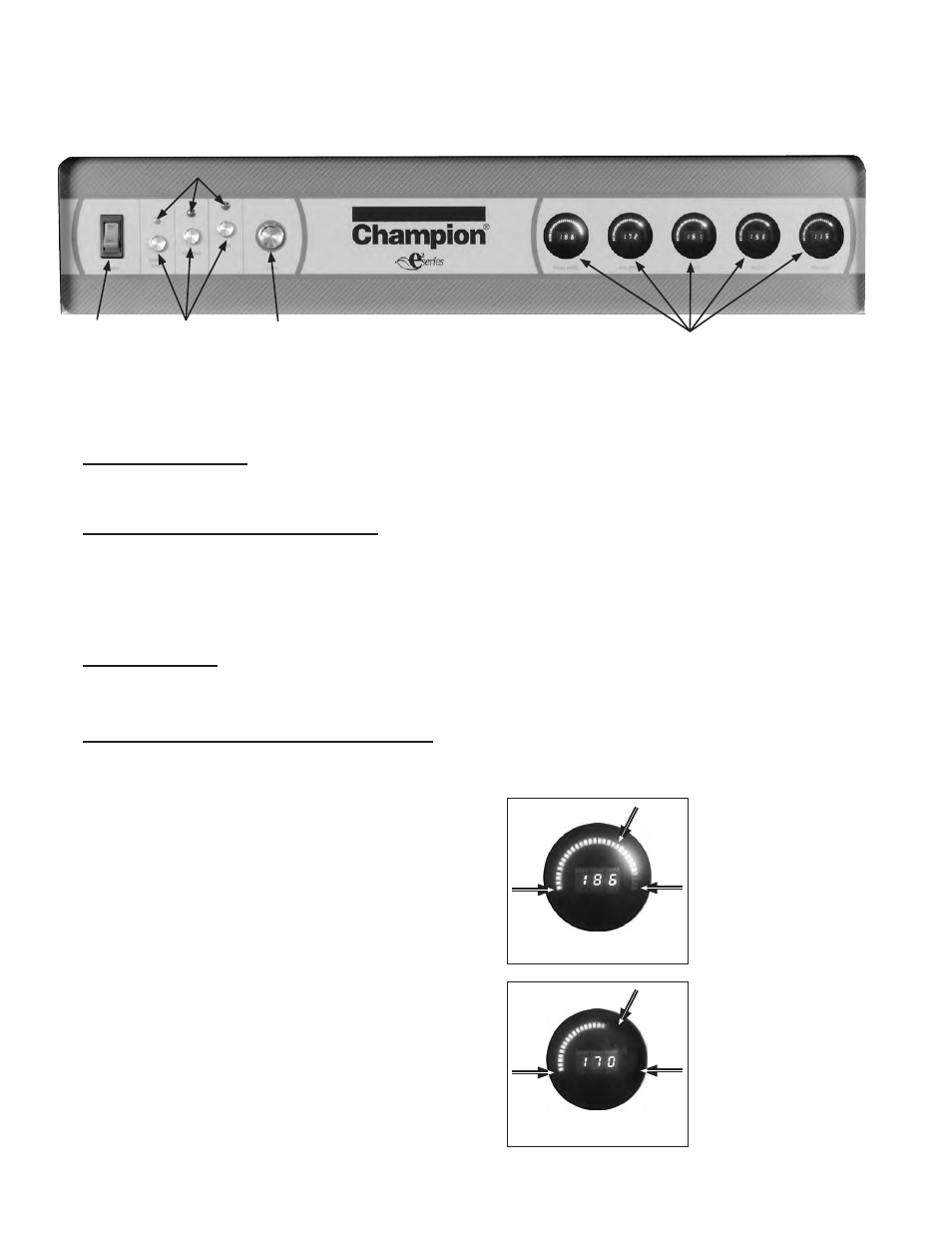

Control Panel Operation
Power
Switch
Stop
Switch
Mode
Switches
Mode Indicator Lights
Digital Temperature Display Meters
Right-to-Left (R-L)
Operation Shown
D A B C
The wash tanks and the final rinse temperatures are
numerically displayed and a colored bar around the
numbers creates a visual indication of the temperature.
1. When the color of the bar is yellow and green
then the water temperature is at or above the
minimum temperature required to operate the
machine.
2. When the color of the bar is yellow then the
water temperature is below the minimum
temperature required to operate the machine.
Wait until the temperature has reached the
proper operating temperature.
