Control Panel Mode Selection
1
2
3
4
5
6
7
8
Control Switches are located on the front of the top-mounted control cabinet.
The operator can preset a mode of operation or change the preset mode while the belt is moving.
1. Power Switch
2. Energy Saver Mode Selector Switch
3. Energy Saver Mode Indicator Light
4. Normal Mode Selector Switch
5. Normal Mode Indicator Light
6. Fast Mode Selector Switch
7. Fast Mode Indicator Light
8. Conveyor Stop Switch
To operate the dishwasher in the Energy Saver mode:
1. Push the Energy Saver Mode Selector Switch.
2. The Energy Saver Indicator will illuminate.
3. The conveyor belt will run.
4. Push the Stop Switch.
5. The conveyor belt will stop.
6. The Energy Saver Mode Indicator remains
illuminated.
To operate the dishwasher in the Normal mode:
1. Push the Normal Mode Selector Switch.
2. The Energy Saver Mode Indicator will go out.
3. The Normal Mode Indicator will illuminate.
4. The conveyor belt will run.
5. Push the Stop Switch.
6. The conveyor belt will stop.
7. The Normal Mode Indicator remains illuminated.
To operate the dishwasher in the Fast mode:
1. Push the Fast Speed Selector Switch.
2. The Normal Mode Indicator will go out.
3. The Fast Mode Indicator will illuminate.
4. The conveyor belt will run.
5. Push the Stop Switch.
6. The conveyor belt will stop.
7. The Fast Mode Indicator remains illuminated.
Note: Push the Power Switch OFF and all Mode Indicator Lights go out.
Push the Power Switch ON, then push a Mode Selector Switch to begin operation.

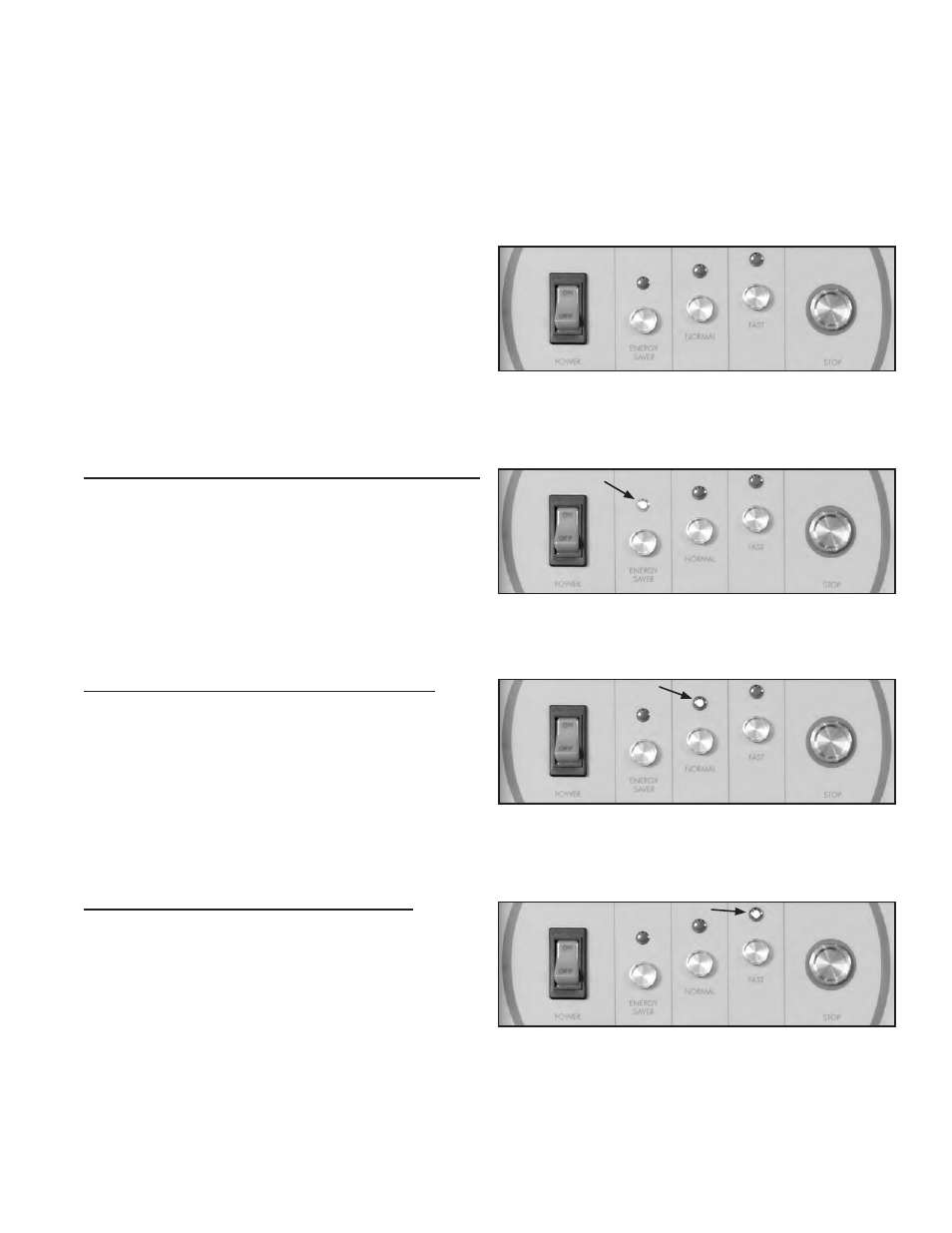

Power Switch is ON, no conveyor speed is selected.
Power Switch is ON, Energy Saver Mode is selected.
Power Switch is ON, Normal Mode is selected.
Power Switch is ON, Fast Mode is selected.
