14
The assembled belt should
form a complete loop.
Installation
Installation

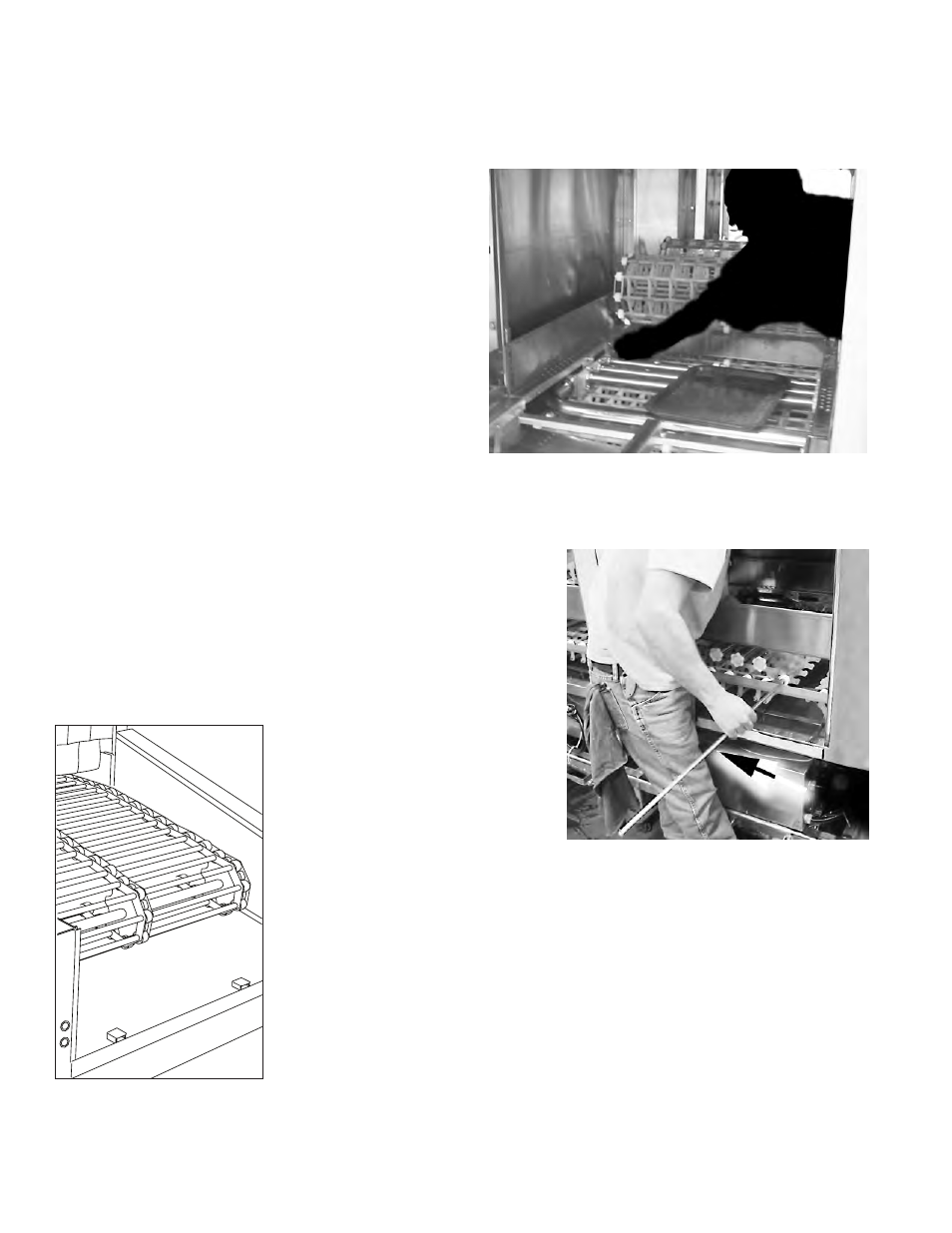

Assembling the Conveyor Belt
1. Start at the unload end of the machine and pull
the conveyor belt around the end sprockets
until approximately 1.5 feet/76.2 cm of belt
rests on the upper track of the dishwasher.
2. Pull a section of belt to the next section along
the upper track into the unload end.
3. Join the belt sections together by feeding a
conveyor rod through the links, spacers, and
rollers. Install a cotter pin on each end of the
rod to secure the assembly.
4. Use an assembled rod section on the belt as
a guide for the placement of the spacers, etc.,
continue this procedure until the conveyor belt
is assembled in a complete loop.
The conveyor belt may be shipped separately
from the dishwasher on pallets or it may be rolled
up inside of the dishwasher. In either case, the
installation is the same.
Roll the first section of conveyor belt
from the unload section toward the unload section.
Connect the conveyor belt sections with
a rod, spacers, and washers included
in the hardware kit.
