- 83 -

17.3.

Replacing the fuses

If after plugging to mains, a signal diode on moisture analyzer’s display does not
light up (lack of any reaction on the display), then possibly one of the fuses (or both)
is blown.

REMEMBER, before initiating any activities relates to fuse
replacement switch off the moisture analyzer, and make sure
the power cord of the moisture analyzer is unplugged from
mains!





A moisture analyzer MAX series
features two fuses.

Before replacing them unplug the
power cord from the socket located
at the back side of instrument’s
housing.

Tabular fuse ZKT 3.15A T4L
250V
protects moisture
analyzer’s electric circuits.

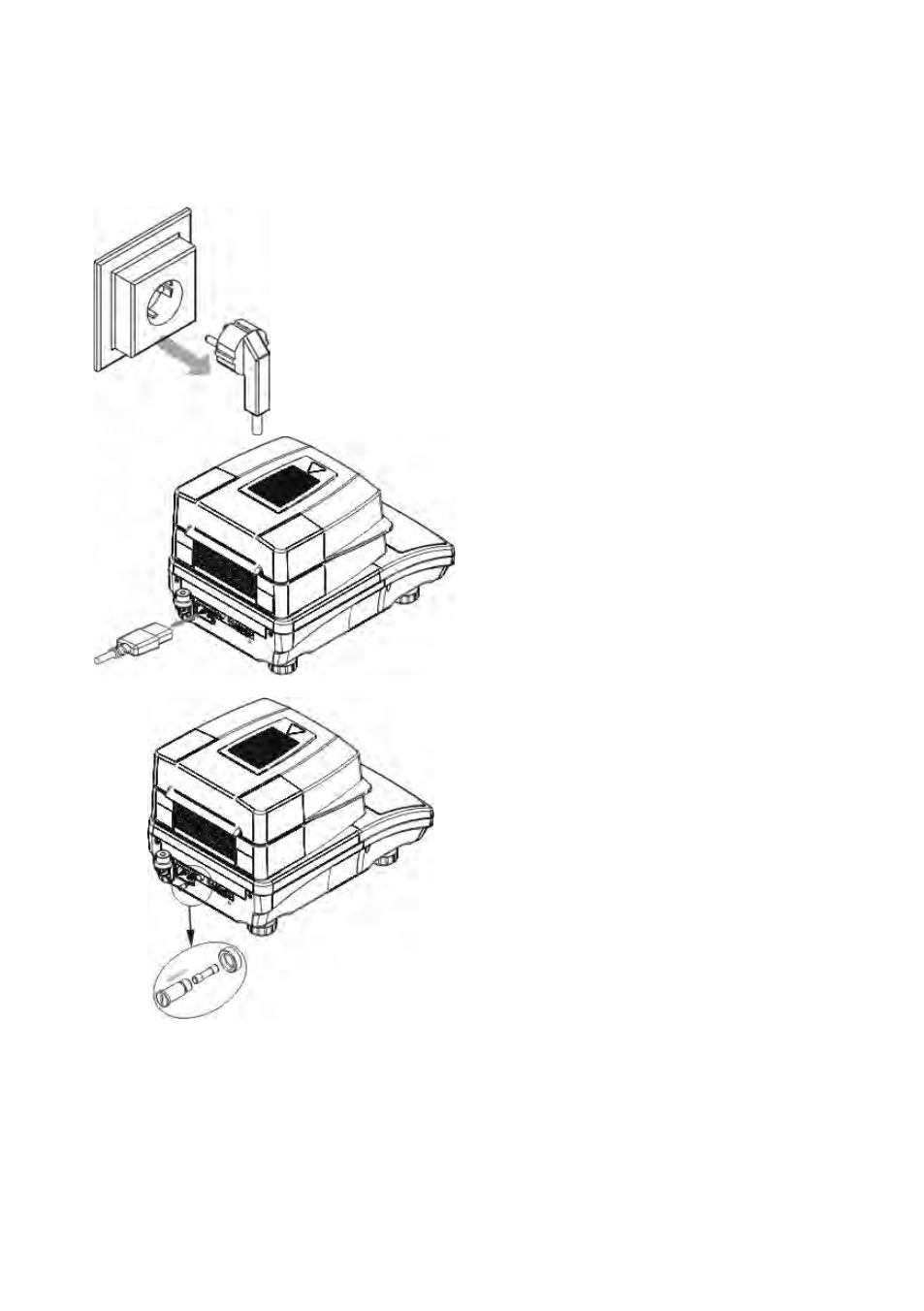

Fuse replacement procedure:

1. Unscrew the fuse base

from its mounting.

2. Take the fuse(s) out of

the fuse base.

3. Replace the fuse(s)

with new one(s).

4. Assembly the fuse

base featuring new
fuses into the
mounting.
