• The right red field – signals that the load on the pan is greater than
the maximum weighing threshold (Max threshold).

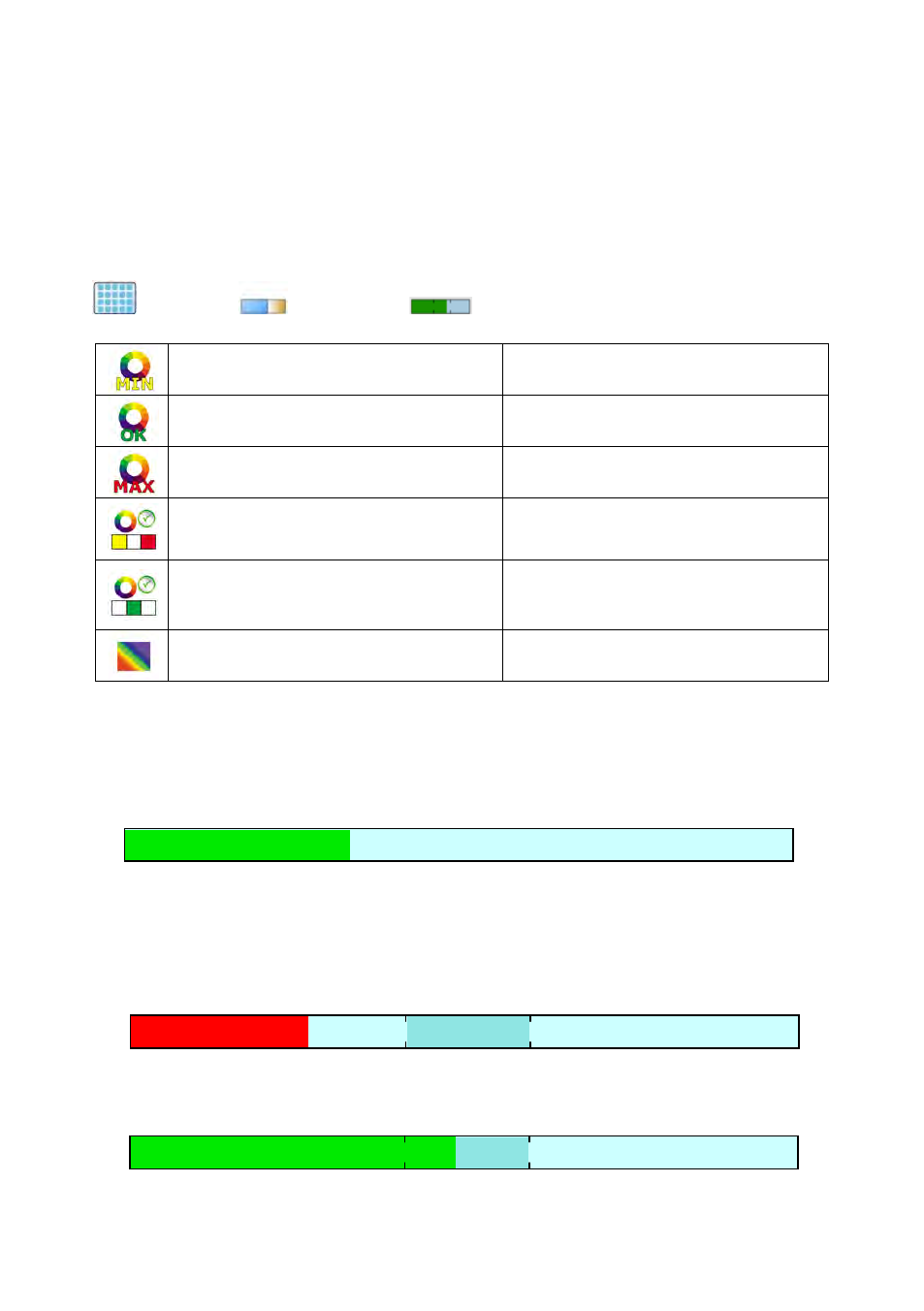

17.4.4. Bargraph type: „Linear”
Settings of “Linear” bargraph are accessible in submenu
“
Display / Bargraph / Linear”
:
Min threshold signalling colour
Colour selection for signaling MIN
threshold. 18 colours palette available.
OK threshold signalling colour
Colour selection for signaling OK
threshold. 18 colours palette available.
Max threshold signalling colour
Colour selection for signaling MAX
threshold. 18 colours palette available.
Min Max range background colour
Background colour selection for MIN,
MAX range of the bargraph.
17 colours palette available.
OK range signalling colour
Background colour selection for OK
range of the bargraph.
18 colours palette available.
Gradient
Enabling / Disabling filling effect
“Gradient” type.
Means of operation:
The bar graph represents in a linear way the measuring range of a scale.
In addition, the bar graph can indicate weighing thresholds MIN, MAX,
if they have been determined:
• Signalization of mass below the value set in MIN threshold:
• Signalization of mass within MIN and MAX values of thresholds:
