68

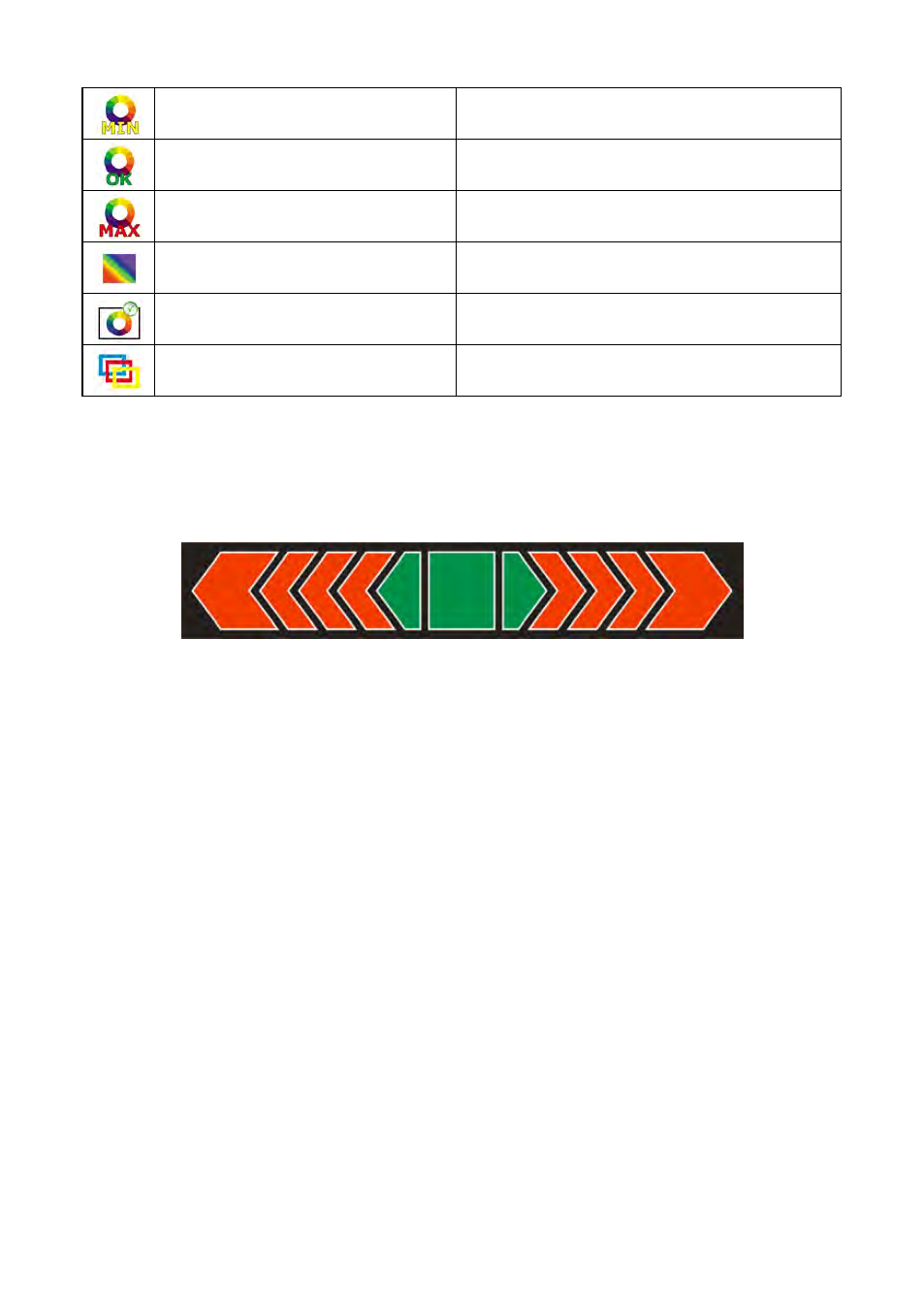

Min threshold signalling colour
Colour selection for signaling MIN threshold.
18 colours palette available.
OK threshold signalling colour
Colour selection for signaling OK threshold.
18 colours palette available.
Max threshold signalling colour
Colour selection for signaling MAX threshold.
18 colours palette available.
Gradient
Enabling / Disabling filling effect “Gradient”
type.
Background colour
Colour selection of a bargraph background.
18 colours palette available.
Frame colour
Colour selection of bargraph frame.
18 colours palette available.
Means of operation:
• The bargraph consists of 8 red fields and three green fields.
• The green fields signal weighings between MIN and MAX
threshold, where:
MIN
= the minimum threshold of acceptable weighing - LO
MAX
= the maximum threshold of acceptable weighing - HI
• If a measurement is over the MIN (to the value of 1/3 of MIN-MAX) the
green field with a triangle on the left is visible. If the measurement is
between 1/3 and 2/3 of MIN-MAX the rectangular green field is visible.
If the measurement is between 2/3 of MIN-MAX and MAX a green field
with a triangle on the right is visible.
• If the mass value is below the MIN threshold red fields with red arrows
on the left are visible. The lower mass value the more red arrows are
visible.
• If the mass value is over the MAX threshold red fields with red arrows
on the right are visible. The higher mass value the more red arrows
are visible.
Thresholds MIN and MAX are on the borders between red and green
fields.
