Contents and general safety instructions
XV
Festo GDCP−SFC−LACI−IO−EN en 0812NH
Term / abbreviation
Meaning
Positioning record
Positioning command defined in the position set table, consisting of
target position, speed, acceleration and other values.
PZ (= Project Zero point)
Project zero point, see section 1.5.
REF (=REFerence point)
Reference point, see section 1.5.
Reference run (homing)
See overview of measuring reference system in section 1.5.
Reference switch
Proximity sensor used for defining the reference point.
The integrated homing switch must not be moved in DNCE−...−LAS and
DFME−...−LAS (exception: minimum offset as described in section 6.4.3).
Software end position
See overview of measuring reference system in section 1.5.
Teaching
Accept an actual position in the position set table, or as axis zero point,
project zero point, or software end point. The desired position can be
approached in jog mode.
Tool load
For example: the mass of a gripper attached to the piston rod (or the
front plate) of the drive (including mounting elements). The tool load
applies to all positioning records, see Fig. 0/1
Tab. 0/1: Index of terms and abbreviations
1
2
3
1
Tool load
2
Applied load (Additional load)
3
The total of
1 and 2 : See under Effective load" in the operating instructions
for the drive.

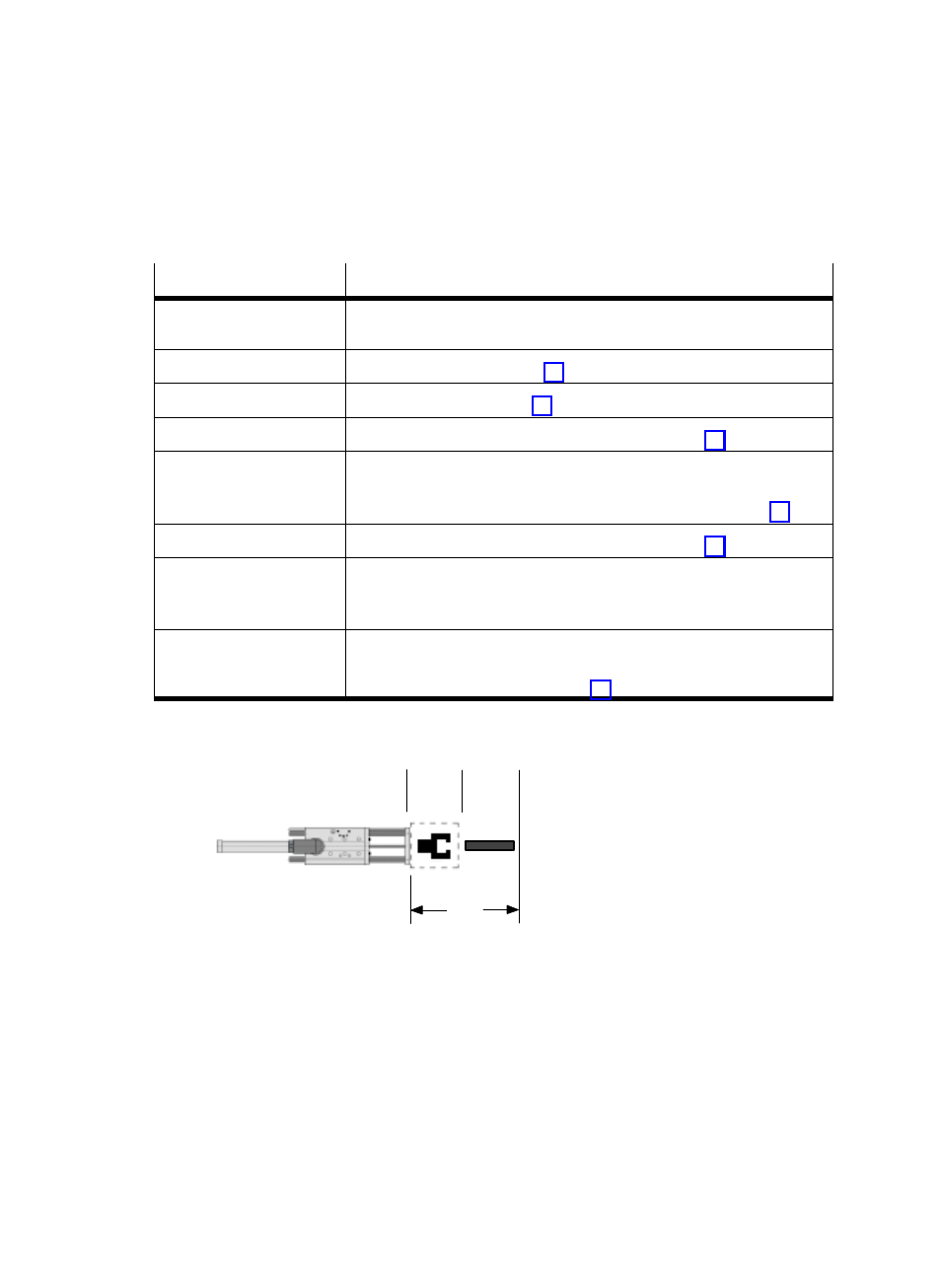

Fig. 0/1:
Tool load and applied load
