Using Command Console 3-43
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: d-ch3 Using Command Console.doc Last Saved On: 12/5/00 10:20 AM
In addition an EMU icon in the lower, right corner of the Storage window
indicates a subsystem’s environmental condition. The EMU icon displays a
yellow triangle with an exclamation mark when there is an environmental
problem, such as a fan failure.
Double-clicking on the EMU Icon displays the controller’s Environment
property sheet (Figure 3– 39), which shows main cabinet and UPS status. In
this example, the triangle next to A/C power is abnormal indicates a UPS
failure.

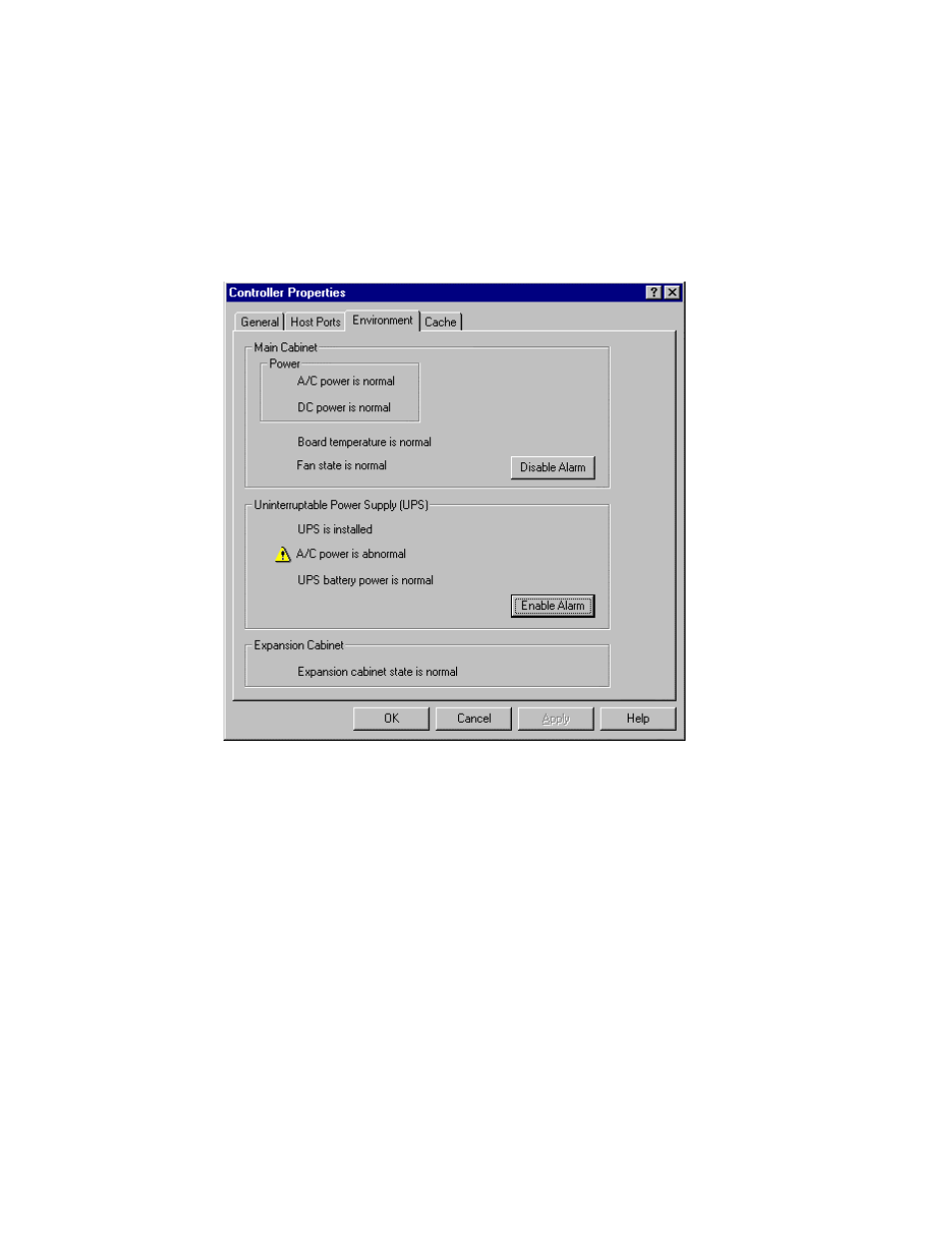

Figure 3-39. Environment tab
