2-16 Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: c-ch2 Installing and Setting Up the Command Client.doc Last Saved On: 12/5/00 10:31 AM
6. Confirm and create the Virtual Disks 1 and 2. The Final Virtual Disk
Wizard window, step 6 (Figure 2-12), recaps the choices you have made
in steps 1 through 5. If you are satisfied with your choices, click Finish.

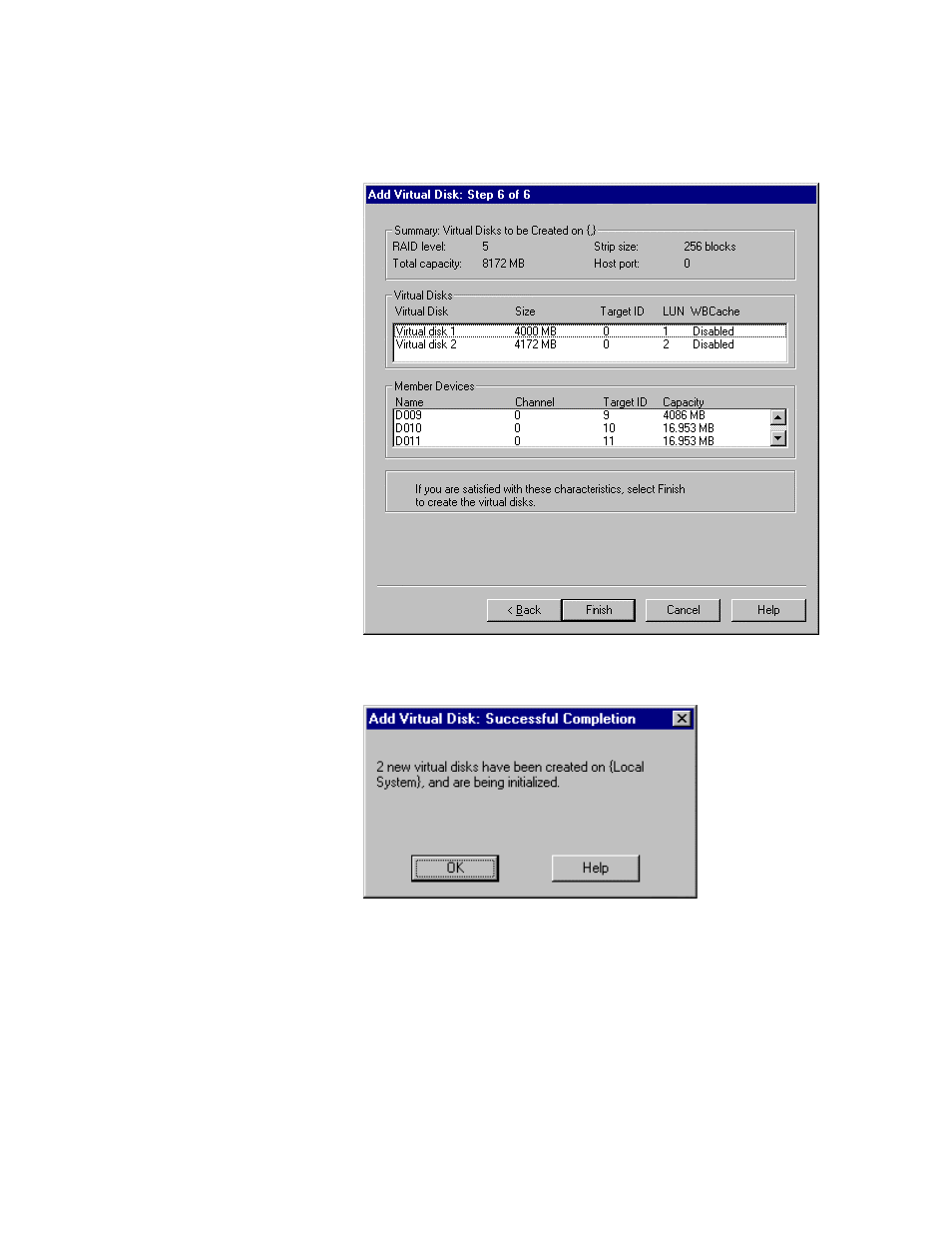

Figure 2-12. Virtual disk wizard step 6
When you see the Successful Completion dialog box (Figure 2-13), click OK.
Figure 2-13. Successful completion dialog box
